Teflon Coating Spray Bag Filter/PTFE Membrane Dust Filter Bag

Teflon Coating Spray Bag Filter/PTFE Membrane Dust Filter Bag1. long work life2. High dust collection efficiency 3. Many types of material can suit for many industry and dedusting casesProduct DescriptionFilter bag is the core of the dust filter com

Technical Feature

  • Tianjin, China
  • 20000 Pieces Per Month
  • L/C, T/T, D/P, Western Union, Paypal, Money Gram
  • PE
  • Synthetic Fiber
  • Non-Woven Polyester Fiber
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$5~25

PRIMARY PARAMETERS

Filtration Grade
ULPA Filter
Filter Bag Sectional Shape
Flatbag
Filter Bag Environment
High-Temperature
Cartridge Installation
Vertical Lifting
Product Name
PTFE Fabric Cement Industry Dust Collection Filter
Product Application
Industry Dust Collection Filter Bag
Filtration Direction
Surface Filter
Diameter
115 - 200 mm
Length
2000 - 9000mm
Dust Cleaning Type
Pulse Jet Clean
Working Temperature
130 - 260 Degree
Short Time Working
280 Degree
Warranty
1years From The Date of Load on Board
Construction
Needle Felt
Trademark
CNP
Transport Package
Carton
Specification
custom-made
Origin
China, Tianjina
HS Code
59114000

DETAIL DESCRIPTION

Teflon Coating Spray Bag Filter/PTFE Membrane Dust Filter Bag

1. long work life
2. High dust collection efficiency
3. Many types of material can suit for many industry and dedusting cases

Product Description

Filter bag is the core of the dust filter components. The filter bag has the strict requirements on design, filter material cutting, woven technology etc. These requirements are very important for the normal operation of the bag filter and convenient maintenance, and it is great significance to enlong the service life of the filter bag.

FILTER BAG FUNCTION

When the dust gas through the filter bag. The dust will be block on the filter bag surface. The clean gas will pass away. So we can say that,The filter bag is the core of the dust filter. Or, you can consider it as the lung in our body.

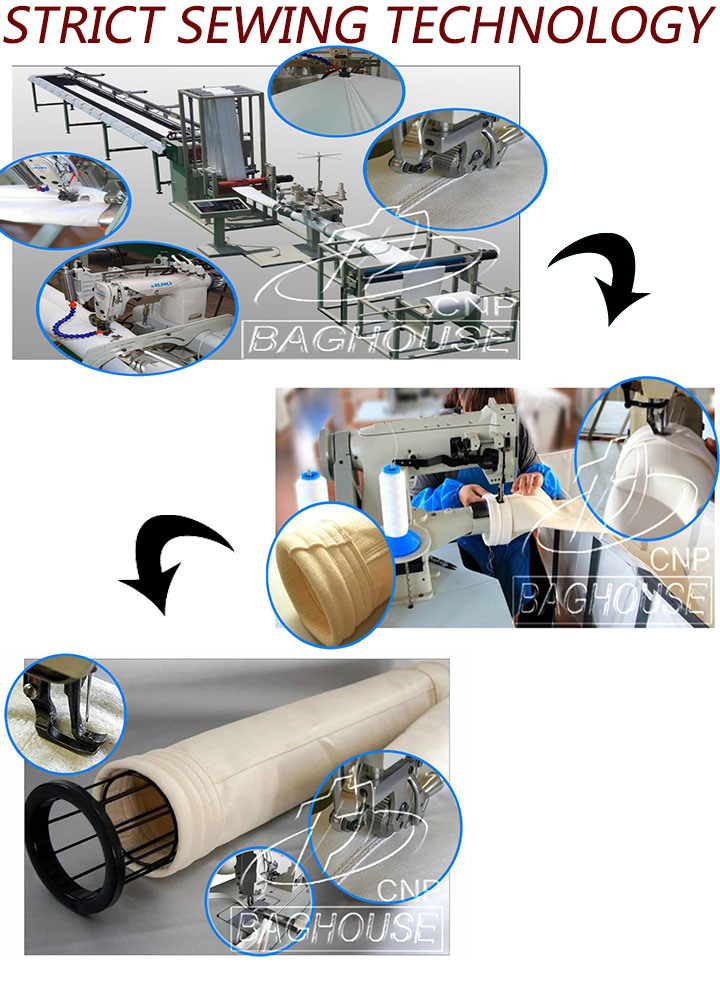

FILTER BAG REQUIRED STRICT SEWING TECHNOLOGY

The filter bag has the strict requirements on design, filter material cutting, woven technology etc. These requirements are very important for the filtration operation, maintenance and even the service life of the bag filter.

Please see our  picture poster as following:Teflon Coating Spray Bag Filter/PTFE Membrane Dust Filter Bag

FILTER BAG SPECIFICATION


The diameter of the filter bag should around 115 mm diameter to 200mm diameter.  The filter bag length should 2000 - 9000mm, the specifications of the commonly used filter bag is 125 - 170 mm diameter,  2000 ~ 6000mm length.

The oval, flat, envelope and support ring types of filter bag, please be sure to enquiry for us with detailed information.

Teflon Coating Spray Bag Filter/PTFE Membrane Dust Filter Bag

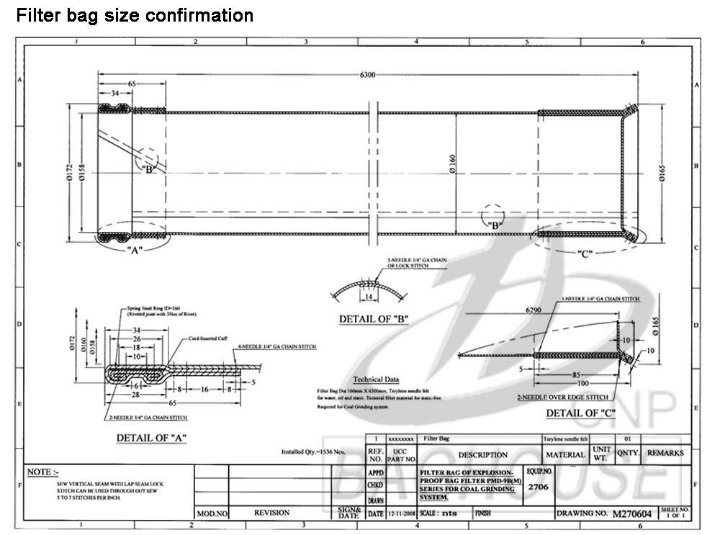

First of all, we need to confirm the detailed size of filter bag with our customer. After received your confirmation or agreement, we should begin for processing. If the drawing can not clearly or need filter bag sample to trail installment, we should provide the confirmed size filter bag sample before the purchase order processing.

Teflon Coating Spray Bag Filter/PTFE Membrane Dust Filter Bag

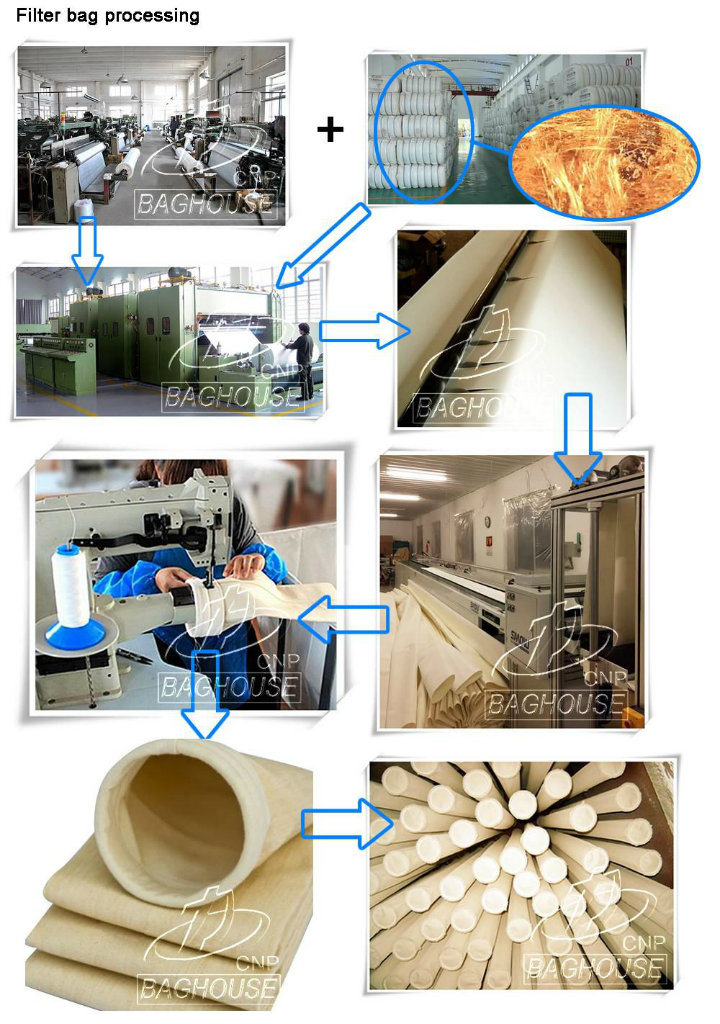

After then, we should begin to processing. We will make the filter fabric first. After then, we will sewing the filter fabric into the filter bag. For more detailed information, please reference the above processing picture.


Teflon Coating Spray Bag Filter/PTFE Membrane Dust Filter Bag

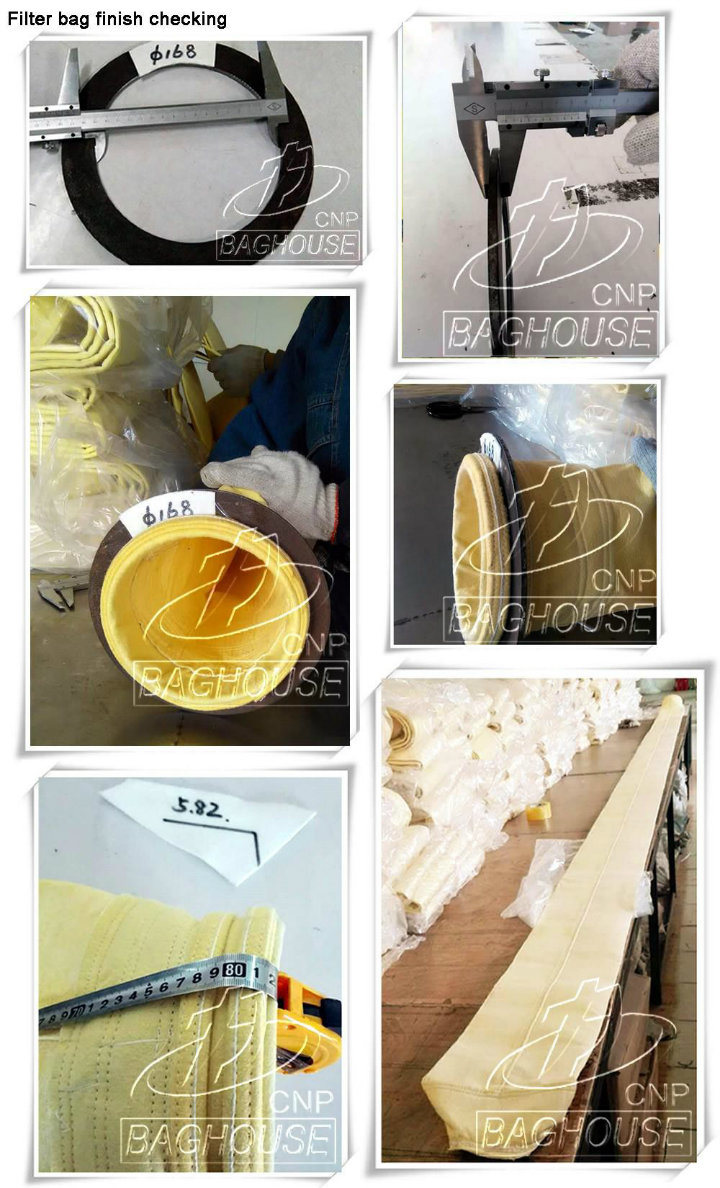

When we finish the manufacture, the filter bag should begin to rechecking. As you know, even if one filter bag broken. It will be the 100% result for the dust filter equipment bad working. So, it is our the most important step for all. We must assure it can work correctly 100%. Not 99.9 or 99.99%. We must assure it 100% correctly. We must assure it 100% corrctly!. The important things three times....

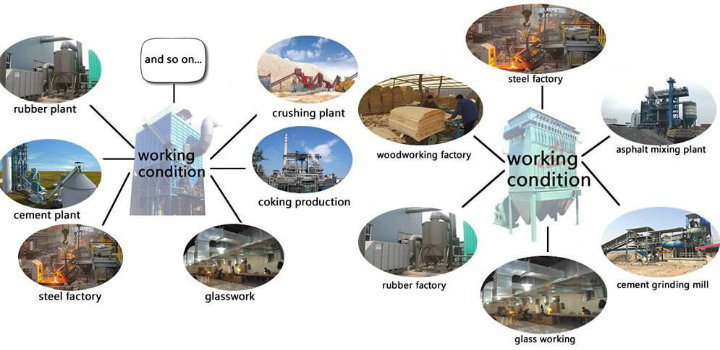

Working occasion

Please see the following working circumstance. The filter bag is often used in dust filter equipment and replace the filter bag in dust filter equipment. So, please reference the dust filter (dust collector) working occasion. Please be sure to inquiry us by following e-mail table directly. Hope that we can give you more professional suggestion for reference.

Teflon Coating Spray Bag Filter/PTFE Membrane Dust Filter Bag



Filter bag materialWorking temperatureChemical propertiesApplication 1  Application 2
Polypropylene needle feltup to 90 degreeGood for Acid and Alkali gasGrainHigh chemical gas and less temperature
Polyester needle feltUp to 130 degreeGood for Acid and nomal for AlkaliEvery Dust CollectionTemperature lower than 130 degree
Acrylic needle feltUp to 130 degreeGood for Acid and Alkali gasEvery Dust CollectionChemical stronger than polyester suitalbe
Nomex needle feltUP to 200 degreeGood for Acid and nomal for AlkaliAsphaltCement dust
PPS (Polyphenylene Sulphide) Needle feltUp to 190 degreeGood for Acid and Alkali gas. Bad for OxygenCoal fired dust gasSulphur
P84 (Polyimide) Needle felt Up to 240 degreeGood for Acid and Alkali gasIncinerationTemperature lower than 240 degree
PTFE (Polytetrafluoroethylene) needle feltUp to 260 degreeGood for Acid and Alkali gasMixed Chemical gasTemperature lower than 260 degree
Glass fiber woven bulk yarnUp to 280 degreeGood for Acid and Alkali gasCement kilnCoal fired dust gas
Glass fiber mixed needle felt Up to 280 degreeNomal for Acid and Alkali gasAcid gasTemperature lower than 280 degree



Company informant

CNP Co., Ltd. was founded in 2008, specializes in the field of air pollution control and bag filters. Including engineering design, planning, consulting, equipment research and development, manufacturing, sales, installation and commissioning, as well as production and services.

Based on the high starting point, CNP Co., Ltd., with a positive and upward pioneering spirit, will further create brilliancy as to technological innovation, intellectual property rights and independent brand strategy.



Teflon Coating Spray Bag Filter/PTFE Membrane Dust Filter Bag
