FORST Filtration Equipment Industry Dust Extraction System:

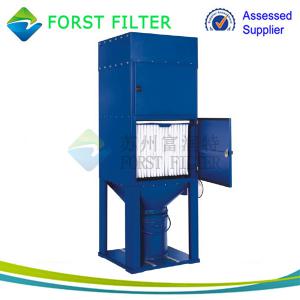

Introduce:SFF-MC cartridge pulse dust collector
Characteristics:
1.The introduction of advanced technology at home and abroad;
2.Micron cartridge filter to create a clean space;
3.High collection efficiency;
4.To facilitate operation and maintenance;
5.Suitable for a variety of independent or more of the middle point of the dust fallout.
Structure:
The main structure of the unit body by the equipment,filtration segment,paragraph fan,pulse valves above the drum unit,electrical control devices,pulse controller,set above gray parts.
Working Principle:
Will be independent of the dust removal unit placed between the corresponding configuration and cleaning air duct cover and dust collector connection,plug the power pass to open the fan button,the source of dust through the air from the dust cover cleaning,air duct,into the air entering the cabinet,care due to the sudden flow sheets,flow suddenly reduced by the large particle powder in its self-respect to the role of dust in air separation and settlement to Sheng ash drawer,and the remaining particles as a result of the sieve cartridge filter,collision, hanging hook, electrostatic such as the role of being stranded at the filter wall,purified air discharged from the fan by exports.The air purification unit can be directly recycled indoor emissions,non-ventilation of heat (cold) damage.The use of automatic pulse cleaning,cleaning process with no downtime.As a result of pulse cleaning,the user-owned gas source required.
Application:
Chemical pharmaceutical,food processing,metallurgy,casting,carbon materials,mechanical processing,building materials industry,mixers,ingredients,vibration screen,grinder,weighing,such as dust purification.
Technical Parameters:
| Model specifications | Cleaning methods | Pneumatic dust-ching Kgf/cm2 | Air volume fan to deal with m3/h | Fan total pressure Pa | Filter filter area m2 | Filtration efficiency% >3um | Fan Motor power KW | Overall dimensions L*W*H(mm) |
| SFF-MC | Automatic | 5~7 | 700~850 | 2100~1900 | 5 | 99.9 | 1.5 | 600*600*1600 |
| SFF-MC | Automatic | 5~7 | 1500~1700 | 1600~1200 | 13 | 99.9 | 2.2 | 700*800*1700 |
| SFF-MC | Automatic | 5~7 | 1850~3100 | 2900~2500 | 18 | 99.9 | 3.0 | 800*850*1800 |
| SFF-MC | Automatic | 5~7 | 2200~4100 | 3200~2800 | 30 | 99.9 | 4.0 | 800*900*1950 |
| SFF-MC | Automatic | 5~7 | 3800~6300 | 3100~2600 | 40 | 99.9 | 5.5 | 970*1050*2020 |
| SFF-MC | Automatic | 5~7 | 4900~7900 | 3000~2500 | 54 | 99.9 | 7.5 | 1250*1100*2800 |
