Parameter :
-----------------------------------------------------------------------------------------
| MODEL | YT-S-017 | YT-S-017 |
| Ozone production | 20g/h | 30g/h |
| Ozone concentration | 80-100mg/l | 80-100mg/l |
| Gas source | Natural air | Natural air |
| Cooling | Air+water cooling | Air+water cooling |
| Cooling water | 0.2t/h | 0.2t/h |
| Cooling water | <30 degree | <30 degree |
| Inner oxygen generator purity | 93+-3% | 93+-3% |
| Oxygen production | 4LPM | 6LPM |
| Power | 3800w | 3980w |
| Dimension | 55*40*133cm | 55*40*133cm |
| Net weight | 70kg | 80kg |
| Frequency | 110v/220v/230v 50hz/60hz | 110v/220v/230v 50hz/60hz |
| Technology | Corona discharge | Corona discharge |
| Ozone cell | Quartz tube | Quartz tube |
| Ozone box | 304 stainless steel | 304 stainless steel |
| Lifetime | 5-8 year | 5-8 year |
| Warranty period | 1 year | 1 year |

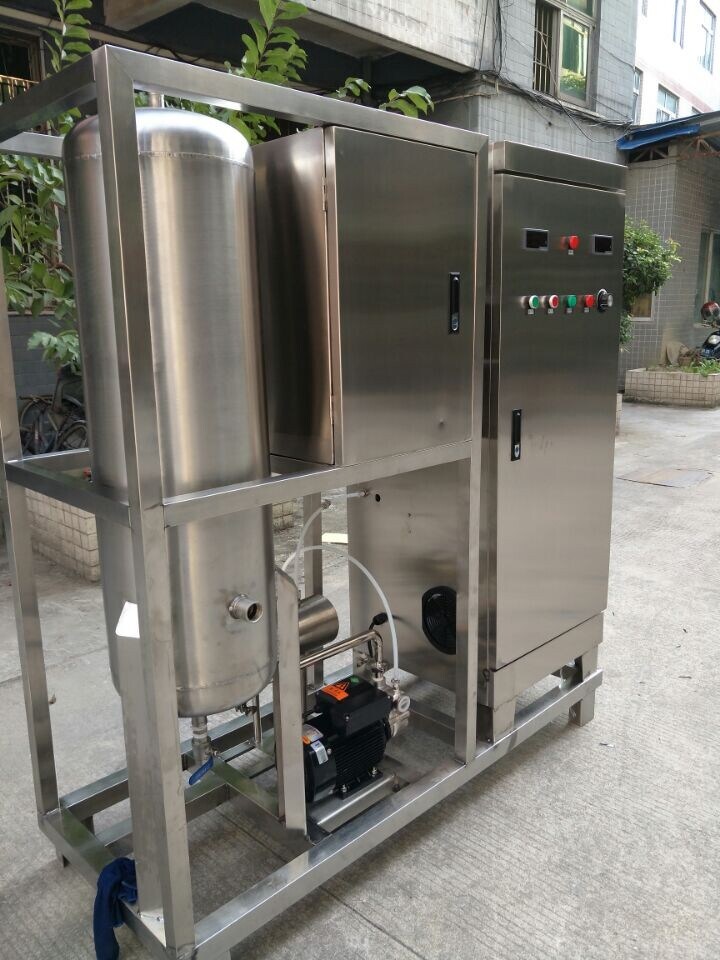

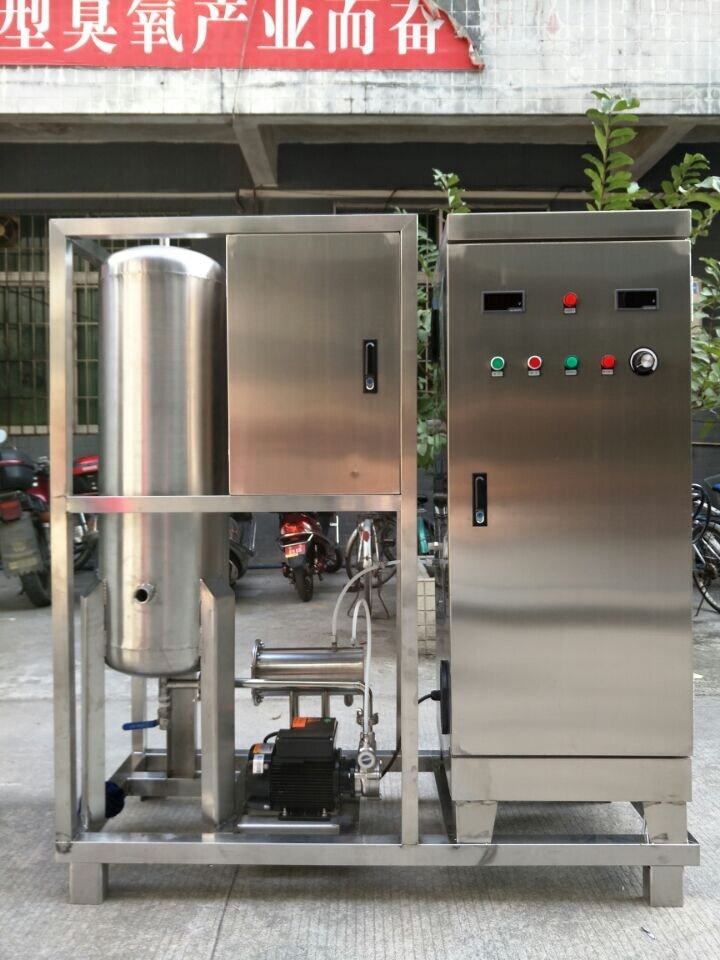

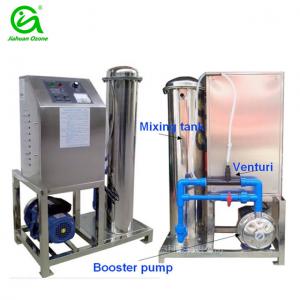

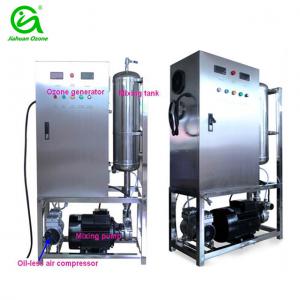

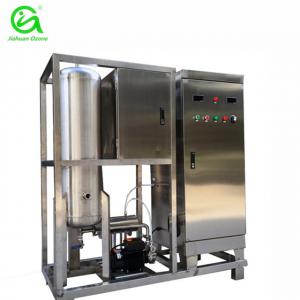

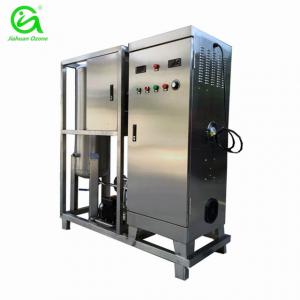

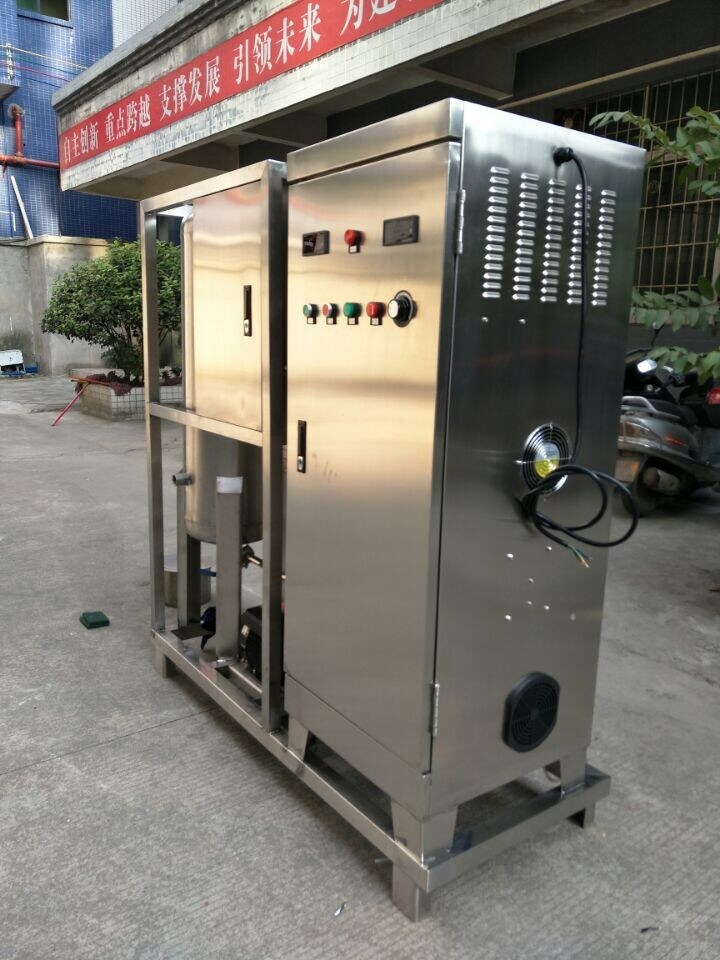

| Construction | A:Inner oxygen generator B:Inner ozone cell C:Inner condenser D:Inner ultrafilter and dryer E:inner air compressor F:Inner circuit board G:Automatic drain valve H: outer mixing pump |
Appliancation :
-----------------------------------------------------------------------------------------
Benefits of Ozone Treatment :
• Ozone removes color and odor completely
• Ozone disinfects the water thoroughly from micro organisms such as bacteria, algae, fungus, virus etc
• Ozone treatment drastically reduces BOD and COD
• Removal of organic and inorganic matter
• Removal of micro-pollutants, such as pesticides
• Enhancement of the flocculation/ coagulation, decantation process
• Oxidatioin of metals and non-metals such as iron, arsenic, manganese, hydrogen sulphide and all organic matter.
How ozone helps in waste water treatment ?
• Colour Removal - Color is formed by heavy phenol like compounds that have conjugated carbon/ carbon double bonds. Ozone is attracted to break organic double bonds. As more of these bonds are eliminated , the color disappears.
• Removal of Heavy Metals - Ozone oxidizes the transition metals to their higher oxidation state in which they usually form less soluable oxides, easy to separate by filtration. e.g. iron is usually in the ferrous state when it is dissolved in water. With ozone it yields ferric iron, further oxidized in water to ferric hydroxide that is very insoluable precipitates out for filtration. Other metals: Arsenic (in presence of Iron), Cadmium, Chromium, Cobalt, Copper, Lead, Manganese, Nickel, Zinc - can be treated in a similar way.
• Improved Coagulation and Turnidity Removal - Oxidation of dissolved organic materials by ozone results forming precipitates. Treatment of a surface water with of ozone results in a decrease in turbidity, improved settle ability and a reduction in the number of particles.
• Algae Removal - Ozonation of a water contaminated with algae oxidizes and floats the algae to the top of the reservoir. The ozone will also oxidize the metabolic by-products of the algae and remove the undesirable odor and taste.
Applications of Ozone in waste water :
• Oxidation of organic waste.
• Cyanide destruction
• Ground water petrochemical oxidation
• Heavy metal precipitation
• Pulp & paper efflents
• Textile Mill effluents
• Textile Dye, Starch, FOG (Fate, Oil, Grease) elimination
• Pesticide, herbicide and insecticide elimination
• BOD reduction of domestic waste
• Secondary treatments for municipal waste water
• Mining heavy metal precipition
• Sewage water treatment
• Process water treatment
Applications:
-----------------------------------------------------------------------------------------1.Air purify: Food processing plant, cosmetic plant, refrigerator, file room, Cafeteria, pharmaceutical factory, schools, hotel, hospitals, restaurants etc;
2.Water treatment: Mineral water, bottled water, pure water, swimming pool, aquaculture, farm feeding water, beverage plant, industrial wastewater, and cooling tower system, etc.;
3.Medical treatment industry:Disinfect sickroom, operating room, medical treatment equipment, aseptic room, etc.
4.Laboratory: Industrial oxidation of flavor and pharmaceutical intermediate;Small test or effect test for waste water treatment;
5.Beverage industry: Disinfect production water supply for pure water, mineral water and any kind of beverage, etc.
6.Fruits and vegetables processing industry: Keep fruits and vegetables fresh and store them;Disinfect production water supply for fruits and vegetables processing
7.Sea food factory: Remove smell of sea food factory and kill bacteria, disinfect production water supply.
8.Slaughtering: Remove smell of slaughtering and kill bacteria, disinfect production water supply
9.Poultry factory: Remove smell of poultry factory and kill bacteria, disinfect water for poultry feeding.
10.Food processing: Disinfection for production water supply;Production factory, aseptic room, production equipment and other tools, etc.
11.Pharmaceutical industry: Disinfect production water supply, central air-conditioning system, factory, dressing room;Etc.
12.House and hotel: Remove formaldehyde and benzene compounds for new house, hotel
13.Swimming pool: Disinfect water of small pool/spa with water capacity 2-100m3 cubic meters;
14.Dishwasher, washing machine: Disinfect water for dishwasher, washing machine.
-----------------------------------------------------------
Guangzhou jiahuan appliance technology co., ltd
Guangzhou jiahuan appliance technology co., ltd established in 2007, with over 150 employees , covering more than 10000m2 , professional making ozone generator and PSA oxygen generator for water treatment and air purification .
Our company consists of six departments :
Administration section
Production department
Sales department
Technical department
After-sale department
Develop department
Jiahuan always striving to provide the best service .We push ourselves to stay on the top of the industry and to go above and beyond your expectations.Contact to benefit from our expertise
Website :Http://en.Madeozone.Com/
Address :NO.2 Hualong road Donghua Industrial area Renhe town Baiyun area Guangzhou China
What is ozone?
-----------------------------------------------------------------------------------------
Ozone is one of the most powerful oxidants available, destroying bacteria,viruses, mold and mildew in air, water and diverse applications almost instantly and more efficiently than any other technology.Ozone's molecular structure is three oxygen atoms (O3).
2.Will Ozone hurt me?
Once the ozone concentration fails to meet the hygiene and safety standard, we can notice with our sense of smell and dodge away or take actions to avoid further leakage.So far there is no one death reported caused by ozone poisoning.
3.Why is ozone a green technology?
Ozone is a green technology with many environmental benefits.It reduces our dependence on traditionally used, harmful chemicals such as chlorine and eliminates their hazardous disinfectant by-products (DBPs).The only by product created by ozone applications is oxygen which is reabsorbed into the atmosphere.Ozone's ability to disinfect in cold water also saves energy.
Main products
-----------------------------------------------------------------------------------------
 | ||||||||||||||||||||||||||||||||||||||||||||||||
| Catalog : -------------------------------------------------------------------------------------------- | ||||||||||||||||||||||||||||||||||||||||||||||||
| Air source ozone generator Ozone concentration (10mg/l -30mg/l )
| ||||||||||||||||||||||||||||||||||||||||||||||||
Oxygen source ozone generator Ozone concentration ( 80-100mg/l )
| ||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||
