Gkh Large Capacity Automatic Powder Separation Horizontal Centrifuge

GKH Horizontal Peeler Centrifuge with sighon device Siphon Peeler Centrifuge

Technical Feature

  • 1 Set
  • Shanghai, China
  • 50 Sets/Month
  • L/C, T/T, Western Union
  • Centrifuge
  • Solid Liquid Separation Centrifuge
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~0

PRIMARY PARAMETERS

Model NO.
GKH
Machine Control
PLC Control
Machine Guarantee
12 Months
Centrifugal Type
Basket Centrifuge
Moc
Stainless Steel
Operate
Automatic Batch Operation
Bearing
SKF
Screen Touch
Optional
Discharge
Peeler Discharge
Application
Starch Centrifuge
Trademark
Huada
Transport Package
Standard with Wooden Pallet and Poly Film Wrapping
Specification
GMP, CE
Origin
China
HS Code
8421199090

DETAIL DESCRIPTION

GKH Horizontal Peeler Centrifuge with sighon device


Siphon Peeler Centrifuge


Product Description

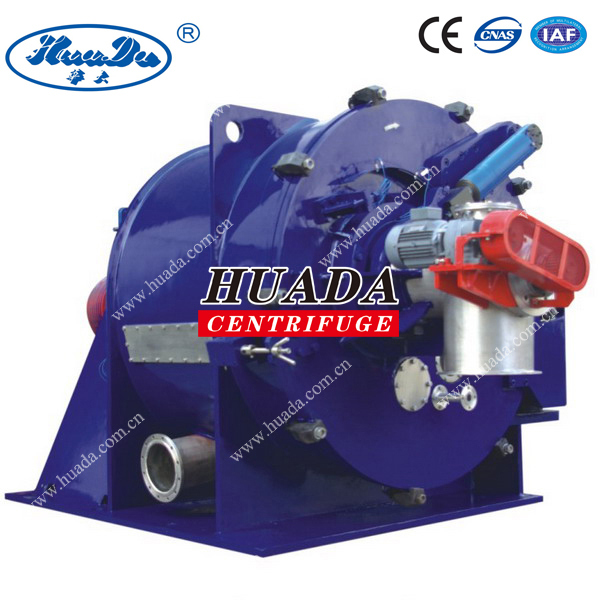

Gkh Large Capacity Automatic Powder Separation Horizontal Centrifuge


Product Application

Peeler Centrifuge in Operation Video:

http://www.huada-video.com/gkh-siphon-peeler

Peeler centrifuge is continuously rotating and intermittently operation centrifuge. It can be either automatic control or manual control.

The whole process of operation including materials feeding, separating, cleaning, dewatering, discharging and filter cloth recycling can be achieved at full speed. Single cycle of processing materials is shortly but with large quantity. The solids cake can be well dried and cleaned.

Peeler centrifuge is widely used in such industries as chemical, food, light industry, pharmaceutical, etc. It is suitable for separating suspension containing large-size or medium-size or small-size particles, such as sulphuric ammonia, carbonic ammonia, PVC, etc.

Siphon peeler centrifuge is designed on the common peeler centrifuge basics. By the siphon to increase the force pushes the clarified liquid passing through the filtration medium into the liquid chamber. The liquid is drained out of the basket through the sucker. Adjusting the position of sucker could change the liquid level in the suction chamber to adjust the force of filtration, speed, output, dryness of the solid cake and effectiveness of cleaning.

Set a recoil fitting. Pour washing liquid into the suction chamber and the overflow chamber if it needs. Washing liquid flowing into the basket will resume the filtering performance of the filtration medium when it passes through it.

Siphon peeler centrifuges are suitable for massively processing of the highly sticky slurry with free moisture solids cake. It can be applicable to separating amylum, sodium bicarbonate and calcium phosphate.

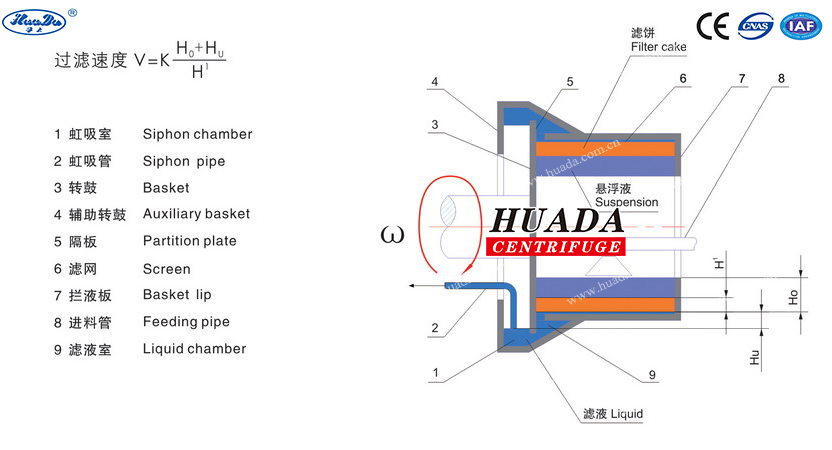

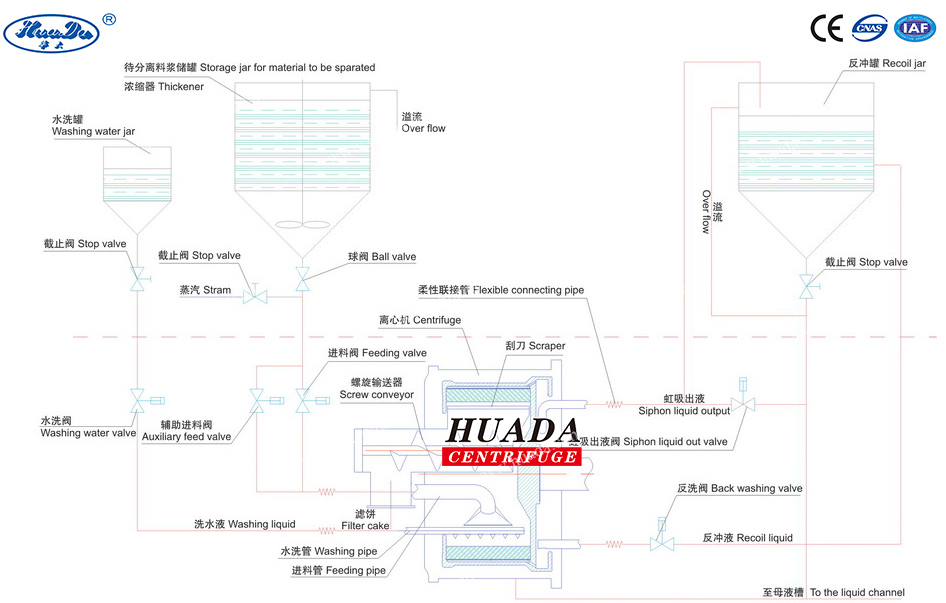

Working principle
Gkh Large Capacity Automatic Powder Separation Horizontal Centrifuge
Gkh Large Capacity Automatic Powder Separation Horizontal Centrifuge



Main features
PLC control for long-distance monitoring; touch-screen operation and human-machine dialogue for easy maintenance and operation.
Action elements with automatic electric-pneumatic/hydraulic control.
Safety protection, includes rotation speed monitoring, over-vibration protection, cover opening protection, motor overload and overheat protection, dual control with both mechanical and electrical for scraper.
Welded machine case, strong and rationally design structure.
All seals are made of the fluorous rubber and silicon rubber.
Independent hydraulic station can be installed separately, convenient to repair.
Driving with hydraulic coupling (GK1250 and bigger) for stable start-up and simple control, effectively protecting the motor from overload-related damage. Optional inverter start-up for variable speed control.
Floating platform with rubber vibration-absorbing foundation; Liquid -damping vibration absorber is also available with excellent effects of absorbing effects, ensures stable operation of the centrifuge and reducing hazards imposed to the equipment and environment from the centrifuge vibration.
Two discharging modes available: chute discharging featuring simple construction; and discharging through scroll conveyor and scraper featuring high catching rate of solid cake and effectively prevent blocking.
GKH Peeler centrifuge offering siphon pushing force which makes filtration faster. Back washing device is available for washing and regeneration of filtration medium. Skimming device is also available to suit for separation of colloid materials containing protein.
Gkh Large Capacity Automatic Powder Separation Horizontal Centrifuge

Parameters
Items
GKH800
GKH1000
GKH1250
GKH1600
Basket Dia (mm)
800
1000
1250
1600
Basket Length (mm)
450
500
625
1000
Basket Volume (L)
100
165
370
830
Max. Load (kg)
135
225
500
1000
Max. Rotating speed (r/min)
1550
1400
1200
950
Centrifuge Force
1080
1090
1007
808
Motor (kW)
45
55
90
132
Dimension (L*W*H) (mm)
2550*1850*1350
2400*2150*1700
3450*3300*2500
4550*2750*2300
Weight (kg)
4000
6500
8000
17000
Advantages
Feeding phase
As it can freely regulate the filtration rate, the filtration rate is reduced during feeding phase to prevent uniform distribution of the cake.
Filtration phase
Siphon pipe is lower level. With the column height Hu of additional liquid, the filtration rate is increased, and thus the processing capacity is increased by 50% within the same time.
Washing phase
Inlet of the siphon pipe is in higher level with less filtration pushing force being generated. The washing liquid flows slowly to extend the time of the washing liquid staying in the filter cake, thus reducing loss of the washing liquid and bringing about better effects of washing.
Dry spinning phase
The inlet of the siphon pipe is at the bottom with the maximum filtration pushing force, therefore moisture contained in the filter cake can be removed easily, and the moisture of the filter cake is reduced.
Back-washing function
After the scraper discharges the material, the siphon can inject washing liquid into the suction chamber from the outside, and then reversely force the liquid to flow into the basket for washing. Achieve good performance of washing the filter cloth with strong ability to regenerate.

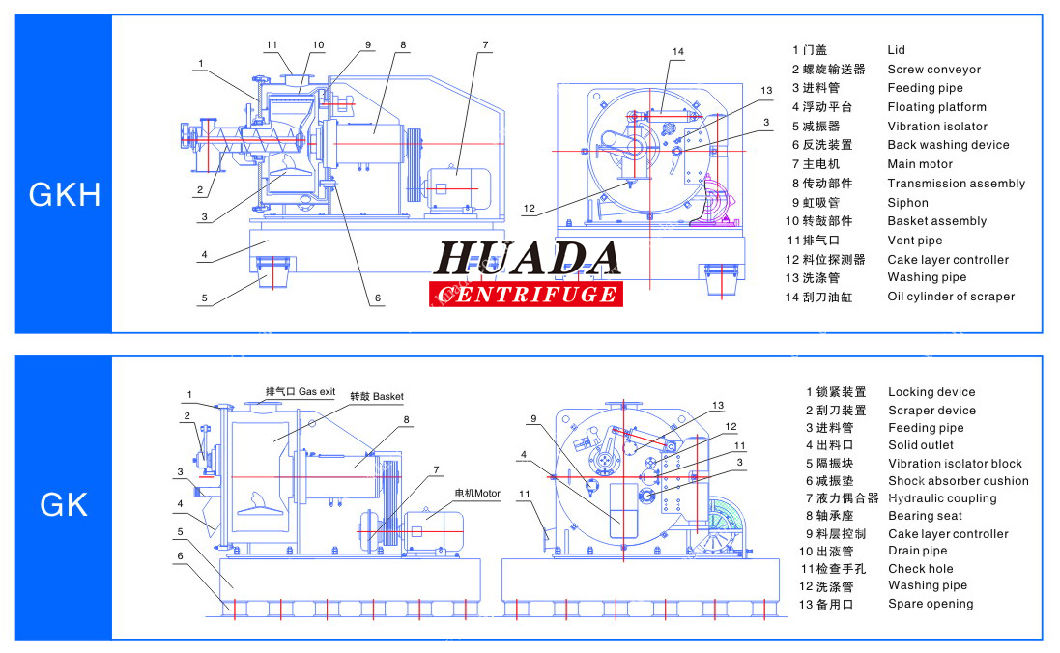

Diagram
Gkh Large Capacity Automatic Powder Separation Horizontal Centrifuge

Gkh Large Capacity Automatic Powder Separation Horizontal Centrifuge
