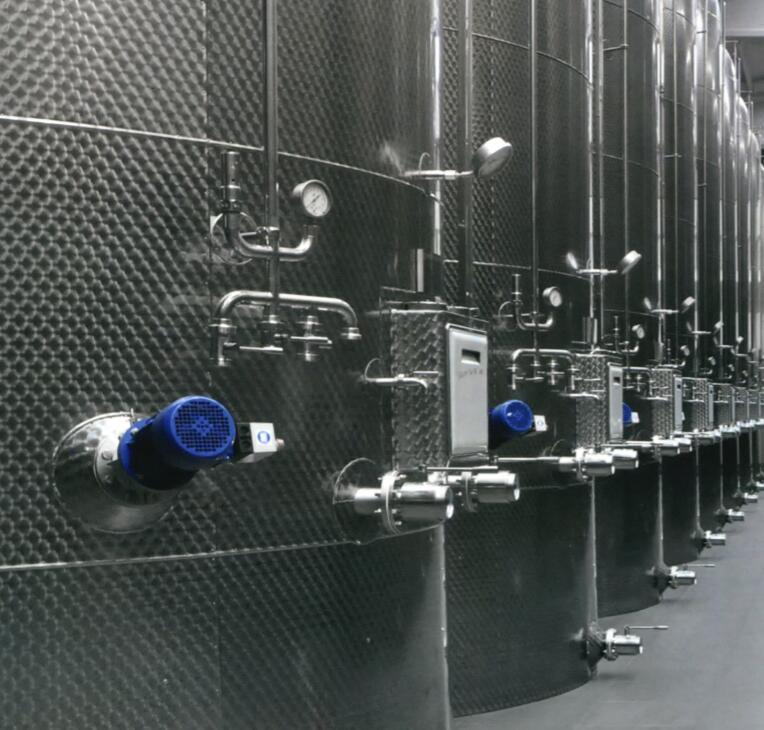

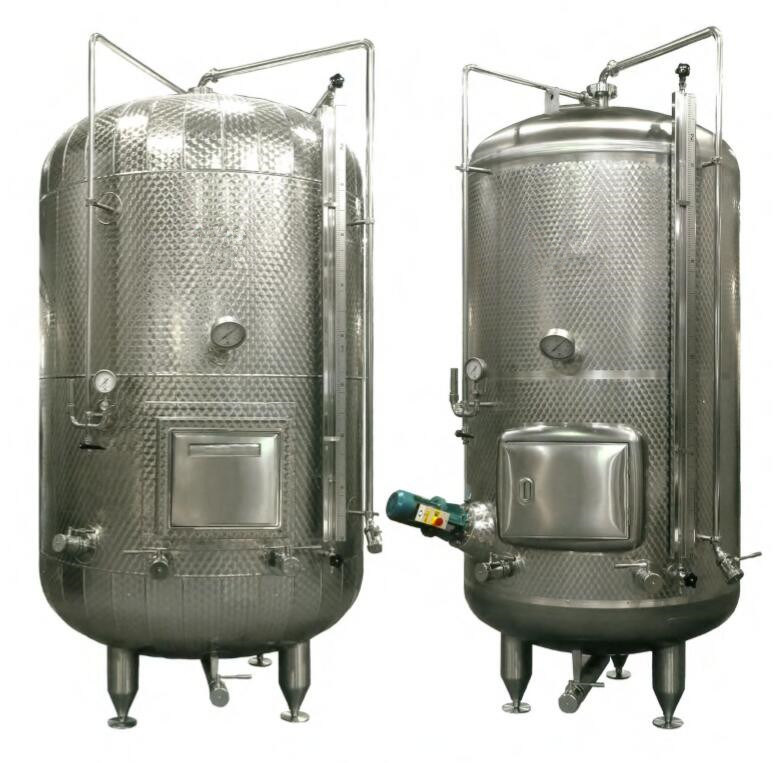

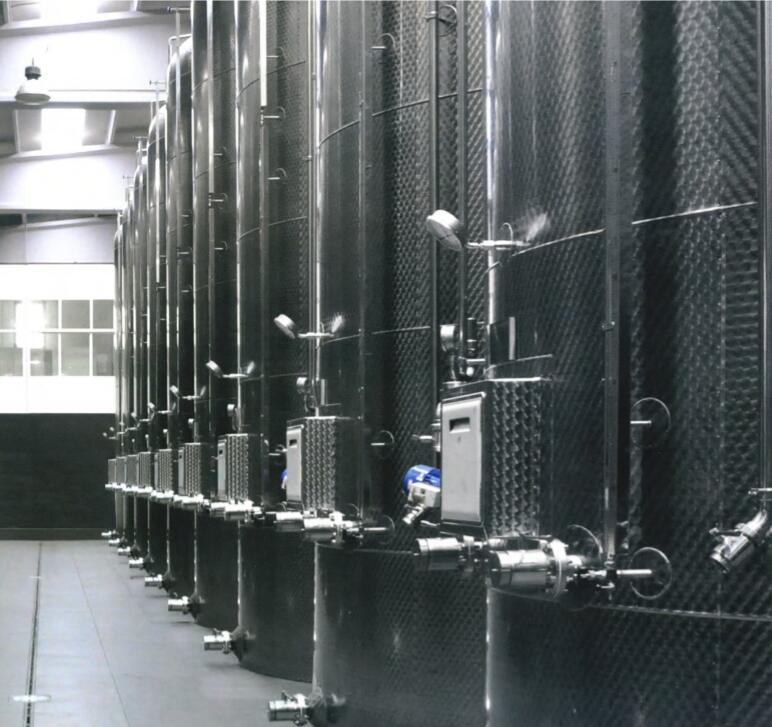

Fermentation Tank Stainless Steel Tank Liquid Tank Storage Tank
1). SUS316L or SUS304
2). Can mix the liquid, fluid
3), Capaciy: 500L~10000L
4), application: Food, beverage, pharmaceutical, chemical,
Sanitary stainless steel Milk Storage Tank
Sanitary stainless steel, mixing machine, tank mixer, blend tank mixing tank, storage tank, heatig and cooling tank
Storage tank for juice, milk, and other food liquid, customized design accpeted
1). SUS316L or SUS304
2). Can mix the liquid, fluid
3). Capaciy: 500L~10000L
Specifications
1. Material: SUS304, 316L
2. Capacity: 100L to 100000L
3. Liquid: Milk, juice, water
4. Three layer with jacket and insulation

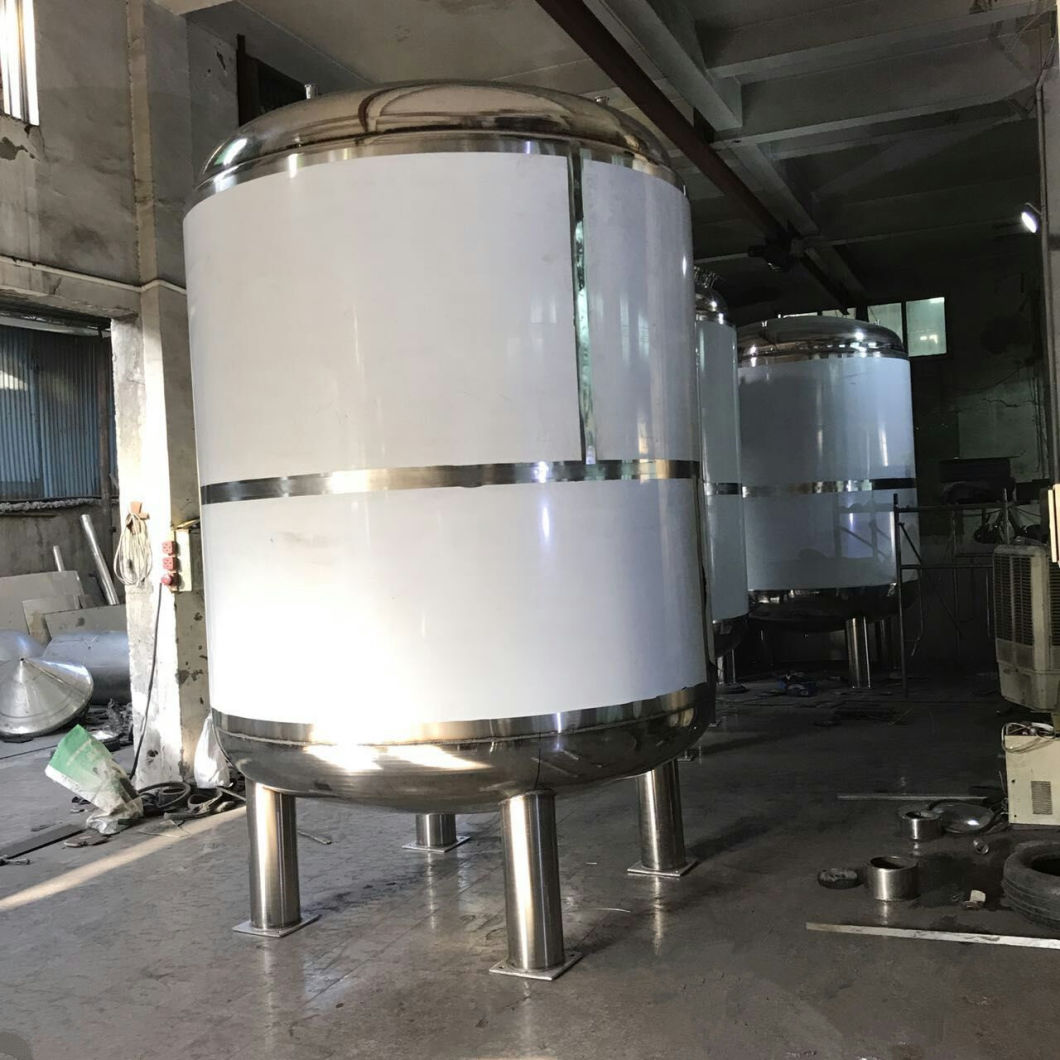

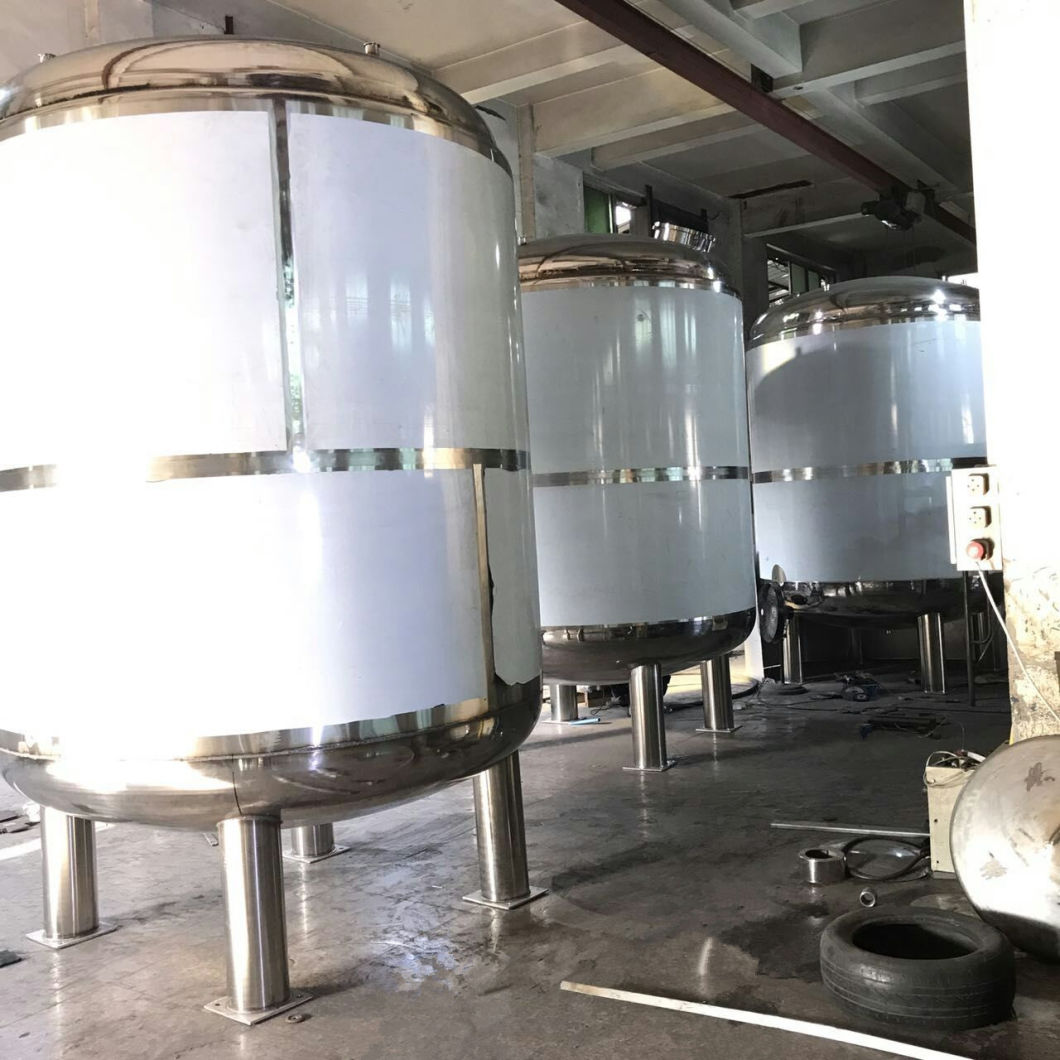

Stainless steel storage tank
Capacity: 500L
Adopt SUS304 or SUS316 stainless steel.
Equipped with devices: Inlet and outlet, thermometer, fluid level gauge, counter, CIP cleaning ball valve.
Features:
1. Stainless steel storage tank is suitable to storage all kind of food and chemical product, like milk, beverage, juice, paint, coating, ink, pigment, etc.
2. Inside and outside is mirror finished without dead corner, and easy to clean.
3. The appearance can be round shape and conical shape.
4. Can design with liquidometer, air respirator, thermometer, ladder (According to customer requirements).
5. Quick open manhole.
6. Can be single layer, also can be two or three layer to heat or cool. (Miller board, hollow jacket or coil pipe jacket are available accordingto customer requirements).

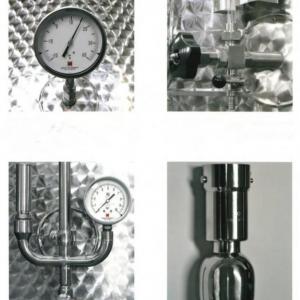

Quick open manhole.
Various types of CIP cleaners.
Fly and insect resistant sanitary breathing cover.
Adjustable triangular bracket.
Dismountable materials input pipe assembly.
Thermometer (According to customer requirements).
Ladder (According to customer requirements).
Liquid level meter and level controller (According to customer requirements ).
Eddy-proof board
Fermentation Tank Stainless Steel Tank Liquid Tank Storage Tank
1). SUS316L or SUS304
2). Can mix the liquid, fluid
3), Capaciy: 500L~10000L
4), application: Food, beverage, pharmaceutical, chemical,
Sanitary stainless steel Milk Storage Tank
Sanitary stainless steel, mixing machine, tank mixer, blend tank mixing tank, storage tank, heatig and cooling tank
Storage tank for juice, milk, and other food liquid, customized design accpeted
1). SUS316L or SUS304
2). Can mix the liquid, fluid
3). Capaciy: 500L~10000L
| Model Specification | KQ- 100 | KQ- 200 | KQ- 500 | KQ- 1000 | KQ- 1500 | KQ- 2000 | KQ- 2500 | KQ- 3000 | KQ- 4000 | KQ- 5000 |
| Volume(L) | 100 | 200 | 500 | 1000 | 1500 | 2000 | 2500 | 3000 | 4000 | 5000 |
| Nominal diameter(mm) | 500 | 600 | 800 | 1000 | 1200 | 1200 | 1400 | 1400 | 1500 | 1600 |
| Nominal pressure in kettle(Mpa) | 0.5 | |||||||||
| Nominal pressure of jacket(Mpa) | 0.250.6 | |||||||||
| Motor power(kw) | 1.1 | 1.5 | 2.2 | 4.0 | 4.0 | 4.0 | 5.5 | 5.5 | 5.5 | 7.5 |
| Rotation speed(r/min) | 36 | 63 | 85 | 130 | 180 |
Specifications
1. Material: SUS304, 316L
2. Capacity: 100L to 100000L
3. Liquid: Milk, juice, water
4. Three layer with jacket and insulation
Stainless steel storage tank
Capacity: 500L
Adopt SUS304 or SUS316 stainless steel.
Equipped with devices: Inlet and outlet, thermometer, fluid level gauge, counter, CIP cleaning ball valve.
Features:
1. Stainless steel storage tank is suitable to storage all kind of food and chemical product, like milk, beverage, juice, paint, coating, ink, pigment, etc.
2. Inside and outside is mirror finished without dead corner, and easy to clean.
3. The appearance can be round shape and conical shape.
4. Can design with liquidometer, air respirator, thermometer, ladder (According to customer requirements).
5. Quick open manhole.
6. Can be single layer, also can be two or three layer to heat or cool. (Miller board, hollow jacket or coil pipe jacket are available accordingto customer requirements).
Quick open manhole.
Various types of CIP cleaners.
Fly and insect resistant sanitary breathing cover.
Adjustable triangular bracket.
Dismountable materials input pipe assembly.
Thermometer (According to customer requirements).
Ladder (According to customer requirements).
Liquid level meter and level controller (According to customer requirements ).
Eddy-proof board
Fermentation Tank Stainless Steel Tank Liquid Tank Storage Tank
