Jinggong fermentation tank / fermenter / fermentation vessel

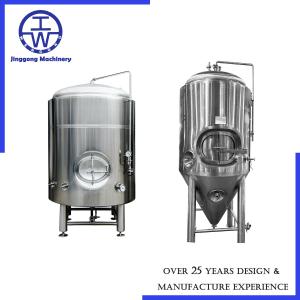

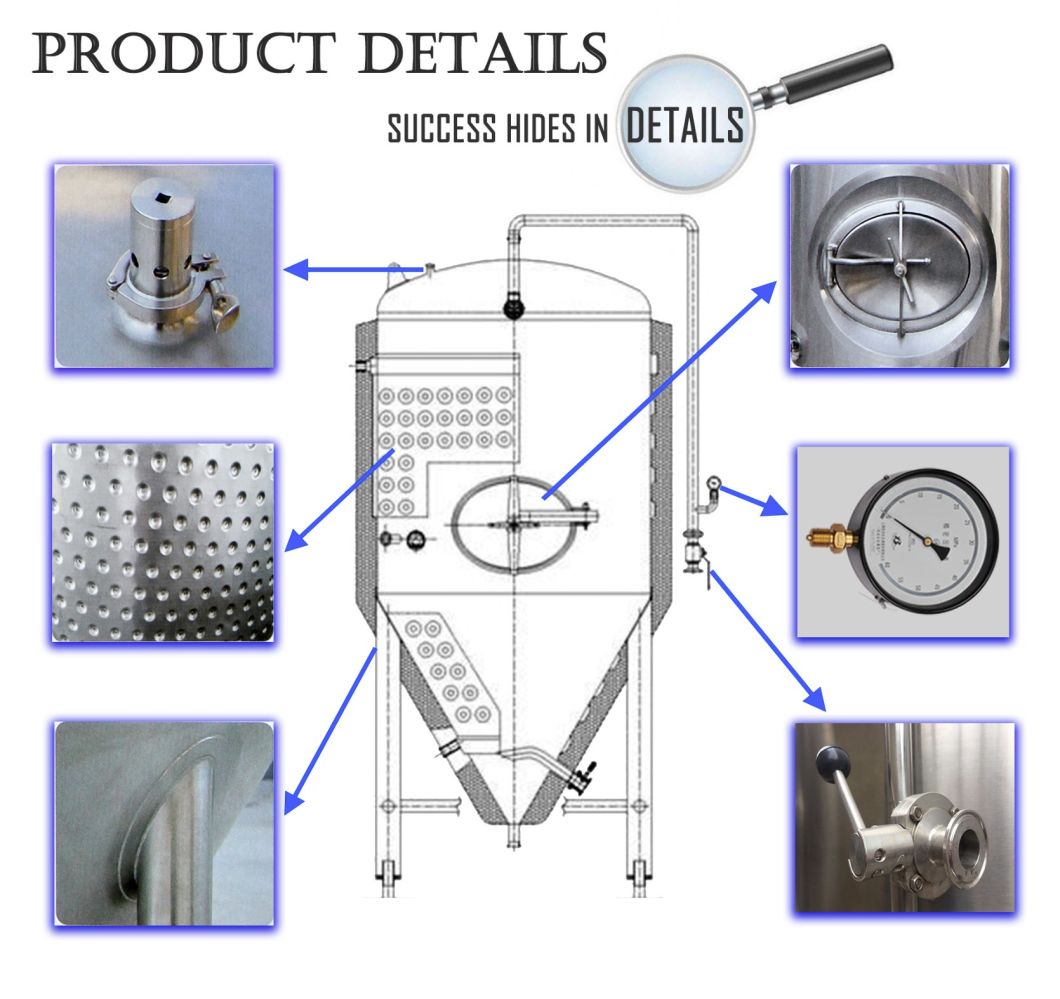

Fermenter is available from 50L to 50, 000L with an average 25% Head Space. All tank have a Dish top, a Cylinder body and a 60-70° Cone Bottom. Certified stainless steel material for all tanks, with 100% TIG welded (Argon-arc welded) joints and seams with sanitary interior Polish. Dimple Plate jacket for Glycol cooling & high efficient Polyurethane foam insulation. All tanks use Tri-clamp connections, are designed for up to 0.2MPa and tested at 0.4MPa (we own the Manufacture License of Pressurized Vessels). Manway on the side or on the top. CIP cleaning ball and pressure regulating valve are available. We will provide turnkey project and service to meet your space and height restrictions.

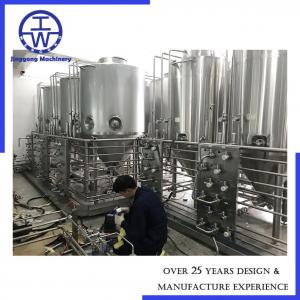

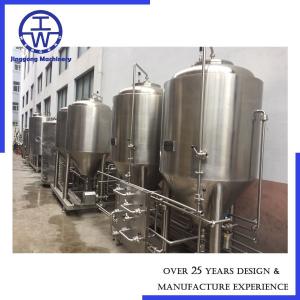

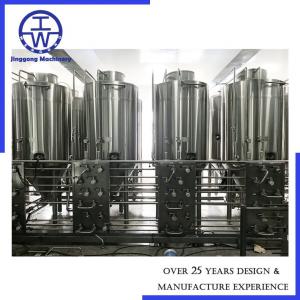

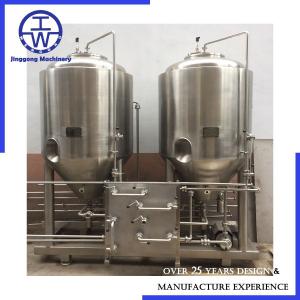

Project/product show:
For more products please see http://wz-jinggong.en.made-in-china.com/
Wenzhou Jinggong Machinery Equipment Co., Ltd. is a professional supplier of equipment for R&D, design, manufacture, installation, commissioning and turn-key in the beer, wine, dairy, food & beverage and pharmaceutical industry, with an experience of more than 25 years.
The company is equipped with first-class engineering installation team and equipment to rigorous construction management, so you rest assured satisfaction. The company operates with ISO9001 Quality Management System so that the quality of entire process of product and project is surely controlled.
Beer equipment, fermentation equipment, bright beer equipment, filtration equipment, complete set of yeast expansion system, yeast reuse and storage system, wort oxygenation, CIP system, caustic filter, and vaccum drum filtration equipment have been widely used in China Resources Snow Beer Group, Budweiser InBev Group, Carlsberg Group, Tsingtao Brewery Group, Yanjing Beer Group and other enterprises.
We will, as always, to continuously enhance our technology, equipment and services, to provide better products and services to both new and existing customers.
Fermenter is available from 50L to 50, 000L with an average 25% Head Space. All tank have a Dish top, a Cylinder body and a 60-70° Cone Bottom. Certified stainless steel material for all tanks, with 100% TIG welded (Argon-arc welded) joints and seams with sanitary interior Polish. Dimple Plate jacket for Glycol cooling & high efficient Polyurethane foam insulation. All tanks use Tri-clamp connections, are designed for up to 0.2MPa and tested at 0.4MPa (we own the Manufacture License of Pressurized Vessels). Manway on the side or on the top. CIP cleaning ball and pressure regulating valve are available. We will provide turnkey project and service to meet your space and height restrictions.
| Working volume (L) | Dimension D*H (mm) | Total height (mm) | Diameter of inlet&outlet (mm) | PU insulation (mm) | Manway size (mm) | Inner thickness (mm) | Comment |
| 500 | 800*800 | 2100 | 38 | 50 | 440*320 | 3 | All parameters can be customized according to your process & request. |
| 1000 | 1000*1200 | 2650 | 38 | 50 | 440*320 | 3 | |
| 2000 | 1100*1400 | 2950 | 38 | 50 | 550*430 | 3 | |
| 3000 | 1200*1500 | 3150 | 51 | 50 | 550*430 | 3 | |
| 4000 | 1400*1700 | 3900 | 51 | 50 | 550*430 | 3 | |
| 5000 | 1500*2100 | 4050 | 51 | 50 | 550*430 | 3 | |
| 6000 | 1600*2200 | 4100 | 51 | 50 | 550*430 | 3 | |
| 8000 | 1800*2700 | 4800 | 51 | 50 | 550*430 | 3 | |
| 10000 | 2000*2800 | 4900 | 51 | 50 | 550*430 | 3 | |
| 20000 | 2500*3600 | 6700 | 51 | 80 | 550*430 | 3 | |
| 40000 | 3200*4800 | 9000 | 76 | 80 | 550*430 | 4 | |
| 50000 | 3500*5200 | 9600 | 76 | 80 | 550*430 | 4 |

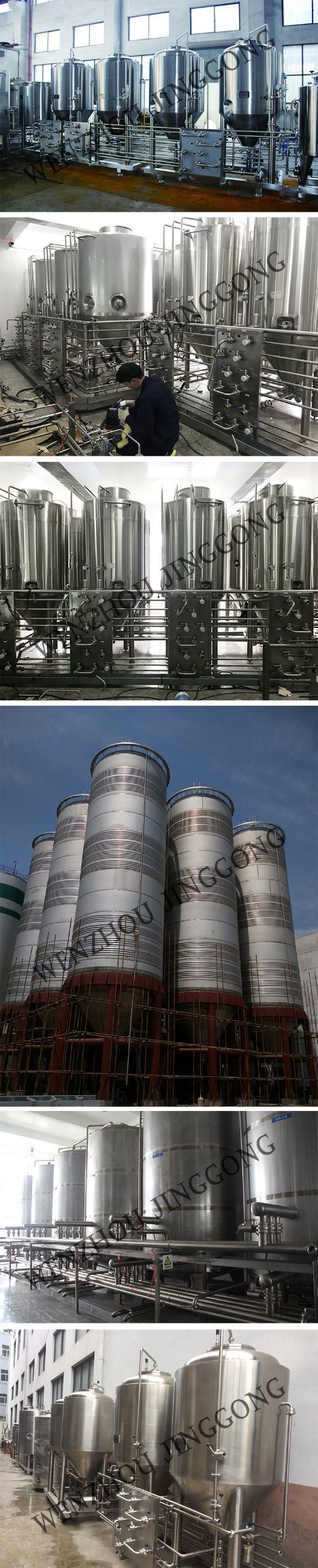

Project/product show:
For more products please see http://wz-jinggong.en.made-in-china.com/
Wenzhou Jinggong Machinery Equipment Co., Ltd. is a professional supplier of equipment for R&D, design, manufacture, installation, commissioning and turn-key in the beer, wine, dairy, food & beverage and pharmaceutical industry, with an experience of more than 25 years.
The company is equipped with first-class engineering installation team and equipment to rigorous construction management, so you rest assured satisfaction. The company operates with ISO9001 Quality Management System so that the quality of entire process of product and project is surely controlled.
Beer equipment, fermentation equipment, bright beer equipment, filtration equipment, complete set of yeast expansion system, yeast reuse and storage system, wort oxygenation, CIP system, caustic filter, and vaccum drum filtration equipment have been widely used in China Resources Snow Beer Group, Budweiser InBev Group, Carlsberg Group, Tsingtao Brewery Group, Yanjing Beer Group and other enterprises.
We will, as always, to continuously enhance our technology, equipment and services, to provide better products and services to both new and existing customers.
