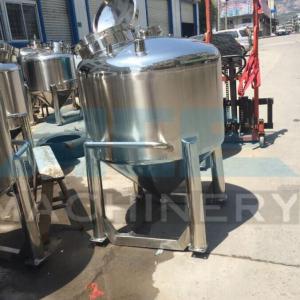

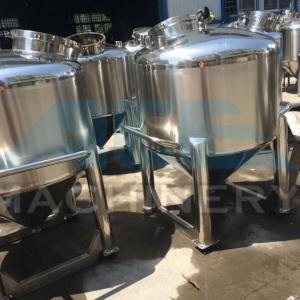

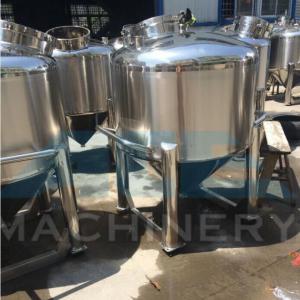

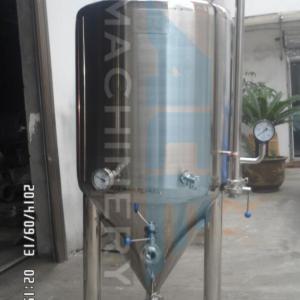

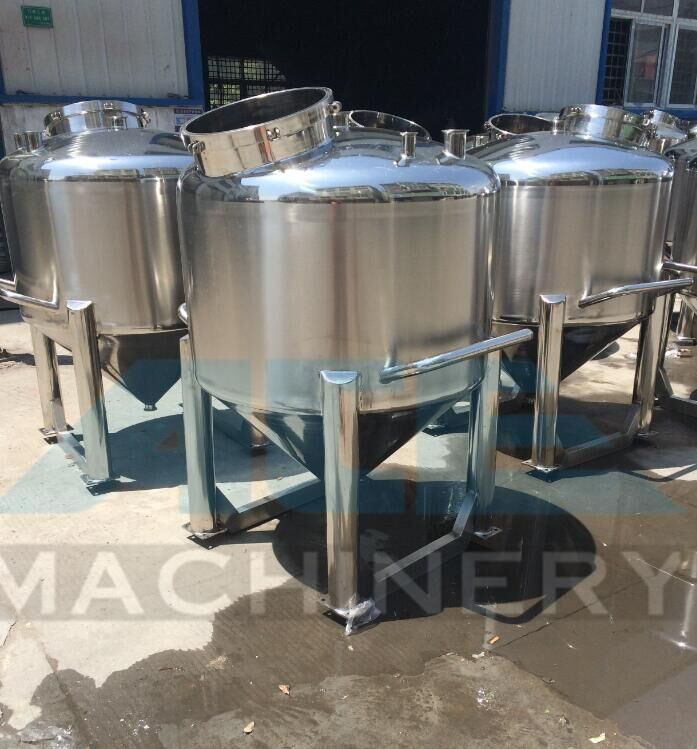

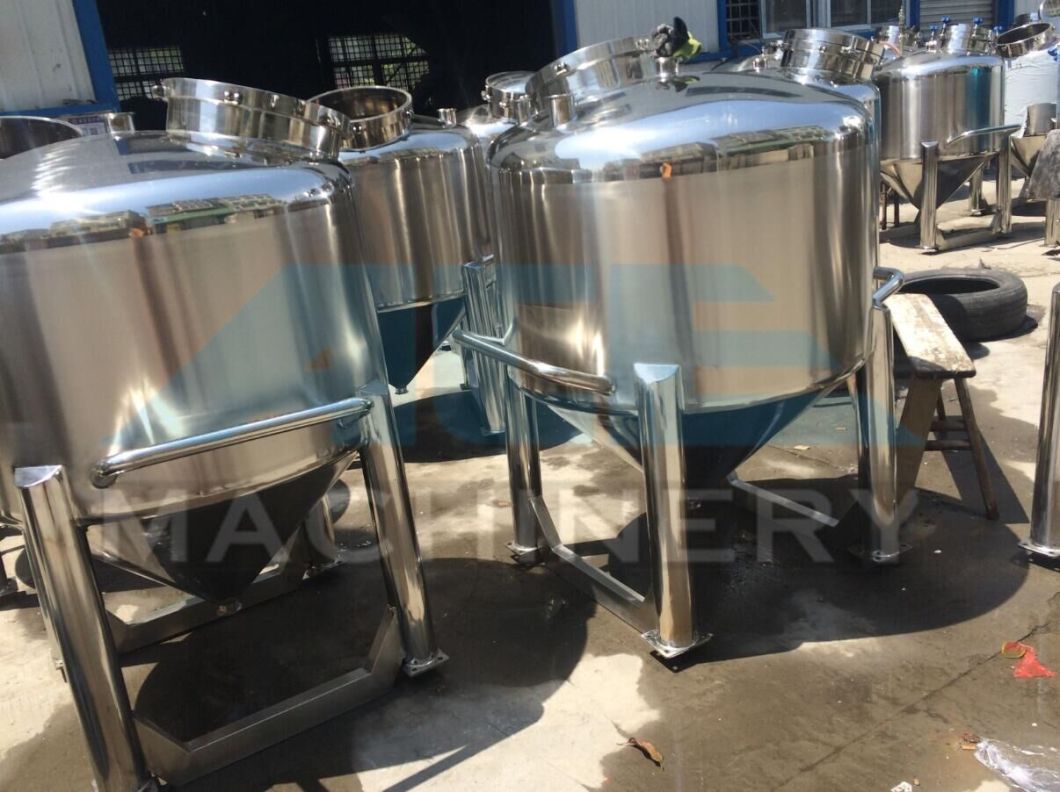

100 Liters Sanitary Seeds Fermentation Tank (ACE-FJG-X7)
(1) ACE-JBG Series Stainless Steel Liquid Mixing Tank is Widely used for biopharmaceutical productive process such as formulating, dissolving, heating, cooling, warm-keeping, cultivating, disinfecting and storage.
(2) Mixing speed reducer should be installed on the top or bottom of the tank according to requirement. Mixing type: Mechanical, magnetic and air mixing systems. Mixing vane type: Anchor type, pusher type, spiral type.
(3) Quick-open manhole of the mixing tank integrated visual mirror and lamp thermometer ( digital display or dial type) liquid level gauge interface (capacity, ultrasonic, differential pressure and glass tube type level gauges are available) air breather interface cleaning interface ( 360 Centigrade Automatically-revolving cleaning machine or double-circulating automatic cleaning machine) feed liquid inlet and outlet, backup port steam inlet and outlet condensed water inlet and outlet.
(2) Mixing speed reducer should be installed on the top or bottom of the tank according to requirement. Mixing type: Mechanical, magnetic and air mixing systems. Mixing vane type: Anchor type, pusher type, spiral type.
(3) Quick-open manhole of the mixing tank integrated visual mirror and lamp thermometer ( digital display or dial type) liquid level gauge interface (capacity, ultrasonic, differential pressure and glass tube type level gauges are available) air breather interface cleaning interface ( 360 Centigrade Automatically-revolving cleaning machine or double-circulating automatic cleaning machine) feed liquid inlet and outlet, backup port steam inlet and outlet condensed water inlet and outlet.

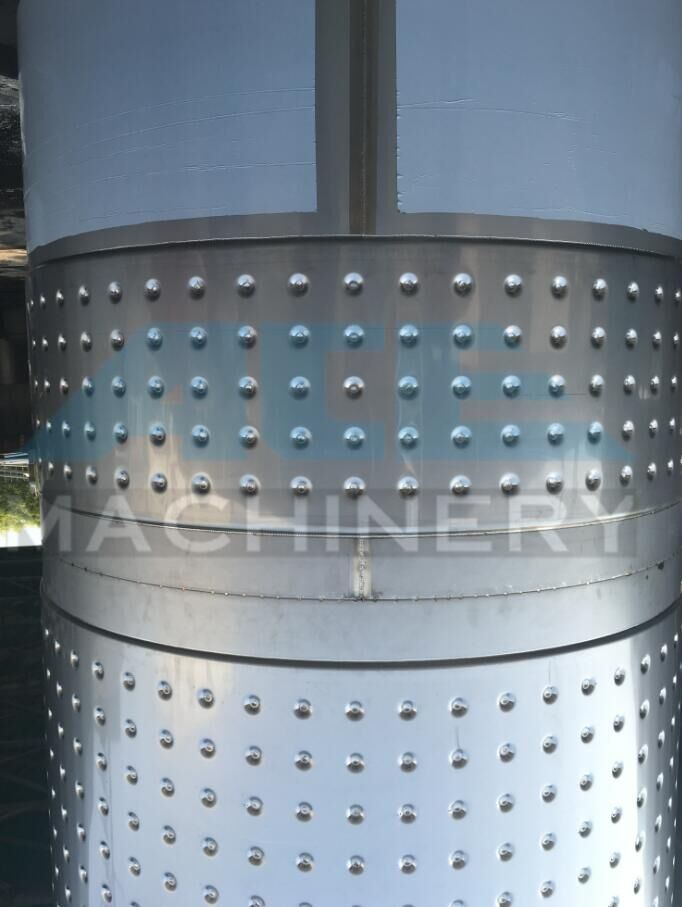

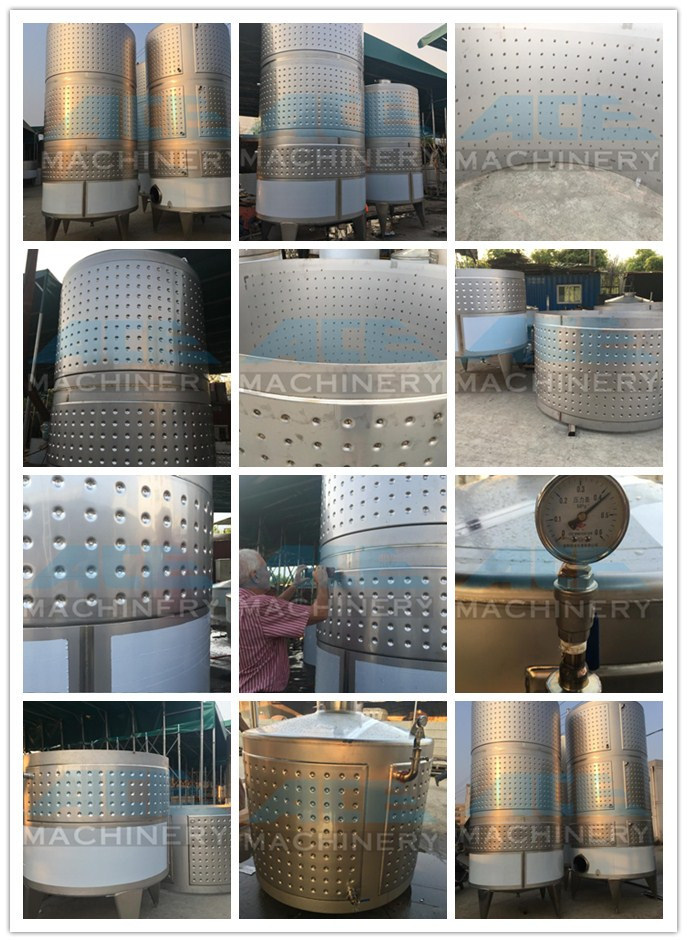

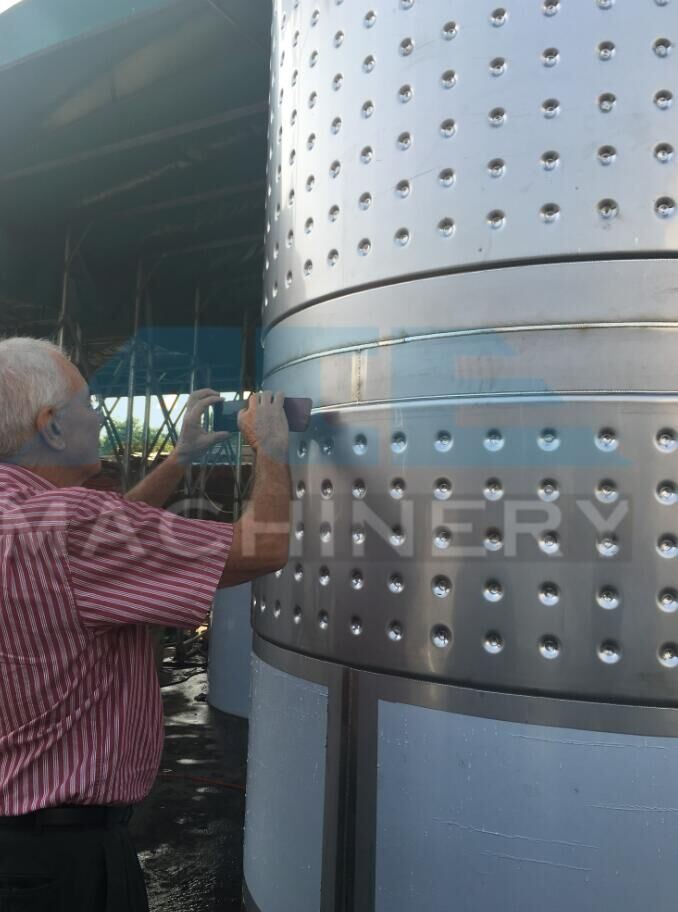

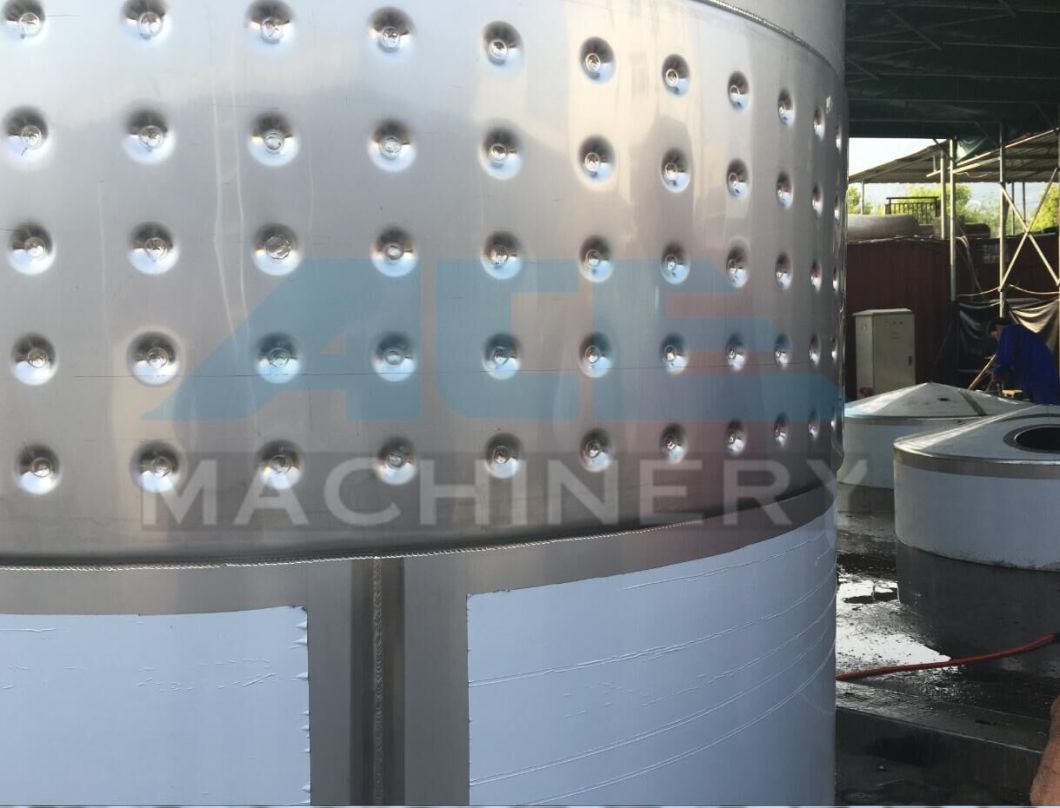

(4) The whole set equipment is made of austenitic stainless steel.The cooling jacket adopts dimple jacket. The jackets are provided at tank body and conical bottom to effectively increase the cooling speed. Heatexchangeing area of jacket of different proportions can be allocated according to customers' technological requirements (It could be designed).
| Effective volume | Dimension of tank | Total height | Diameter of inlet&outlet |
| (L) | (mm) | (mm) | (mm) |
| 500 | 840*1000 | 2250 | 38 |
| 600 | 920*1000 | 2300 | 38 |
| 700 | 990*1000 | 2300 | 38 |
| 800 | 950*1220 | 2500 | 38 |
| 900 | 1010*1220 | 2500 | 38 |
| 1000 | 1060*1500 | 2850 | 51 |
| 1500 | 1160*1500 | 2850 | 51 |
| 2000 | 1340*1500 | 2900 | 51 |
| 3000 | 1410*2000 | 3400 | 51 |
| 4000 | 1620*2000 | 3450 | 51 |
| 5000 | 1810*2000 | 3500 | 51 |
| 6000 | 1980*2000 | 3550 | 51 |
| 7000 | 1930*2440 | 4000 | 51 |
| 8000 | 2060*2440 | 4000 | 51 |
| 9000 | 2180*2440 | 4050 | 51 |
| 10000 | 2300*2440 | 4050 | 51 |
| 12000 | 2270*3000 | 4600 | 51 |
| 15000 | 2530*3000 | 4700 | 51 |
| 20000 | 2640*3660 | 5400 | 51 |
Wenzhou Ace Machinery Co., LTD supply Mixing tanks ,Reactor tank, fermentation tank, Inline homogenizer, High shear emulsifier mixer, ,Jacket cooking kettle, milk cooling tank sanitary fittings,etc.Widely used in many fields, such as dairy, beer, food, pharmacy, beverage, cosmetic etc.,exported to America, Europe, the Middle East.
