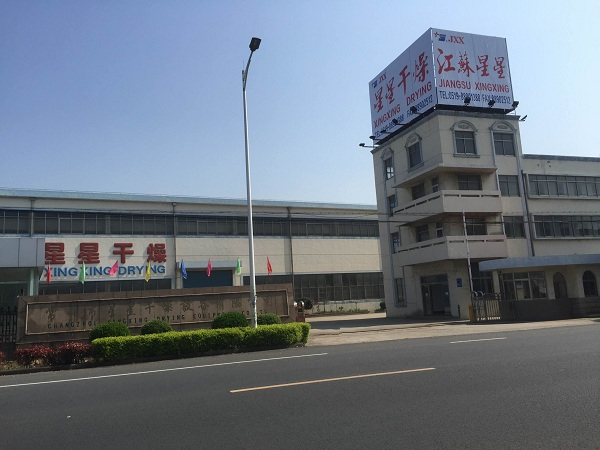

Company introduction :Jiangsu Xingxing Drying Equipment Co., Ltd.
WORKING PRINCIPLE

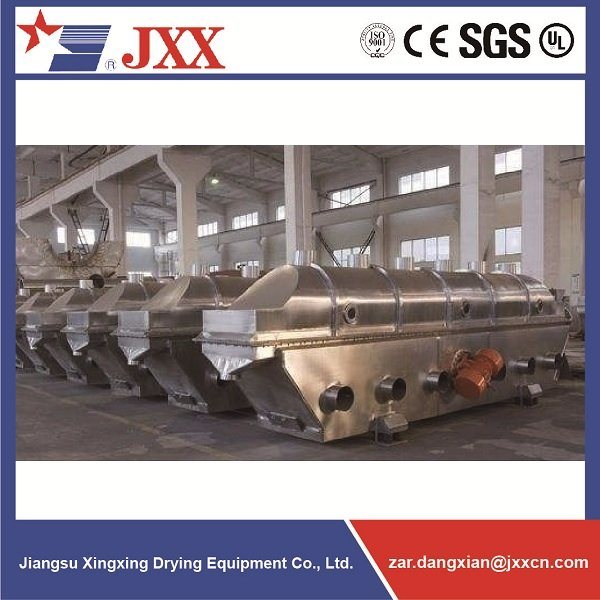

The working principle of fluid-bed dryer is that materials go into the machine from feed inlet. Under the vibratory force, the materials are thrown along the horizontal fluid bed and move forward continuously. After the hot air goes upward through the fluidized bed and a heat exchange with wet materials, the wet air is dedusted by cyclone separator and then discharged from air exhaust in 1:3.
FEATURES
1. Vibration source is driven by vibration motor, smooth operation, easy maintenance, low noise, long life.
2. Fluidized symmetry, no dead gaps and broken phenomenon, which enable uniform dried and cooled products
3. Adjustable, wide scope of application. Material thickness, speed of movement within the machine and total amplitude can all achieve stepless adjustment.
4. Small damage to the surface of the material, available for drying of friable material, when irregular particles will not affect work results.
5. Totally enclosed structure, effectively preventing cross infection between the material and the air. Clean working environment.
6. High mechanical efficiency and thermal efficiency, perfect energy-saving effect with 30 %-60 % energy saved comparing with average drying devices.
APPLICATION
This dryer is widely used for drying, cooling, wetting of the products in light industry, chemical industry, pharmaceutical industry, foodstuff, and etc.
APPLICABLE MATERIALS
This machine is applicable for drying and cooling powdery and granular materials in chemical, pharmaceutical, food, dehydrated vegetables, grain, mineral and other industries. Such as: citric acid, monosodium glutamate, borax, ammonium sulfate, compound fertilizer, shredded radish, soybean meal, distillers grains, seeds, slag, sugar and so on.
Technical Parameters of Fluid Bed Drying Machine
CERTIFICATE
Service:
pre-sale service
We Invite customers to visit our company and communicate on technical requirements face to face.
sale service
Responsible for debugging the equipment according to customers' requirements of various technical data. Our engineers will train our customers about equipment features and operation key points to make sure the equipment running in the best condition.
after-sale service
We provide installation, debugging, maintenance, training and other services; Provide relevant technical data, equipment, software and related GMP certification materials;Set up after-sales service hotline, and arrange personnel to visit customers every year to know more customer needs,like customer operation problems in the process of production equipment.
quality promise
Our company promises strictly operate the ISO9001 quality system certification standards and pharmaceutical equipment GMP audit requirements,promise we provide new equipment. Advanced technology,good quality.Equipment operation safe reliable, affordable, easy to maintain.
Equipment warranty period is one year,all the parts for the equipment choose well-known brand.
During the warranty when equipment have problem in quality like equipment failure and damage,the company for free maintenance or replacement.
We look forward to cooperating with partners from all over the world to build win-win
cooperation relationship in long term. Welcome for your visiting.
WORKING PRINCIPLE
The working principle of fluid-bed dryer is that materials go into the machine from feed inlet. Under the vibratory force, the materials are thrown along the horizontal fluid bed and move forward continuously. After the hot air goes upward through the fluidized bed and a heat exchange with wet materials, the wet air is dedusted by cyclone separator and then discharged from air exhaust in 1:3.
FEATURES
1. Vibration source is driven by vibration motor, smooth operation, easy maintenance, low noise, long life.
2. Fluidized symmetry, no dead gaps and broken phenomenon, which enable uniform dried and cooled products
3. Adjustable, wide scope of application. Material thickness, speed of movement within the machine and total amplitude can all achieve stepless adjustment.
4. Small damage to the surface of the material, available for drying of friable material, when irregular particles will not affect work results.
5. Totally enclosed structure, effectively preventing cross infection between the material and the air. Clean working environment.
6. High mechanical efficiency and thermal efficiency, perfect energy-saving effect with 30 %-60 % energy saved comparing with average drying devices.
APPLICATION
This dryer is widely used for drying, cooling, wetting of the products in light industry, chemical industry, pharmaceutical industry, foodstuff, and etc.
APPLICABLE MATERIALS
This machine is applicable for drying and cooling powdery and granular materials in chemical, pharmaceutical, food, dehydrated vegetables, grain, mineral and other industries. Such as: citric acid, monosodium glutamate, borax, ammonium sulfate, compound fertilizer, shredded radish, soybean meal, distillers grains, seeds, slag, sugar and so on.
Technical Parameters of Fluid Bed Drying Machine
| Model | Fluidized Bed Area (m2) | Inlet Air Temperature (ºC) | Outlet Air Temperature (ºC) | Evaporation Capacity (kg/h) | Vibrating Motor | |
| Model | Power(kw) | |||||
| ZDG3×0.3 | 0.9 | 70 to 140 | 40 to 70 | 20 to 35 | YZS8-6 | 0.75 × 2 |
| ZDG4.5×0.3 | 1.35 | 70 to 140 | 40 to 70 | 35 to 50 | YZS10-6 | 0.75 × 2 |
| ZDG4.5×0.45 | 0.025 | 70 to 140 | 40 to 70 | 50 to 70 | YZS15-6 | 1.1 × 2 |
| ZDG4.5×0.60 | 0.7 | 70 to 140 | 40 to 70 | 70 to 90 | YZS15-6 | 1.1 × 2 |
| ZDG6×0.45 | 0.7 | 70 to 140 | 40 to 70 | 80 to 100 | YZS15-6 | 1.1 × 2 |
| ZDG6×0.6 | 3.6 | 70 to 140 | 40 to 70 | 100 to 130 | YZS20-6 | 1.5 × 2 |
| ZDG6×0.75 | 4.5 | 70 to 140 | 40 to 70 | 120 to 170 | YZS20-6 | 1.5 × 2 |
| ZDG6-0.9 | 5.4 | 70 to 140 | 40 to 70 | 140 to 170 | YZS30-6 | 2.2 × 2 |
| ZDG7.5×0.6 | 4.5 | 70 to 140 | 40 to 70 | 130 to 150 | YZS30-6 | 2.2 × 2 |
| ZDG7.5×0.75 | 5.625 | 70 to 140 | 40 to 70 | 150 to 180 | YZS40-6 | 3.0 × 2 |
| ZDG7.5×0.9 | 6.75 | 70 to 140 | 40 to 70 | 160 to 210 | YZS40-6 | 3.0 × 2 |
| ZDG7.5×1.2 | 9.0 | 70 to 140 | 40 to 70 | 200 to 280 | YZS50-6 | 3.7 × 2 |
| ZDG7.5×1.5 | 11.25 | 70 to 140 | 40 to 70 | 230 to 330 | YZS50-6 | 3.7 × 2 |
| ZDG8×1.8 | 14.4 | 70 to 140 | 40 to 70 | 290 to 420 | YZS75-6 | 5.5 × 2 |
CERTIFICATE
Service:
pre-sale service
We Invite customers to visit our company and communicate on technical requirements face to face.
sale service
Responsible for debugging the equipment according to customers' requirements of various technical data. Our engineers will train our customers about equipment features and operation key points to make sure the equipment running in the best condition.
after-sale service
We provide installation, debugging, maintenance, training and other services; Provide relevant technical data, equipment, software and related GMP certification materials;Set up after-sales service hotline, and arrange personnel to visit customers every year to know more customer needs,like customer operation problems in the process of production equipment.
quality promise
Our company promises strictly operate the ISO9001 quality system certification standards and pharmaceutical equipment GMP audit requirements,promise we provide new equipment. Advanced technology,good quality.Equipment operation safe reliable, affordable, easy to maintain.
Equipment warranty period is one year,all the parts for the equipment choose well-known brand.
During the warranty when equipment have problem in quality like equipment failure and damage,the company for free maintenance or replacement.
We look forward to cooperating with partners from all over the world to build win-win
cooperation relationship in long term. Welcome for your visiting.
