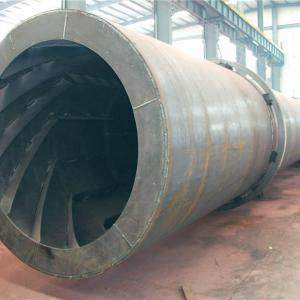

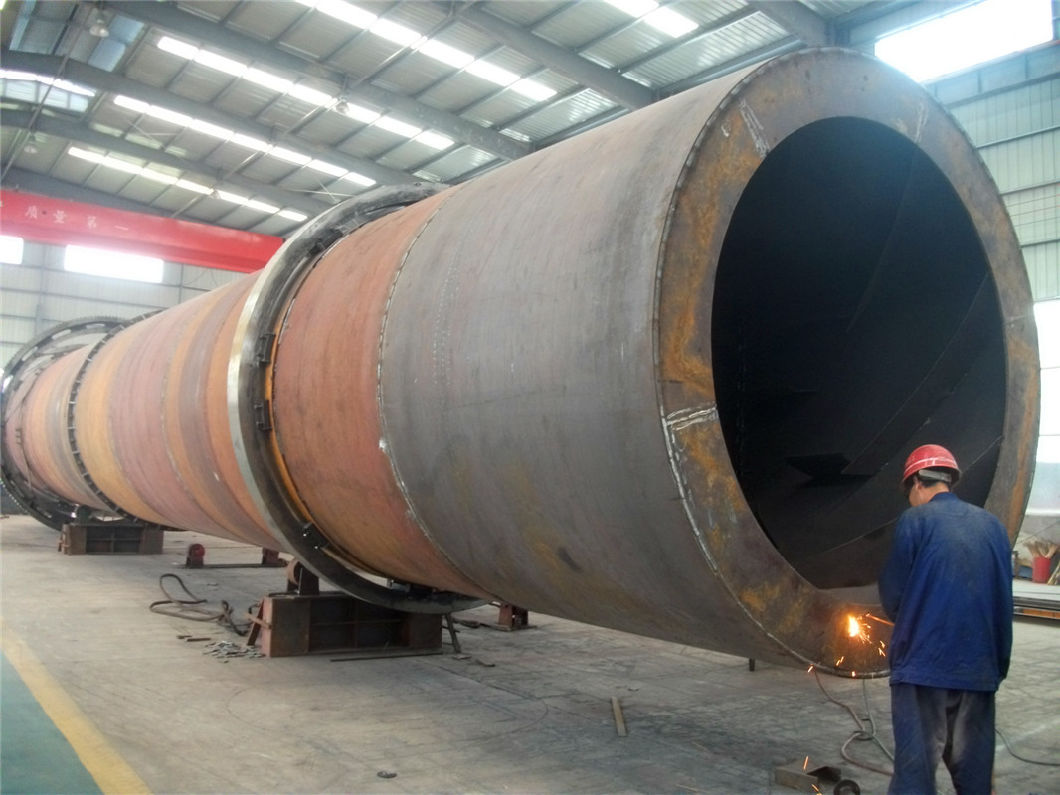

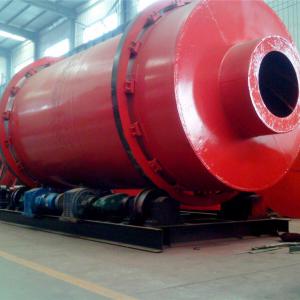

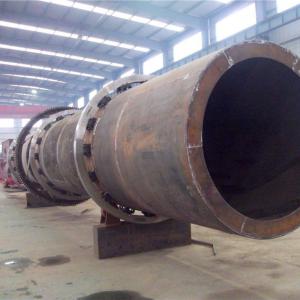

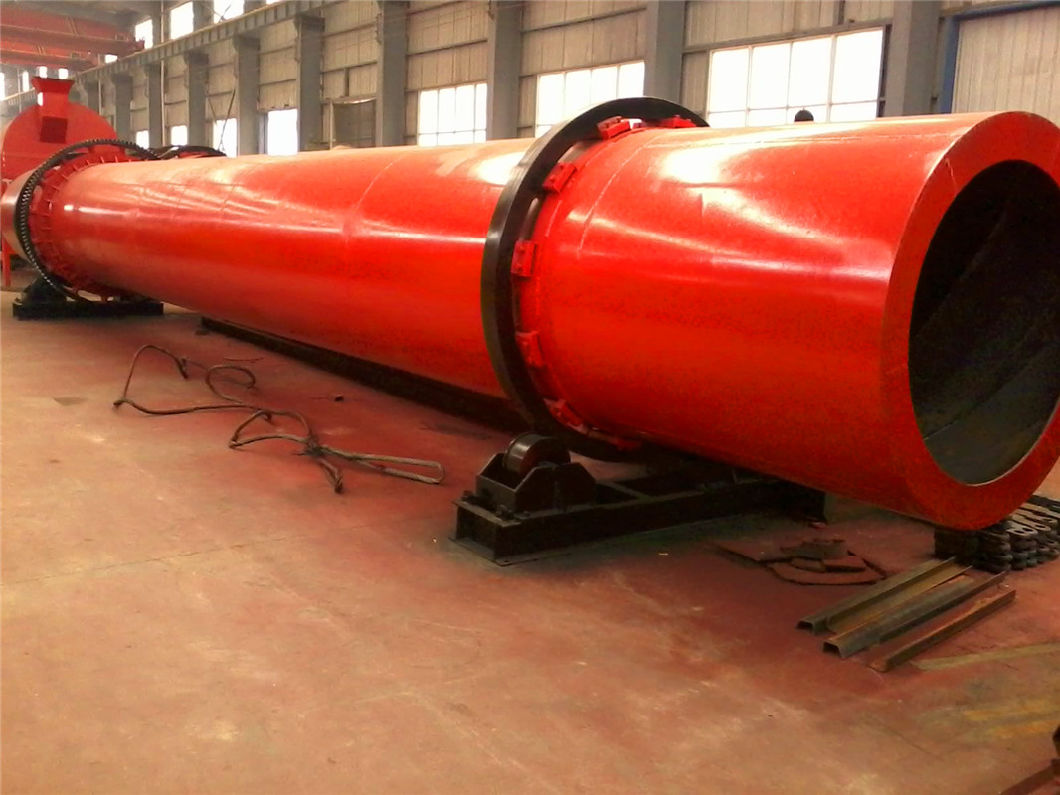

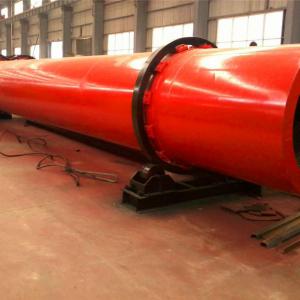

Introduction of rotary dryer:
1. rotary dryer is a kind of highly efficient, stable and reliable heating drying equipment.
2. And its performance is better than tube bundle rotary dryer, blade rotary dryer.
3. Drying machine adopts "center-adjusting roller device", making the cooperation of roller and rolling ring always show linear contact which greatly reduces the wear and power consumption.
4. This machinery is applied in the materials like coal slurry, mud, felted gypsum, Muddy, high-moisture swell soil, electroplate mud and so on.

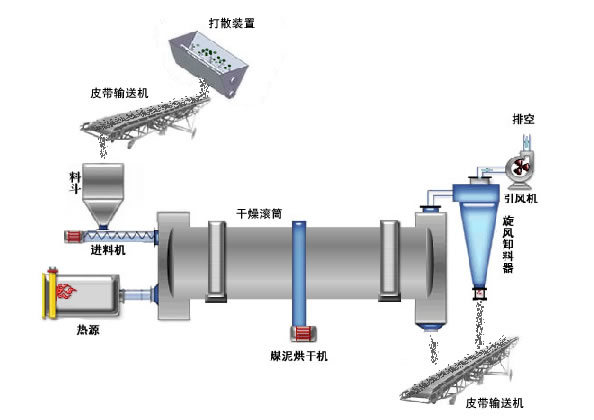

Working Principle of rotary dryer:
1 Materials are sent to hopper of dryer by belt conveyor or bucket elevator
2 Materials enter the barrel installed with slope to horizontal line from the higher side
3 Hot air enters the barrel from the lower side, and then materials and hot air mix together
4 Materials go to the lower side by gravity when the barrel is rotating
5 Lifters on the inner side of barrel lift materials up and down in order to make materials and hot air mix completely, which is designed to improve the producing efficiency of dryer drying machine.
Advantages of rotary dryer:
1. The rotary dryer has advantages of reasonable structure, high efficiency, low energy consumption and convenient transportation.
2. Performance Characteristics of sludge dryer: this series drier is used for drying materials with humidity or granularity in the industries of mineral dressing, building material, metallurgy and chemical.
3. It can be used for drying many kinds of materials and with convenient and reliable operation; therefore, it has been widely used.
Technical parameters of rotary dryer:
| Spec./m (Dia.×Length) | Shell Cubage (m³) | Capacity (t/h)) | Installation Obliquity (%) | Highest Inlet Air Temperature (ºC) | Main Motor (kw) | Weight (t) |
| Φ1.2×8.0 | 9.0 | 1.9-2.4 | 3-5 | 700-800 | 7.5 | 9 |
| Φ1.2×10 | 11.3 | 2.4-3.0 | 3-5 | 700-800 | 7.5 | 11 |
| Φ1.5×12 | 21.2 | 4.5-5.7 | 3-5 | 700-800 | 15 | 18.5 |
| Φ1.5×14 | 24.7 | 5.3-6.6 | 3-5 | 700-800 | 15 | 19.7 |
| Φ1.5×15 | 26.5 | 5.7-7.1 | 3-5 | 700-800 | 15 | 20.5 |
| Φ1.8×12 | 30.5 | 6.5-8.1 | 3-5 | 700-800 | 18.5 | 21.5 |
| Φ1.8×14 | 35.5 | 7.6-9.5 | 3-5 | 700-800 | 18.5 | 23 |
| Φ2.2×12 | 45.6 | 9.7-12.2 | 3-5 | 700-800 | 22 | 33.5 |
| Φ2.2×14 | 53.2 | 11.4-14.2 | 3-5 | 700-800 | 22 | 36 |
| Φ2.2×16 | 60.8 | 13.0-16.2 | 3-5 | 700-800 | 22 | 38 |
| Φ2.4×14 | 63.3 | 13.5-16.9 | 3-5 | 700-800 | 37 | 45 |
| Φ2.4×18 | 81.4 | 17.4-21.7 | 3-5 | 700-800 | 37 | 49 |
| Φ2.4×20 | 90.4 | 19.3-24.1 | 3-5 | 700-800 | 45 | 54 |
| Φ2.4×22 | 99.5 | 21.2-26.5 | 3-5 | 700-800 | 45 | 58 |
| Φ2.6×24 | 127.4 | 27.2-34.0 | 3-5 | 700-800 | 55 | 73 |
| Φ3.0×20 | 141.3 | 30.1-37.7 | 3-5 | 700-800 | 75 | 85 |
| Φ3.0×25 | 176.6 | 37.7-47.1 | 3-5 | 700-800 | 75 | 95 |
| Φ3.2×25 | 201 | 42.9-53.6 | 3-5 | 700-800 | 90 | 110 |
| Φ3.6×28 | 285 | 60.8-76.0 | 3-5 | 700-800 | 160 | 135 |
Service Pre-sale support:
We can enable them to get rich and generous returns on their investments:
1 Select equipment model;
2 Design and manufacture products according to clients' special requirement;
3 Train technical personnel for clients.
Services during the sale
We respect clients and always devote ourselves to improving the total value of clients:
1 Pre-check and accept products ahead of delivery;
2 help clients to draft solving plans.
After-sales service support

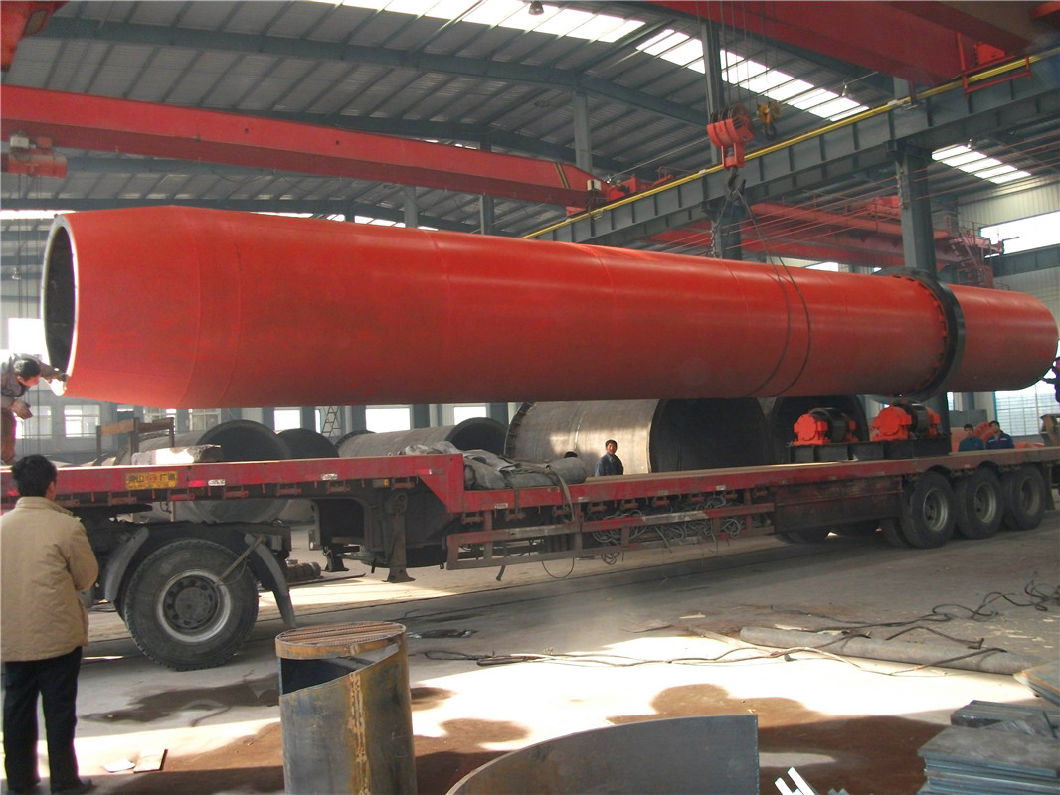

After we signed the purchase contract and have a certain reputation guarantee, we will contact the professional group that responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the perfect goods trading services, until the product you purchased properly to your hands.
