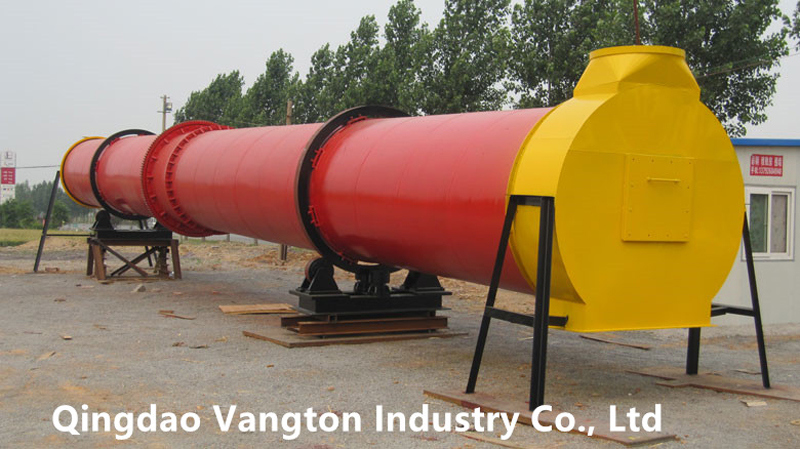

Drum dryer adopts low-speed rotarying,curved plate hammering,dispersing raw material to make high temperature air flow current mixed with raw material to achieve drying goal.It is applied to dry powder raw material.
Applications
1. It is suitable for drying raw materials that have large size and heavy specific gravity. For example: ore, slag of blast furnace, coal, metallic powder, phosphorus fertilizer, ammonium sulphate and so on.
2. It is suitable for powder, granule shape raw materials which have special requirements to drying. For example: GP vesicant, less, light calcium carbonate, active white earth, magnetic powder, graphite, medical slag and so on..
3. It is suitable for the material which need cooling, and need large quantity continuous operation.
4. If need high drying temperature should be noted when order.
5. Choose different methods of dust treatment such as cyclone separator, bag filter and washing tower according to the carbon content in tail gas.
6. Heat resource used: electricity, stream, heat pipe, furnace or waste heat.
Description
After the damp raw material is put into the rotating dryer by feeder, it is turned over through stirring-up rake inside the cylinder and distributed uniform in the drier and contacted with countercurrent hot air fully, it accelerate heat and mass transfer. This machine could be equipped with different rake in accordance with different material. It is simple in structure, convenient in maintenance and has a large capacity.
Technical Parameter of Rotary Dryer
OUR SERVIC
Pre-sale service
1.Our professional and experienced engineer team helps every client to find his most suitable equipment or chose of plant.
2. Any kind of legal logo printing or design are available.
3.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
After you choose:
1. We will make drawing and show you how the pant looks.
2. Every equipment will be checked carefully before packing. Video on machine testing is available.
3. Email you the tracking no., and help to chase the container until it arrives you.
After-sale service
1.We are very glad that customers give us some suggestion for price and products.
2.If you have any question,please contact us freely by E-mail or Telephone.
FAQ
Q. what is your payment term?
A: T/T 30% down payment, balance to be paid before shipment.
Q: what is your main market?
A: South America, Eastern Europe, Southeast Asia, Africa, Oceania, Eastern Asia
Q: what is your producing time?
A: Producing time depends on that machines you ordered. Usually takes 45 days.
Q: what documents you can offer?
A: We can offer invoice, packing list, contract, instructions, customs declaration, certificate of origin, CE. If client need other documents, specifications, please confirm with service staff.
Q: If equipments have some quality problem, how would you deal with?
A: We will responsible for all the quality problems. We will check the machine to get the problem. If need parts, will send them to you.
Q: how to install the equipments?
A: We send 1-2 engineer (100usd/person/day) to the local plant for helping install and commissioning equipments. To save time, our service stuff will tell you what to prepare in advance. We can also teach the workers to how to use the machines and how to make the products better.
Applications
1. It is suitable for drying raw materials that have large size and heavy specific gravity. For example: ore, slag of blast furnace, coal, metallic powder, phosphorus fertilizer, ammonium sulphate and so on.
2. It is suitable for powder, granule shape raw materials which have special requirements to drying. For example: GP vesicant, less, light calcium carbonate, active white earth, magnetic powder, graphite, medical slag and so on..
3. It is suitable for the material which need cooling, and need large quantity continuous operation.
4. If need high drying temperature should be noted when order.
5. Choose different methods of dust treatment such as cyclone separator, bag filter and washing tower according to the carbon content in tail gas.
6. Heat resource used: electricity, stream, heat pipe, furnace or waste heat.
Description
After the damp raw material is put into the rotating dryer by feeder, it is turned over through stirring-up rake inside the cylinder and distributed uniform in the drier and contacted with countercurrent hot air fully, it accelerate heat and mass transfer. This machine could be equipped with different rake in accordance with different material. It is simple in structure, convenient in maintenance and has a large capacity.
Technical Parameter of Rotary Dryer
| Model | Inner diameter (mm) | Power(kw) | Evaporation (t/h) | Feed water | Discharge water | Inlet temperature | Outlet temperature | Weight(t) |
| RD0.8*12m | 800 | 5.5 | 0.2-0.3 | 20-50% | 10-20% | 400-600°C | 60-90°C | 3 |
| RD1.0*12m | 1000 | 7.5 | 0.4-0.5 | 3.5 | ||||
| RD1.2*12m | 1200 | 7.5 | 0.4-0.5 | 4.2 | ||||
| RD1.4*12m | 1400 | 7.5 | 0.6-0.8 | 4.8 | ||||
| RD1.5*12m | 1500 | 7.5 | 0.8 | 6.2 | ||||
| RD1.6*12m | 1600 | 7.5 | 0.8-1 | 6.8 | ||||
| RD1.6*24m | 1600 | 15 | 1-0.2 | 12.8 | ||||
| RD1.8*12m | 1800 | 11 | 0.8 | 7.2 | ||||
| RD1.8*24m | 1800 | 15 | 1 | 14.8 | ||||
| RD2.0*12m | 2000 | 11 | 1.2 | 14.2 | ||||
| RD2.0*24m | 2000 | 15 | 1.5 | 25.9 | ||||
| RD2.2*12m | 2200 | 18.5 | 1.2 | 14.5 | ||||
| RD2.2*24m | 2200 | 22 | 1.8 | 28 | ||||
| RD2.5*12m | 2500 | 18.5 | 1.5 | 15.8 | ||||
| RD2.5*24m | 2500 | 22 | 1.8 | 23.8 | ||||
| RD2.8*12m | 2800 | 30 | 1.8 | 16.7 | ||||
| RD2.8*24m | 2800 | 37 | 2.4 | 31.5 |
