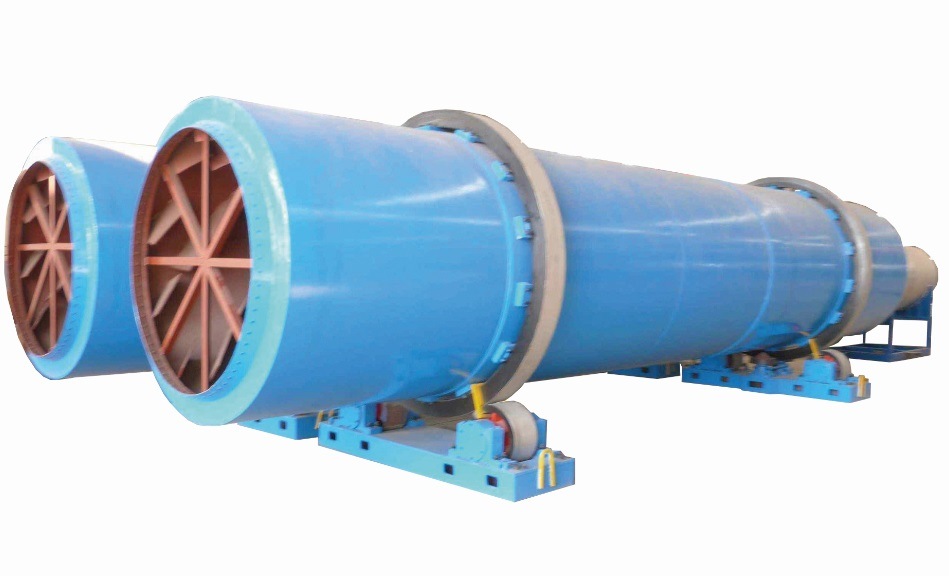

Telescoping three-drum-dryer It is designed in horizontal with three drums, compact and nice constructed, high heat exchange efficiency. Lesser investment is needed compare to a single drum dryer. It gives a sufficient heat exchange, maximum using of heat. On the other hand, automation can be easily achieved, thereafter manpower can be saved, also safety is secured, lower dust emission and smaller area are realized.
Features:
1.Use partial of the end product as fuel, no need for external fuel.
2.Equipped with 3-drum dryer, by means of fast drying process, increased the drying intensity.
3.Fuzzy control, on-line moisture monitoring and final dryness auto control system.
4.Special designed, equipped with fire prevention and explosion protection, minimized the explosion possibililty.
5.Sawdust cyclone burner stove and fuel auto-return stove, burning parameter auto-adjusting to control the pressure of the burner stove. Equipped with Hgh-Temperature alarming, flame monitoring, backfire alarming and fuel insolation device.
Company profile:
Wuxi Best Service & Responsibility Precision Machinery Co., Ltd is located at LuoShe Town, Wuxi, China, which is well known as land of plenty, we are dedicated at biomass pellet machinery and accessories engineering, manufacturing, installation, commissioning and sales. We have been continuously studying and innovating in biomass pellet machinery based on the existing machines, Meanwhile, we have been studying deeply of biomass energy development, absorbed domestic and foreign biomass pellets curing and forming technology, and developed high intelligent new generation biomass pellet curing and forming Best Service & Responsibility Precision Machinery Co., Ltd, Pellet Machinery, We broke through and achieved improvement in the curing and forming key stage, e.g. enhanced the main structure of the machine, improved ring-model material and quenching process, external press-roll bearing design, etc. Thus the machine running smoothly, low unexpected failure, stable production, and can achieve longtime continuous production, at the same time, extended the wear parts life time On the other hand, the new generation pellet machine is flexible and suitable for sawdust, bamboo shaves, peanut shells, rice husk, straws, agriculture & forestry wastes, etc.

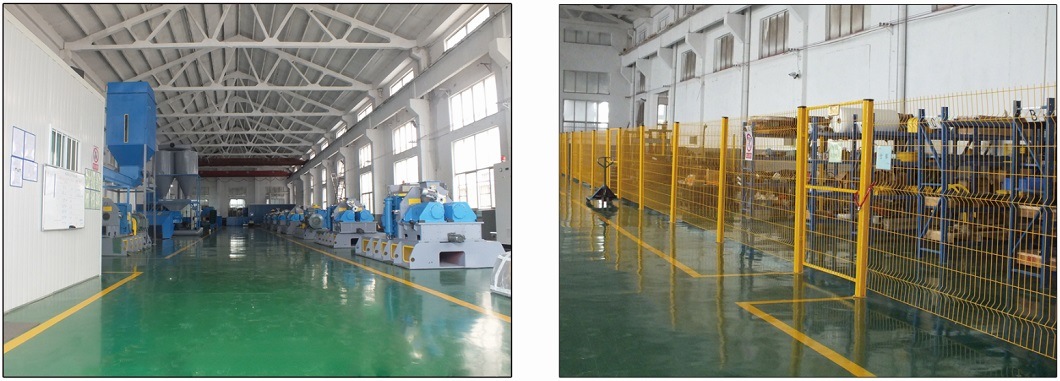

Workshop:
Certificate:
Team:
Features:
1.Use partial of the end product as fuel, no need for external fuel.
2.Equipped with 3-drum dryer, by means of fast drying process, increased the drying intensity.
3.Fuzzy control, on-line moisture monitoring and final dryness auto control system.
4.Special designed, equipped with fire prevention and explosion protection, minimized the explosion possibililty.
5.Sawdust cyclone burner stove and fuel auto-return stove, burning parameter auto-adjusting to control the pressure of the burner stove. Equipped with Hgh-Temperature alarming, flame monitoring, backfire alarming and fuel insolation device.
| Model | Φ1.5 Χ6 | Φ1.5Χ8 | Φ2.0Χ9 | Φ2.4Χ9 | Φ2.7Χ9 | Φ3Χ9 | Φ3.2Χ11 |
| Power | 3Χ2 | 5.5Χ2 | 5.5Χ2 | 7.5Χ2 | 7.5Χ2 | 11Χ2 | 11Χ2 |
| Capacity(T/h) Sawdust | 0.8 | 2 | 3 | 4 | 5 | 6 | 7 |
| Capacity(T/h) Straw | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 |
| Water content(%) Begin | 50-60 | 50-60 | 50-60 | 50-60 | 50-60 | 50-60 | 50-60 |
| Water content(%) End | 10-13 | 10-13 | 10-13 | 10-13 | 10-13 | 10-13 | 10-13 |
Company profile:
Wuxi Best Service & Responsibility Precision Machinery Co., Ltd is located at LuoShe Town, Wuxi, China, which is well known as land of plenty, we are dedicated at biomass pellet machinery and accessories engineering, manufacturing, installation, commissioning and sales. We have been continuously studying and innovating in biomass pellet machinery based on the existing machines, Meanwhile, we have been studying deeply of biomass energy development, absorbed domestic and foreign biomass pellets curing and forming technology, and developed high intelligent new generation biomass pellet curing and forming Best Service & Responsibility Precision Machinery Co., Ltd, Pellet Machinery, We broke through and achieved improvement in the curing and forming key stage, e.g. enhanced the main structure of the machine, improved ring-model material and quenching process, external press-roll bearing design, etc. Thus the machine running smoothly, low unexpected failure, stable production, and can achieve longtime continuous production, at the same time, extended the wear parts life time On the other hand, the new generation pellet machine is flexible and suitable for sawdust, bamboo shaves, peanut shells, rice husk, straws, agriculture & forestry wastes, etc.
Workshop:
Certificate:
Team:
