4-5t/H Dryer Cyclinder, Rotary Drum Dryer for Wood Sawdust/Chips/Straw
Introduction for rotary drum dryer
Sawdust drum dryer is also called rotary dryer. Rotary drum dryer is handling by bringing it into direct contact with a heated gas. The dryer is made up of a large rotating cylindrical tube, The dryer slopes slightly so that the discharge end is lower than the material feed end in order to convey the material through the dryer under.
Working principle for sawdust drum dryer,dryer, rotary dryer, drum dryer
Material to be dried enters the dryer, and as the dryer rotates, the material is lifted up by a series of internal fins lining the inner wall of the dryer. When the material gets high enough to roll back off the fins, it falls back down to the bottom of the dryer, passing through the hot gas stream as it falls. This gas stream can either be moving toward the discharge end from the feed end (known as co-current flow), or toward the feed end from the discharge end (known as counter-current flow). The gas stream can be made up of a mixture of air and combustion gases from a burner, in which case the dryer is called a direct heated dryer. Alternatively, the gas stream may consist of air or another (sometimes inert) gas that is preheated. When the gas stream is preheated by some means where burner combustion gases do not enter the dryer, the dryer known as an indirect-heated type. Often, indirect heated dryers are used when product contamination is a concern.
Technical parameters for dryer, rotary dryer, drum dryer
Photos for dryer
Our services:
(1) Warranty time: 1-2 years, from the date which the product is qualified commissioning. Any damage except the wrong operation during warranty period is repaired freely. But the travel and hotel expenses should be count on buyer.
(2) Commissioning services: the product's installation and commissioning at the demand side, our engineers will not leave there until get your agreement.
(3) Training services: our engineers will train your staff to operate it during the period of installation and commissioning, and they will not leave there until your staff can operate it properly and normally.
(4) Maintenance services: any malfunction happened, once you enquiry us, we will reply you within 48 hours except the special reasons.
(5) Lifelong services: we provide lifelong services for all the products we sold out, and supply the spare parts with discount price.
Welcome to visit our factory.
Liyang Weifeng Equipment CO.,ltd
Sawdust drum dryer is also called rotary dryer. Rotary drum dryer is handling by bringing it into direct contact with a heated gas. The dryer is made up of a large rotating cylindrical tube, The dryer slopes slightly so that the discharge end is lower than the material feed end in order to convey the material through the dryer under.
Working principle for sawdust drum dryer,dryer, rotary dryer, drum dryer
Material to be dried enters the dryer, and as the dryer rotates, the material is lifted up by a series of internal fins lining the inner wall of the dryer. When the material gets high enough to roll back off the fins, it falls back down to the bottom of the dryer, passing through the hot gas stream as it falls. This gas stream can either be moving toward the discharge end from the feed end (known as co-current flow), or toward the feed end from the discharge end (known as counter-current flow). The gas stream can be made up of a mixture of air and combustion gases from a burner, in which case the dryer is called a direct heated dryer. Alternatively, the gas stream may consist of air or another (sometimes inert) gas that is preheated. When the gas stream is preheated by some means where burner combustion gases do not enter the dryer, the dryer known as an indirect-heated type. Often, indirect heated dryers are used when product contamination is a concern.
Technical parameters for dryer, rotary dryer, drum dryer
| No. | Type (Drum's size) | Power(kw) | Capacity(t/h) |
| 1 | φ1.2*9m | 8.8+22 | 0.8-1 |
| 2 | φ1.5*9m | 8.8+30 | 2-3 |
| 3 | φ1.8*11m | 8.8+45 | 4-5 |

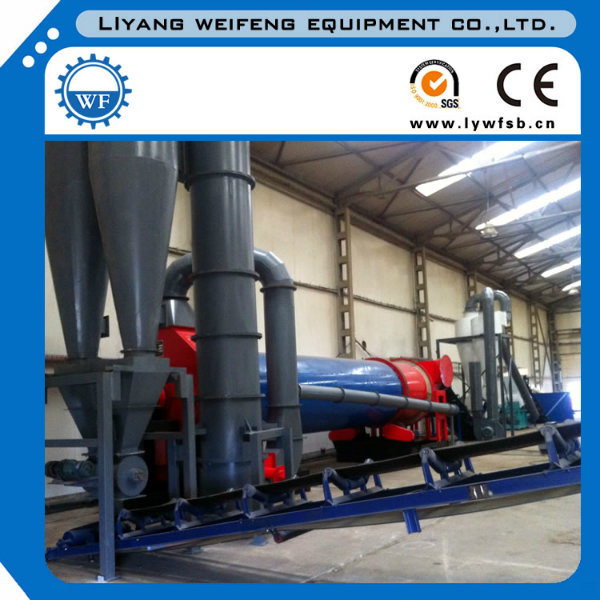

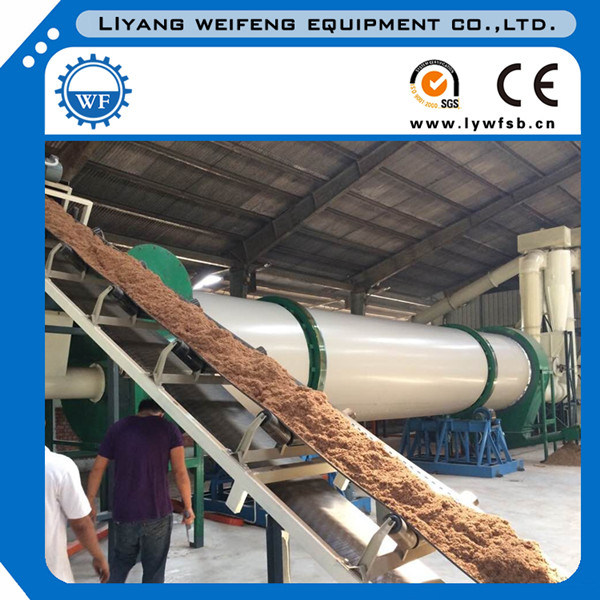

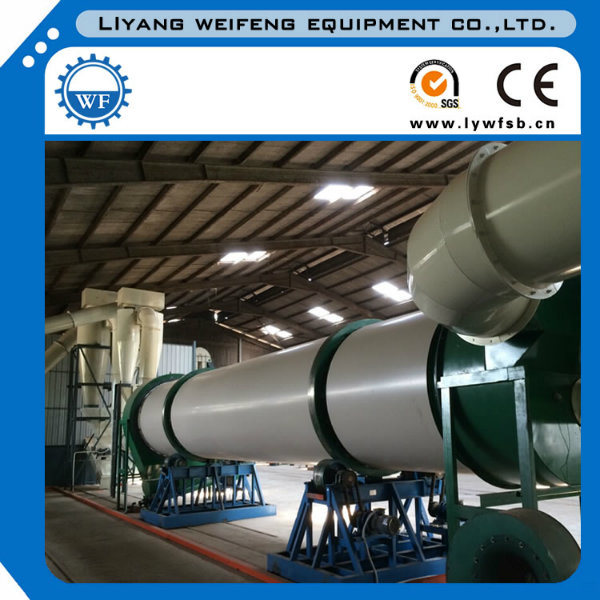

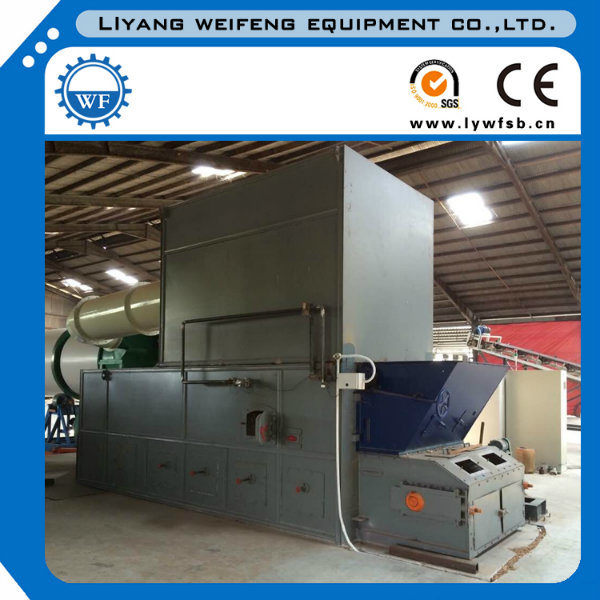

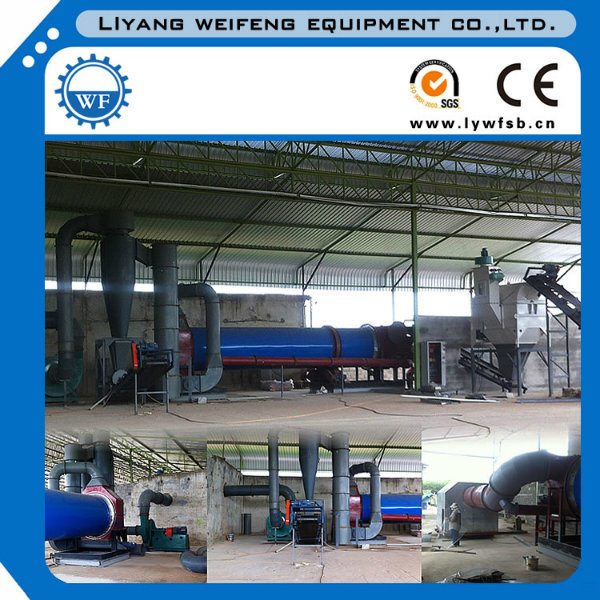

Photos for dryer
Our services:
(1) Warranty time: 1-2 years, from the date which the product is qualified commissioning. Any damage except the wrong operation during warranty period is repaired freely. But the travel and hotel expenses should be count on buyer.
(2) Commissioning services: the product's installation and commissioning at the demand side, our engineers will not leave there until get your agreement.
(3) Training services: our engineers will train your staff to operate it during the period of installation and commissioning, and they will not leave there until your staff can operate it properly and normally.
(4) Maintenance services: any malfunction happened, once you enquiry us, we will reply you within 48 hours except the special reasons.
(5) Lifelong services: we provide lifelong services for all the products we sold out, and supply the spare parts with discount price.
Welcome to visit our factory.
Liyang Weifeng Equipment CO.,ltd
China
