Good price industrial rotary drum dryer for sale
Product DescriptionThe rotary dryer is widely used for drying the chalk slags, coal powder, slags, clay and other materials in the building materials, metallurgy, chemical industry, cement industry. The rotary dryer has a better adaptability and can dry various materials with a simple and reliable operation.
Features of Rotary Dryer:

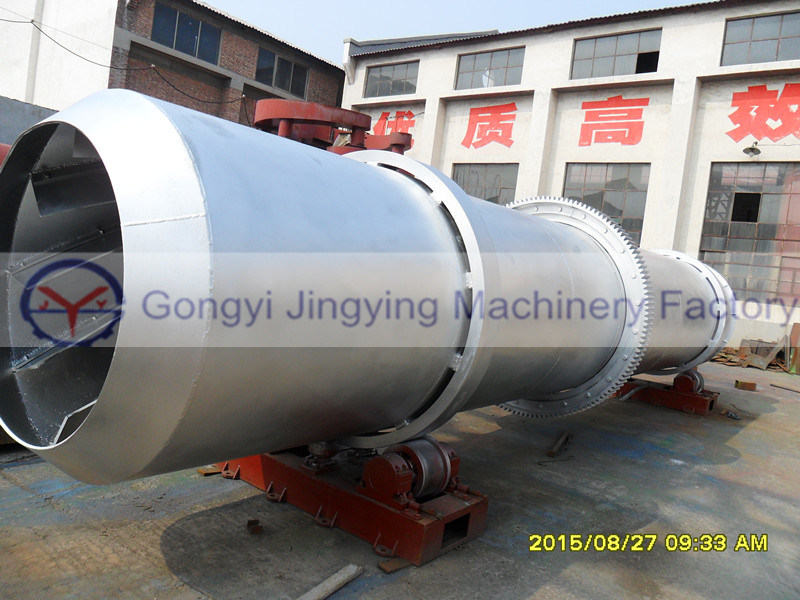

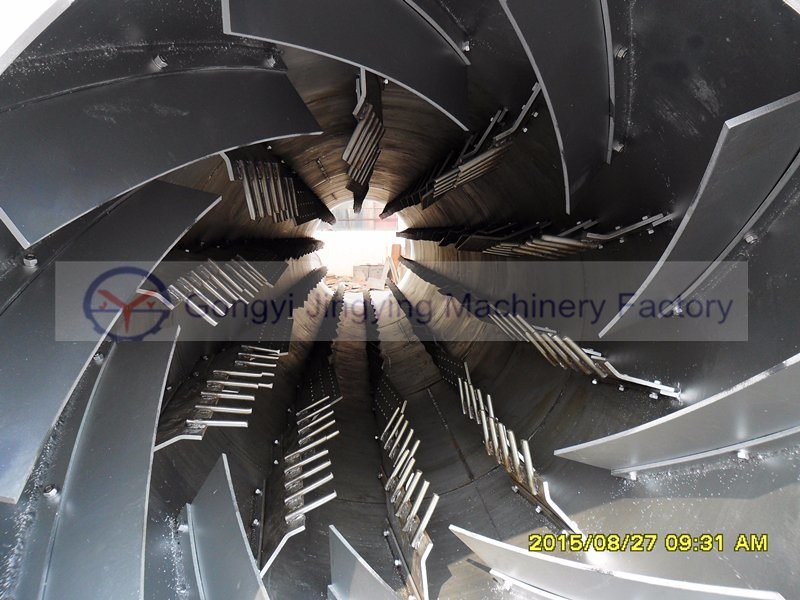

The rotary dryer is mainly composed by the revolving body, lifting plate, driving device, supporting device, sealing ring and other components. So it has the advantages of reasonable structure, perfect in workmanship, high yield, low energy consumption, convenient to operate.
Rotary Dryer Application & Composition:
The indirect heat transfer dryer made by our company can be used in building materials, metallurgy, chemical industry, cement plant for drying of limestone slag, coal powder, slag, clay stone. This dryer is formed of rotary body, lifting blade, driving device, supporting device and sealing ring.
Techinical Parameter of Rotary Dryer:
Model (mm) | Obliquity(%) | Rotation speed (r/min) | Feeding temperature (degree) | Power (kw) | Capacity(t/h) | Weight (t) |
600x6000 | 3-5 | 3-8 | <=700 | 3 | 0.5-1.5 | 2.9 |
800x8000 | 3-5 | 3-8 | <=700 | 4 | 0.8-2.0 | 3.5 |
800x10000 | 3-5 | 3-8 | <=700 | 4 | 0.8-2.5 | 4.5 |
1000x10000 | 3-5 | 3-8 | <=700 | 5.5 | 1.0-3.5 | 5.6 |
1200x10000 | 3-5 | 3-8 | <=700 | 7.5 | 1.8-5 | 14.5 |
1200x12000 | 3-5 | 3-8 | <=700 | 11 | 2-6 | 14.8 |
1500x12000 | 3-5 | 2-6 | <=800 | 15 | 3.5-9 | 17.8 |
1800x12000 | 3-5 | 2-6 | <=800 | 18 | 5-12 | 25 |
2200x12000 | 3-5 | 1.5-6 | <=800 | 18.5 | 6-15 | 33 |
2200x18000 | 3-5 | 1.5-6 | <=800 | 22 | 10-18 | 53.8 |
2200x20000 | 3-5 | 1.5-6 | <=800 | 30 | 12-20 | 56 |
2400x20000 | 3-5 | 1.5-5 | <=800 | 37 | 18-30 | 60 |
3000x20000 | 3-5 | 1.5-5 | <=800 | 55 | 25-35 | 78 |
3000x25000 | 3-5 | 1.5-5 | <=800 | 75 | 32-40 | 104.9 |
Certificate:
Company information:
Our top selling recycling machines are fullauto wood pellet machine,charcoal and coalbriquetting machine, metal shredders,industry crushers and brick producingMachines.
Welcome you to visit our factory!
