Estabilshed in 1989,Shanghai Jimei Food Machinery Co.,ltd is located in the high-tech development park,Jiading District.We are a company integrating scientific research,manufacturing and service and speciallizing in manufacturing liquid production lines like milk,beverage,etc.After years of development,Jimei Holding Groups has been walking in the forefront of the same industry in the field of food machinery manufacturing.We have passed ISO9001,national GMP Technology Standard Evaluation,Inspections by National Phamaceutial Equipment Inspection Center,and all products are designed and manufactured stricity according to standards such as ISO,SMS,IDF,DIN,QB/T2003,2004,3A as well ad our internal standards.
DESCRIPTION:
-Reception and storage of raw materials:
Dry products used in comparatively small quantities, such as whey powder, stabilizers and emulsifiers, cocoa powder, etc., are usually delivered in bags. Sugar and milk powder can be delivered in containers. Liquid products such as milk, cream, condensed milk, liquid glucose and vegetable fats are delivered by tankers.
-Formulation:
The ingredients used in ice cream production are: fat;milk solids-non-fat (MSNF);sugar/non-sugar sweetener;emulsifiers/stabilizers;flavouring agents;colouring agents.
-Weighing, measuring and mixing:
Generally speaking, all dry ingredients are weighed, whereas liquid ingredients can be either weighed or proportioned by volumetric meters.
-Homogenization and pasteurization:
The ice cream mix flows through a filter to a balance tank and is pumped from there to a plate heat exchanger where it is preheated to 73 - 75C for homogenization at 140 - 200 bar, the mix is pasteurized at 83 - 85C for about 15 seconds then cooled down to 5C and transferred to an ageing tank.
-Ageing:
The mix must be aged for at least 4 hours at a temperature between 2 to 5C with continuous gentle agitation. Ageing allows time for the stabilizer to take effect and the fat to crystallize.
-Continuous freezing:
• to whip a controlled amount of air into the mix;
• to freeze the water content in the mix to a large number of small ice crystals.
-Filling in cups, cones and containers;
-Extrusion of sticks and stickless products;
-Moulding of bars
-Wrapping and packaging
-Hardening and cold storage

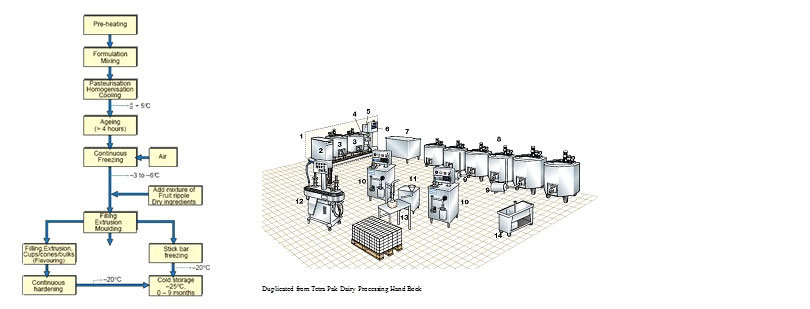

Figure shows ice cream products production line.
1. Ice cream mix preparation module containing
2. Water heater
3. Mixing and processing tank
4. Homogeniser
5. Plate heat exchanger
6. Control panel
7. Cooling water unit
8. Ageing tanks
9. Discharge pumps
10. Continuous freezers
11. Ripple pump
12. Filler
13. Manual Can filler
14. Wash unit
BENEFIT:
1.Opportunity to realize products with customized recipes.
2.Opportunity to produce more than one product with the same processing line.
3.Accurate dosing of mixing and additional aromas.
4.Wide customization of the final product.
5.Maximum yield, minimum production waste.
6.Highest energy savings thanks to the most advanced technologies.
7.Complete line supervision system through monitoring of every process phase.
8.Recording, visualization and printing of all daily production data.
| Raw material | pure water, CO2, suger, etc |
| Products | - Soft ice cream - Ice cream with flavor - Ice cream with nut - Sherbet ice cream - Dessert ice - Water ice - Ice cream in varied package: Paper/plastic cups; paper/plastic carton; corn; ice bar |
1.Management Excellence
The company adopts modern enterprise management system and operation system,focuses on scientific and standard enterprise management and devotes itself to the mutual cooperation and coordingation between each organization and each functioning department,so as to provide a wide space for the development of the enterprise and the talents.
2.production and equipment
Advanced production equipment and excellent production lines both show first-class quality.Technical experts'directly involved in the production gurantee stable and reliable products.The increasing sense of superiority and endless supply of high-quality seeking perfection will never change.
3.Testing Equipment
Jimei is always closely associated with innovative technology,Each product of Jimei has not only exhibited its charm in oppearangce and internal quality,but it is also the crystallization of scientific technology and production practice.As the proverb says,seeing is believing,and we say,inspecting is believing.Welcome to cooperate and negotiate with Jimei to exprience the endless charm of high quality Jimei series products.
Consumer Notice.
Our engineer will make proposal based on your requirement .please help answer below questions.
We are manufacturer,factory inspection is available all of the time.
1.What is your raw material,fresh milk or milk powder?
2.What is your production capacity?
3.What is your package,carton,bottle,cup or other?
4.your milk is UHT or pasteurized milk?
5.could you send a picture of your packing way, showing the material, the volume,and the size?
