Automatic Weighing and Mixing System Machine

             CRS Automatic weighing and mixing systemDescription It is an automatic ingredient weighing and mixing system for the slurry pre-cooking of confectionery and beverage solution.CRS Series syrup preparation system not only off

Technical Feature

  • Shanghai, China
  • 1set/Month
  • L/C, T/T, D/P, Western Union, Paypal, Money Gram
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Model NO.
CRS600
Power Source
Electric
Automatic Grade
Automatic
Customized
Customized
Capacity
600kg
Compressed Air Requirement
0.4~0.6 0.5L/H
Dimensions
2500X1300X3500mm
Trademark
Shinwei
Specification
2500*1300*3500mm
HS Code
84382000
Certification
CE, ISO9001
Process
Thermal Processing
Application
Candy
Model
Crs600
Steam Requirement
0.3~0.6MPa 100kg/H
Total Power
8kw
Machine Weight
1600kg
Transport Package
Wooden Carton
Origin
Shanghai

DETAIL DESCRIPTION

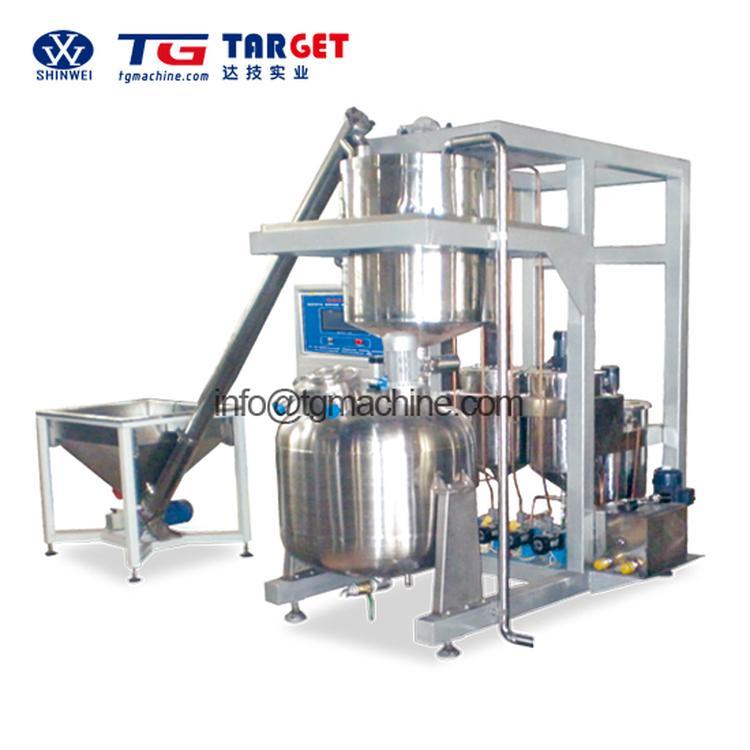

             CRS Automatic weighing and mixing system
Description

 It is an automatic ingredient weighing and mixing system for the slurry pre-cooking of confectionery and beverage solution.

CRS Series syrup preparation system not only offers automatic weighing,dissolving and mixing of raw material with transport to one or more production units but also forms a basis for the continuous production. It is an automatic ingredient weighing and mixing system for the slurry pre-cooking of confectionery and beverage solution.
The sugar, glucose and other raw materials are automatic weighing and mixing installation. The recip is programmed and stored in the memory; the ingredients are weighed correctly to keep on going into the mixing vessel. Once the total ingredients are fed into the vessel, after the mixing, the syrup then will be transferred to the holding tank for other solutions.

Parameter

Model
CRS600
CRS1200
Capacity
500KG
1000KG
Power
8kW
12kW
Steam requirement
0.3-0.6Mpa; 100kg/h
0.3-0.6Mpa; 180kg/h
Compressed air requirement
0.4-0.6Mpa; 0.5L/h
0.4-0.6Mpa; 0.7L/h
Dimension
2500×1300×3500mm
3000×1500×3500mm
Weight
1600kg
2000kg
Above specifications subject to designed requirement to be changed without notice!

Automatic Weighing and Mixing System Machine


Profile
Shanghai Target Industry Co., Ltd is the sales and service company for Shanghai SHINWEI Machinery Manufacturing Co., Ltd which is the first manufacturer to build the complete production line for depositing hard candies in China and has accumulated 40 years' fabrication experience. It is also one of the leading and professional exporters in China by providing customers home and abroad with high quality confectionery, chocolate, biscuit and packaging machinery. Our machineries have been exported to East European, south America, middle east, southeast Asia.
As the first-class corporation for fabrication of confectionery, chocolate, biscuit and packaging machinery, Target Industry offers not only the advanced equipment with competitive and economical efficiency, but the whole solutions for the customer's demands also. We provide the design, production, assembly and commissioning work of small or medium confectionery and biscuit machines in accordance with the customer's specific requirements.
For further information, please visit: www.tgmachine.com
Strength
Why choose us?
a.Established in 1982, nearly 20-year experiences in the area of machinery manufacturing of food processing;
b.Cooperate with well-known enterprises for some mechanical parts;
c.Adopt environment-friendly and food-grade materials;
d.Offer customized machineries and give suggestion for plant layout.
Services
After-sale services for all the customers
a. Free training of machine installation, operation and maintenance will be provided;
b. Some spare parts will be sent together with the machine for free and some spare parts are always at favorable price for regular customers;
c.Technical support will be offered by call, email or video etc;
d.If necessary, our engineer will go to your factory for machine installation, adjustment or maintenance.
