Name: Tire Rasper
Function: To furthur reduce the size of used tyres to 10-20mm wire-free chips.
Objects: 50-150mm chips from Tire Shredder
Tyre Chips' Usage: Plantground, plant mulch, etc.
More Details

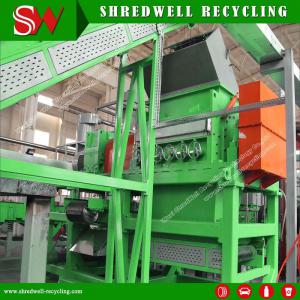

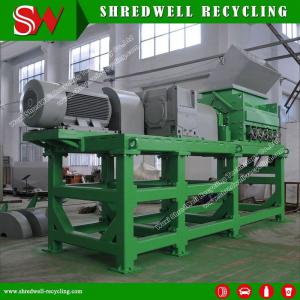

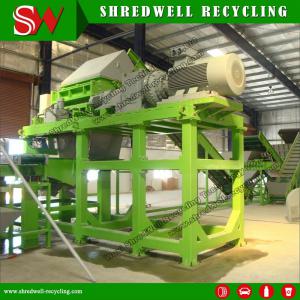

Shredwell RR series Scrap Tire Shredding Rasper is specially designed to take wire out of pre-shredded tire chips and produce wire free rubber chips between 10-20mm. It is the secondary cutting in whole tire recycling process.
Our patented design allows it to seperate th ewire from rubber tires in the purest, cleanest form possible, allowing processors to generate revenue from both rubber and wire.
Main Features
*The rotor is manufactured and designed for minimum wear;
*Easily exchangeable blades and screens enable the possibility to maintain the machine efficiently;
*Screens with different hole sizes available for flexible production;
*The internal wear surfaces are lined with replaceable wear liners that are easily changed when worn.This exclusive feature of rasper eliminates the need for any maintenance welding and results in greater machine uptime.

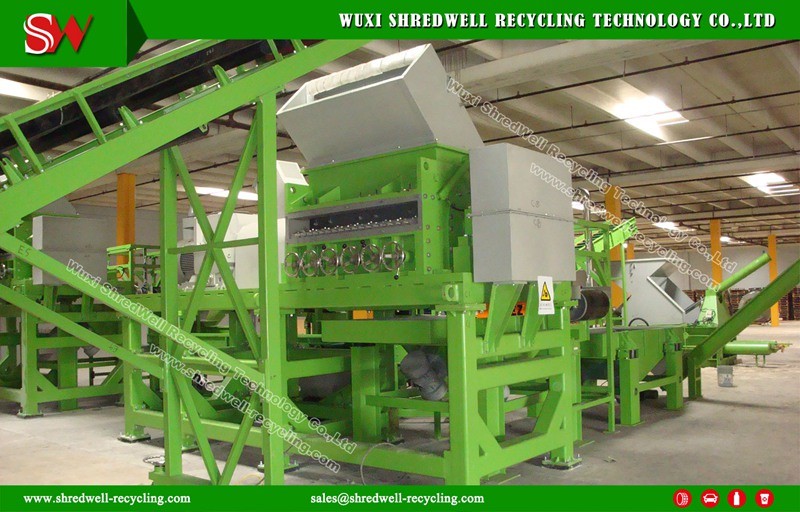

Wire Free Mulch Line ( Shredwell TSM Line )
With the whole set of our Tyre Shredder Line ( Shredwell TDS Line ) , and with our assisting machines like Vibratory Conveyor, Magnet Seperator, Auger, you could have a complete Wire Free Mulch Line which shreds tyres into uniform chips of 10-20mm at your disposal or for further processing.
Tire Rasper Specification
Our Support, Your Relief
1. Pre-sale support
*Shredwell is composed of experienced specialists, our sales are engineers too, we will offer a suitable solution
according client's requirements in time and 24 hours service is probided.
*On-site inspection
2. After-sale service

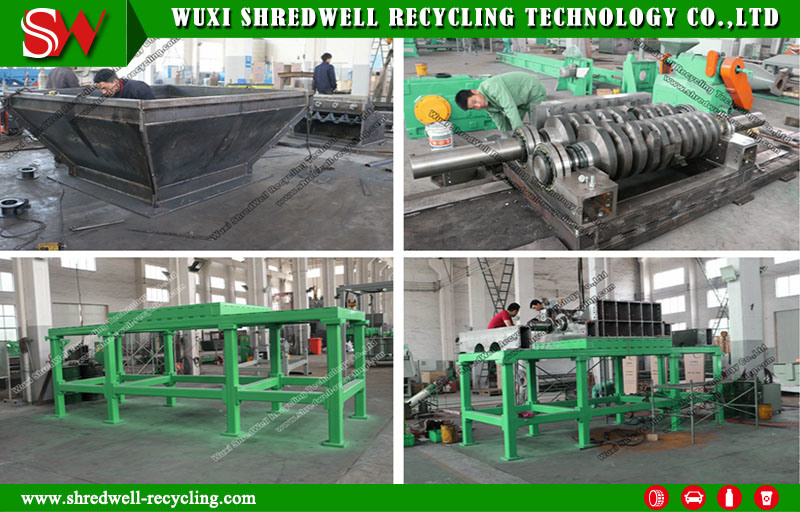

*Production process follow up, on-processing products' pictures and technical report are supplied regularly to make sure the contracted production schedule.
*Shredwell skilled technicians are available to assist with onsite installation, commissioning & training on request. This will enable customers to optimize the performance of their new plant. Customers will be briefed on all aspects relating to operation and maintenance by a Shredwell technician. Dimensional drawings together with service requirements will be provided prior to delivery of the equipment, which make time for our customer to prepare the site and commence production in time.
3. Technical support
*Shredwell provides enough hardware resource especially for large-scale production lines, clients can carry out installation, commissioning and acceptance before delivery.
Company Introdution
Wuxi Shredwell Recycling Technology Co.,Ltd is an integrated enterprise that is committed to developing, designing, manufacturing, selling and installing shredding recycling machinery. Our equipment is based on self-owned intellectual property and has advanced European and American technology.
Shredwell has now been in the shredding and recycling industry for more than 10years. Our engineering team has around 15 years experience in designing and manufacturing tire shredding machine systems. Our workforce has more than 5 years experience in manufacturing shredding machinery. Our company has advanced technologies, anexperirenced workforce and excellent innovative management systems designed to manufacture safe, energy-saving, stable and reliable shredding machine systems.
Shredwell is located in Wuxi, China, covering an area of more than thirty thousand square meters, and has a modernized technology center and all kinds of processing and testing equipment with more than 100 experienced staff including over 30 professional engineers. Our main focus is to provide our customers cost-effective tire recycling systems ranging from TDS system(50-100mm output chips), TSM system(20mm output wire free chips), TSC system (1-5mm rubber crumb), TSP system(30-120mesh rubber powder).
Our experienced after-sales service team can ensure the most timely installation, testing and training in the customer's workshop. Our mission is to provide our customers the best recycling solutions with high quality service and technology.
More Choices
For recycling tyres, now we have four main type machines for four recycling lines for cutting tyres into chips of different sizes.
Output: 50-150 mm tyre chips
Main machine: Tire Shredder
Line: Tyre Shredder Line ( Shredwell TDS Line )
Output: 10-20 mm
Main machines: Tire Shredder, Tyre Rasper
Line: Wire Free Mulch Line ( Shredwell TSM Line )
Output: 0-5 mm
Main machines: Tire Shredder, Tyre Rasper, Tyre Granulator
Line: Rubber Crumb Plant ( Shredwell TSC Line )
Output: 30-120 mesh
Main machines: Tire Shredder, Tyre Rasper, Tyre Granulator, Tyre Powderizer
Line: Rubber Powder Plant ( Shredwell TSP Line )
Proposal & Quotation
For making a complete proposal and quotation for you, I need to know more about your specific needs.
A. The proposal would include:
1. The engineering drawing for your tire recycling plant which tells you the correct plant layout.
2. A complete equipment list with detailed machine introduction and technical parameter will be sent to you.
3.The project report which finished by our engineers to tell you the number of workers needed and consumption of electricity and other details including the analysis of profit maximization for your plant.
B. We need to know:
1. What's the input sizes of tires?
2m-4.2m in diameter tires ( like OTR, etc.)
0.8m-1.2m in diameter tires ( like truck tire, etc.)
0.4m-0.8m in diameter tires (like car tire, bus tire, etc.)
2. Output sizes?
50-150mm rubber chips (for like using as fuel, road application)
10-20mm wire free mulch (for like plantground, plant mulch)
1-5mm wire-free and nylon-free crumb (for like making pavement bricks)
30-120mesh wire-free and nylon-free powder (for like roofing materials)
3. How many tons per hour do you need this system to process?
The capacity as per your request.
More Infomation
For more relevant information and videos, please check our web page at www.shredwell-recycling.com,
You're sincerely welcomed to visit our factory and contact us for sending you project proposals.
We're in Wuxi whose train station is one hour away from Shanghai by train.
Function: To furthur reduce the size of used tyres to 10-20mm wire-free chips.
Objects: 50-150mm chips from Tire Shredder
Tyre Chips' Usage: Plantground, plant mulch, etc.
More Details
Shredwell RR series Scrap Tire Shredding Rasper is specially designed to take wire out of pre-shredded tire chips and produce wire free rubber chips between 10-20mm. It is the secondary cutting in whole tire recycling process.
Our patented design allows it to seperate th ewire from rubber tires in the purest, cleanest form possible, allowing processors to generate revenue from both rubber and wire.
Main Features
*The rotor is manufactured and designed for minimum wear;
*Easily exchangeable blades and screens enable the possibility to maintain the machine efficiently;
*Screens with different hole sizes available for flexible production;
*The internal wear surfaces are lined with replaceable wear liners that are easily changed when worn.This exclusive feature of rasper eliminates the need for any maintenance welding and results in greater machine uptime.
Wire Free Mulch Line ( Shredwell TSM Line )
With the whole set of our Tyre Shredder Line ( Shredwell TDS Line ) , and with our assisting machines like Vibratory Conveyor, Magnet Seperator, Auger, you could have a complete Wire Free Mulch Line which shreds tyres into uniform chips of 10-20mm at your disposal or for further processing.
Tire Rasper Specification
| Rasper | RR315 | RR135 | RR90 | RR75 |
| Motor | Siemens | Siemens | Siemens | Siemens |
| Power | 315kw | 135kw | 90kw | 75kw |
| Voltage | as per request | as per request | as per request | as per request |
| Cutting chamber(L*W) | 700*1560mm | 740*1200mm | 550*1000mm | 550*800mm |
| Equipment dimension | 6220*2170*3560mm | 2010*2560*4110mm | 2090*2180*4100mm | 1990*1980*4100mm |
| Weight | 24000kg | 13500kg | 9200kg | 8500kg |
| Hopper opening | 1730*880*910mm | 1410*910*1410mm | 1190*710*1250mm | 980*700*1260mm |
| Capacity | 3-6t/h | 1.5-3t/h | 1-1.5t/h | 0.7-1t/h |
| Final product | 10-30mm | 10-30mm | 10-30mm | 10-30mm |
Our Support, Your Relief
1. Pre-sale support
*Shredwell is composed of experienced specialists, our sales are engineers too, we will offer a suitable solution
according client's requirements in time and 24 hours service is probided.
*On-site inspection
2. After-sale service
*Production process follow up, on-processing products' pictures and technical report are supplied regularly to make sure the contracted production schedule.
*Shredwell skilled technicians are available to assist with onsite installation, commissioning & training on request. This will enable customers to optimize the performance of their new plant. Customers will be briefed on all aspects relating to operation and maintenance by a Shredwell technician. Dimensional drawings together with service requirements will be provided prior to delivery of the equipment, which make time for our customer to prepare the site and commence production in time.
3. Technical support
*Shredwell provides enough hardware resource especially for large-scale production lines, clients can carry out installation, commissioning and acceptance before delivery.
Company Introdution
Wuxi Shredwell Recycling Technology Co.,Ltd is an integrated enterprise that is committed to developing, designing, manufacturing, selling and installing shredding recycling machinery. Our equipment is based on self-owned intellectual property and has advanced European and American technology.
Shredwell has now been in the shredding and recycling industry for more than 10years. Our engineering team has around 15 years experience in designing and manufacturing tire shredding machine systems. Our workforce has more than 5 years experience in manufacturing shredding machinery. Our company has advanced technologies, anexperirenced workforce and excellent innovative management systems designed to manufacture safe, energy-saving, stable and reliable shredding machine systems.
Shredwell is located in Wuxi, China, covering an area of more than thirty thousand square meters, and has a modernized technology center and all kinds of processing and testing equipment with more than 100 experienced staff including over 30 professional engineers. Our main focus is to provide our customers cost-effective tire recycling systems ranging from TDS system(50-100mm output chips), TSM system(20mm output wire free chips), TSC system (1-5mm rubber crumb), TSP system(30-120mesh rubber powder).
Our experienced after-sales service team can ensure the most timely installation, testing and training in the customer's workshop. Our mission is to provide our customers the best recycling solutions with high quality service and technology.
More Choices
For recycling tyres, now we have four main type machines for four recycling lines for cutting tyres into chips of different sizes.
Output: 50-150 mm tyre chips
Main machine: Tire Shredder
Line: Tyre Shredder Line ( Shredwell TDS Line )
Output: 10-20 mm
Main machines: Tire Shredder, Tyre Rasper
Line: Wire Free Mulch Line ( Shredwell TSM Line )
Output: 0-5 mm
Main machines: Tire Shredder, Tyre Rasper, Tyre Granulator
Line: Rubber Crumb Plant ( Shredwell TSC Line )
Output: 30-120 mesh
Main machines: Tire Shredder, Tyre Rasper, Tyre Granulator, Tyre Powderizer
Line: Rubber Powder Plant ( Shredwell TSP Line )
Proposal & Quotation
For making a complete proposal and quotation for you, I need to know more about your specific needs.
A. The proposal would include:
1. The engineering drawing for your tire recycling plant which tells you the correct plant layout.
2. A complete equipment list with detailed machine introduction and technical parameter will be sent to you.
3.The project report which finished by our engineers to tell you the number of workers needed and consumption of electricity and other details including the analysis of profit maximization for your plant.
B. We need to know:
1. What's the input sizes of tires?
2m-4.2m in diameter tires ( like OTR, etc.)
0.8m-1.2m in diameter tires ( like truck tire, etc.)
0.4m-0.8m in diameter tires (like car tire, bus tire, etc.)
2. Output sizes?
50-150mm rubber chips (for like using as fuel, road application)
10-20mm wire free mulch (for like plantground, plant mulch)
1-5mm wire-free and nylon-free crumb (for like making pavement bricks)
30-120mesh wire-free and nylon-free powder (for like roofing materials)
3. How many tons per hour do you need this system to process?
The capacity as per your request.
More Infomation
For more relevant information and videos, please check our web page at www.shredwell-recycling.com,
You're sincerely welcomed to visit our factory and contact us for sending you project proposals.
We're in Wuxi whose train station is one hour away from Shanghai by train.
