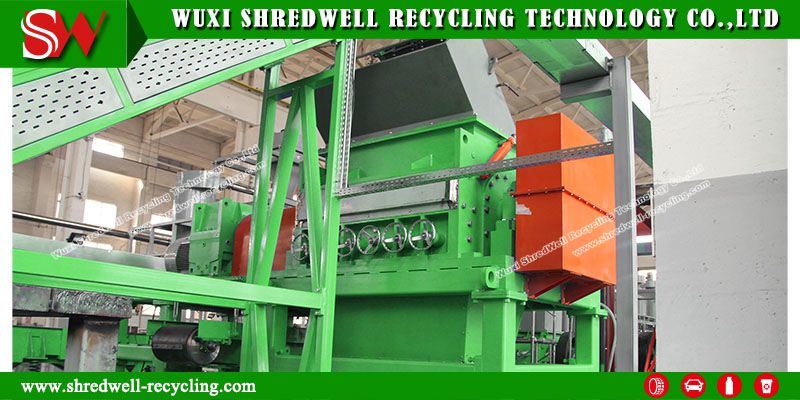

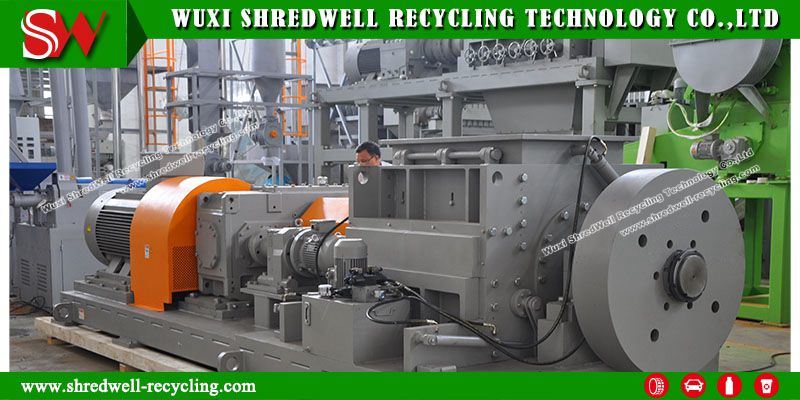

Steel removing rasper for used tyre recycling(RR315)
Shredwell rasper is used for primary size reduction of material,it's patented design allows it to separate the wire from rubber tires in the purest, cleanest form possible, allowing processors to generate revenue streams from both rubber and wire.
Main features:
*The rotor is manufactured and designed for minimum wear;
* Easily exchangeable blades and screens enable the possibility to maintain the machine efficiently;
*Screens with different hole sizes available for flexible production;
*The internal wear surfaces are lined with replaceable wear liners that are easily changed when worn.This exclusive feature of rasper eliminates the need for any maintenance welding and results in greater machine uptime.
Rasper Specification:

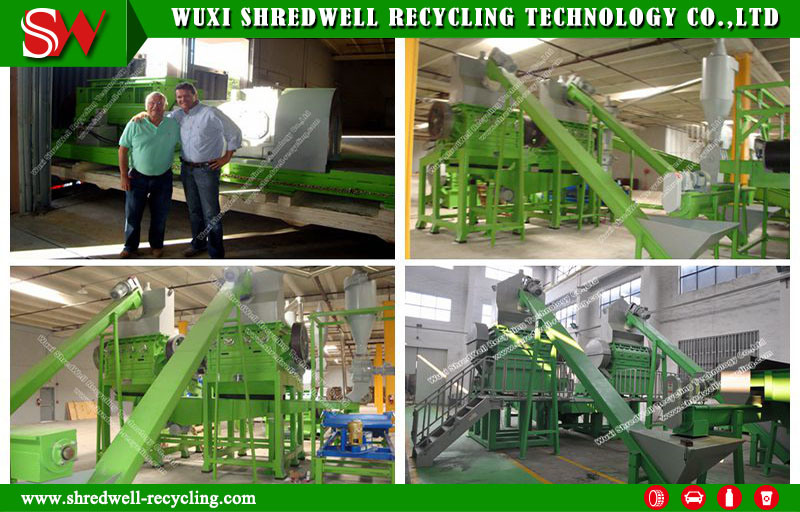

Case1 in Belgium
Case2 in South America
Our service
1. Pre-sale support
*Shredwell is composed of experienced specialists, our sales are engineers too, we will offer a suitable solution according client's requirements in time and 24 hours service is probided.
*On-site inspection
2. After-sale service
*Production process follow up, on-processing products' pictures and technical report are supplied regularly to make sure the contracted production schedule.
*Shredwell skilled technicians are available to assist with onsite installation, commissioning & training on request. This will enable customers to optimize the performance of their new plant. Customers will be briefed on all aspects relating to operation and maintenance by a Shredwell technician. Dimensional drawings together with service requirements will be provided prior to delivery of the equipment, which make time for our customer to prepare the site and commence production in time.
3. Technical support
*Shredwell provides enough hardware resource especially for large-scale production lines, clients can carry out installation, commissioning and acceptance before delivery.

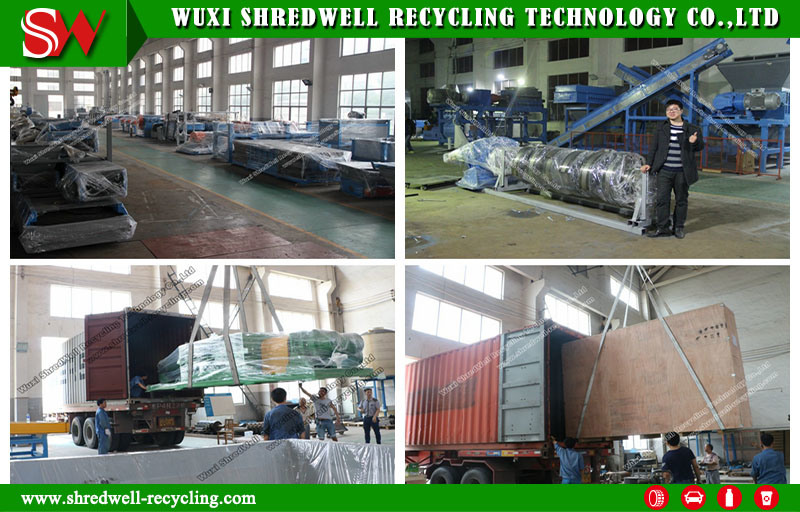

Delivery &Shipping
1.A layer of plastic wraps to protect rasper from dust, moisture and corrosion.
2.Wooden case is used as the outside package. Or according to the customer requirements.
3.Excellant logistic team to guarantee the shredder machines to be safely shipped to customer warehouse, no extra fee on export or import on custom.
Our Company
Wuxi Shredwell Recycling Technology Co.,Ltd is an integrated enterprise that is committed to developing, designing, manufacturing, selling and installing shredding recycling machinery. Our equipment is based on self-owned intellectual property and has advanced European and American technology.
Shredwell has now been in the shredding and recycling industry for more than 10years. Our engineering team has around 15 years experience in designing and manufacturing tire shredding machine systems. Our workforce has more than 5 years experience in manufacturing shredding machinery. Our company has advanced technologies, an experirenced workforce and excellent innovative management systems designed to manufacture safe, energy-saving, stable and reliable shredding machine systems.
Shredwell is located in Wuxi, China, covering an area of more than thirty thousand square meters, and has a modernized technology center and all kinds of processing and testing equipment with more than 100 experienced staff including over 30 professional engineers. Our main focus is to provide our customers cost-effective tire recycling systems ranging from TDS system(50-100mm output chips), TSM system(20mm output wire free chips), TSC system(1-5mm rubber crumb), TSP system(30-120mesh rubber powder)
Our experienced after-sales service team can ensure the most timely installation, testing and training in the customer's workshop. Our mission is to provide our customers the best recycling solutions with high quality service and technology.
Professinal used tyre rasper supplier: Shredwell recycling
Shredwell rasper is used for primary size reduction of material,it's patented design allows it to separate the wire from rubber tires in the purest, cleanest form possible, allowing processors to generate revenue streams from both rubber and wire.
Main features:*The rotor is manufactured and designed for minimum wear;
* Easily exchangeable blades and screens enable the possibility to maintain the machine efficiently;
*Screens with different hole sizes available for flexible production;
*The internal wear surfaces are lined with replaceable wear liners that are easily changed when worn.This exclusive feature of rasper eliminates the need for any maintenance welding and results in greater machine uptime.
Rasper Specification:
| Rasper | RR315 | RR135 | RR90 | RR75 |
| Motor | Siemens | Siemens | Siemens | Siemens |
| Power | 315kw | 135kw | 90kw | 75kw |
| Voltage | as per request | as per request | as per request | as per request |
| Cutting chamber(L*W) | 700*1560mm | 740*1200mm | 550*1000mm | 550*800mm |
| Equipment dimension | 6220*2170*3560mm | 2010*2560*4110mm | 2090*2180*4100mm | 1990*1980*4100mm |
| Weight | 24000kg | 13500kg | 9200kg | 8500kg |
| Hopper opening | 1730*880*910mm | 1410*910*1410mm | 1190*710*1250mm | 980*700*1260mm |
| Capacity | 3-6t/h | 1.5-3t/h | 1-1.5t/h | 0.7-1t/h |
| Final product | 10-30mm | 10-30mm | 10-30mm | 10-30mm |
Case1 in Belgium
Case2 in South America
Our service
1. Pre-sale support
*Shredwell is composed of experienced specialists, our sales are engineers too, we will offer a suitable solution according client's requirements in time and 24 hours service is probided.
*On-site inspection
2. After-sale service
*Production process follow up, on-processing products' pictures and technical report are supplied regularly to make sure the contracted production schedule.
*Shredwell skilled technicians are available to assist with onsite installation, commissioning & training on request. This will enable customers to optimize the performance of their new plant. Customers will be briefed on all aspects relating to operation and maintenance by a Shredwell technician. Dimensional drawings together with service requirements will be provided prior to delivery of the equipment, which make time for our customer to prepare the site and commence production in time.
3. Technical support
*Shredwell provides enough hardware resource especially for large-scale production lines, clients can carry out installation, commissioning and acceptance before delivery.
Delivery &Shipping
1.A layer of plastic wraps to protect rasper from dust, moisture and corrosion.
2.Wooden case is used as the outside package. Or according to the customer requirements.
3.Excellant logistic team to guarantee the shredder machines to be safely shipped to customer warehouse, no extra fee on export or import on custom.
Our Company
Wuxi Shredwell Recycling Technology Co.,Ltd is an integrated enterprise that is committed to developing, designing, manufacturing, selling and installing shredding recycling machinery. Our equipment is based on self-owned intellectual property and has advanced European and American technology.
Shredwell has now been in the shredding and recycling industry for more than 10years. Our engineering team has around 15 years experience in designing and manufacturing tire shredding machine systems. Our workforce has more than 5 years experience in manufacturing shredding machinery. Our company has advanced technologies, an experirenced workforce and excellent innovative management systems designed to manufacture safe, energy-saving, stable and reliable shredding machine systems.
Shredwell is located in Wuxi, China, covering an area of more than thirty thousand square meters, and has a modernized technology center and all kinds of processing and testing equipment with more than 100 experienced staff including over 30 professional engineers. Our main focus is to provide our customers cost-effective tire recycling systems ranging from TDS system(50-100mm output chips), TSM system(20mm output wire free chips), TSC system(1-5mm rubber crumb), TSP system(30-120mesh rubber powder)
Our experienced after-sales service team can ensure the most timely installation, testing and training in the customer's workshop. Our mission is to provide our customers the best recycling solutions with high quality service and technology.
Professinal used tyre rasper supplier: Shredwell recycling
