Potato Starch Making Machine Cutting Machine Rasper

Potato Starch Making Machine Cutting Machine Rasper Key Technology & Innovation Potions1. All parts in contact with raw material are made of food-grade stainless steel, which protects materials from outer pollution.2. High rotating speed, hig

Technical Feature

Shanghai, China

100pieces/Year

L/C, T/T

Potato

Vegetable

Customized

Send Standard Inquiry

Add Inquiry List

$0~5

PRIMARY PARAMETERS

Rasper

Cutting Machine

Material

Potato

Capacity

10-30t/

Trademark

Jinghua

Transport Package

Wooden Case Packing

Specification

7050*1200*2000

Origin

Zhengzhou City

DETAIL DESCRIPTION

Potato Starch Making Machine Cutting Machine Rasper

Key Technology & Innovation Potions

1. All parts in contact with raw material are made of food-grade stainless steel, which protects materials from outer pollution.

2. High rotating speed, high line speed, excellent rasping performance, uniform particle, and high starch ionization rate.

3. Rotor is calibrated with international advanced dynamic-balance instrument, meeting G1 standard.

4. Components(bearings for example) are imported from Europe with longer service life

5. Unique sieve-tension gear makes disassembly easy.

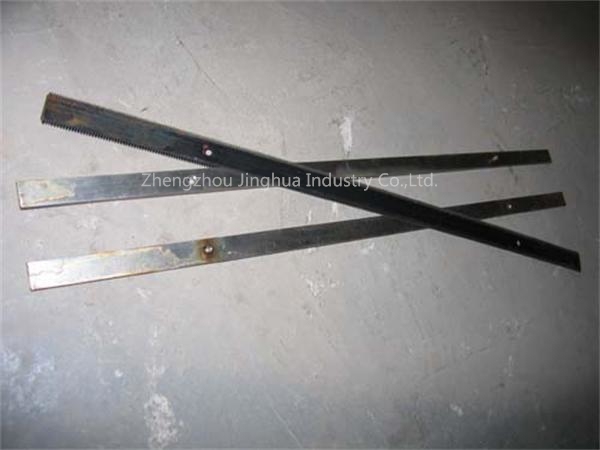

6. Saw Blade is manufactured with special steel by special process, with higher hardness and wear resistance.

7. Rasping bulk is cast of high-chromium iron, hardness reaching HRC60, having excellent wear resistance.
8. Unique drum groove and layering instrument design benefits saw blade changing.

Structure introduction

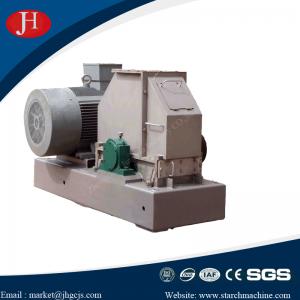

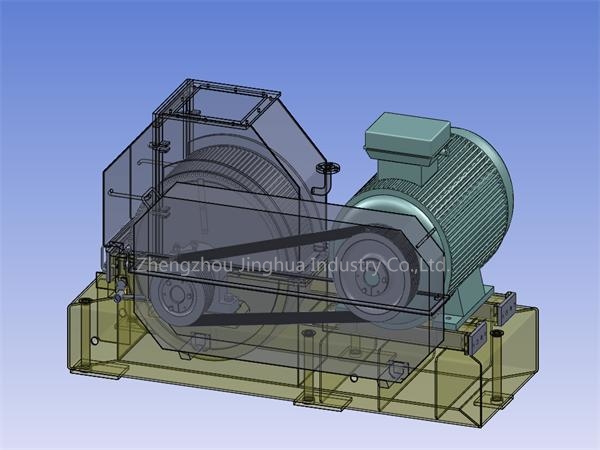

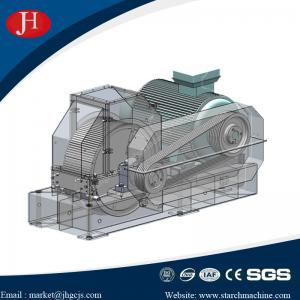

Complete machine consists of rotor, rasping blade, engine base, upper cover, side cover, bearing base, gearing, motor, etc.

1. Engine base props up all components, which rotor and bearings are all fixed on.

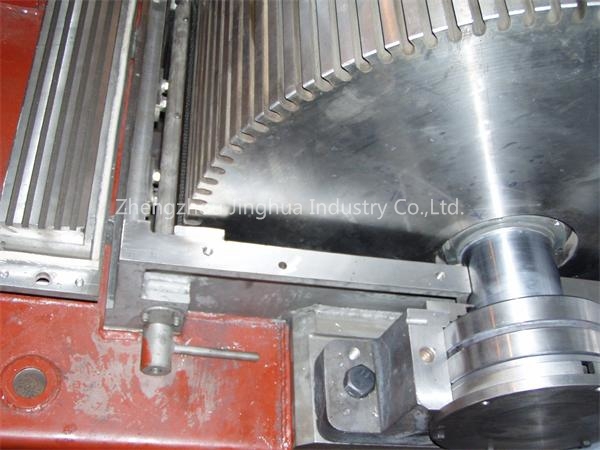

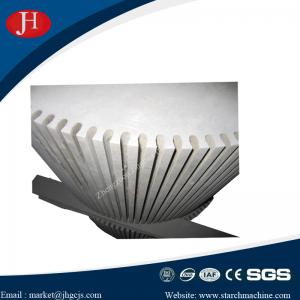

2. Rotor is made of special stainless steel, uniform grooves on the surface to install saw blade.

3. Saw blade is comprised of 2 stainless-steel layer with locating pin and a saw blade.

4. 2 combined rasping blade are equipped on both side of rotor, which could achieve rotor two-way rotating and crests higher crushing rate.

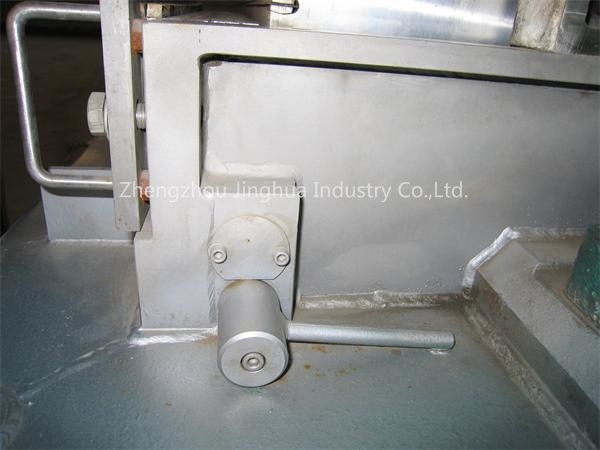

5. A sieve is equipped between rasping blades, which is tensioned by two sets tensioning instruments.

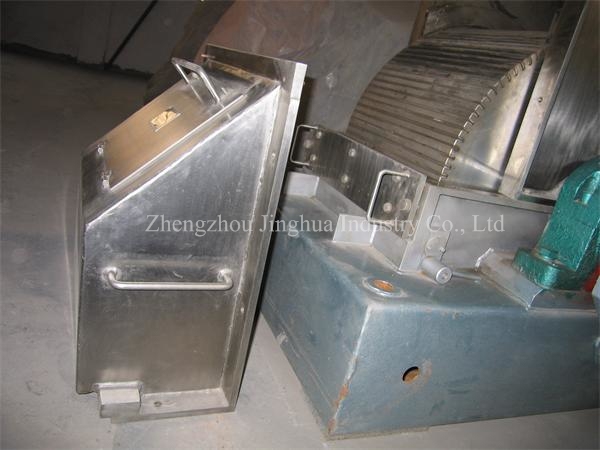

6. For easy operation, upper shell divides into two parts, upper cover and side cover.
7. Use Sweden SKF Bearings and German opittle belt.

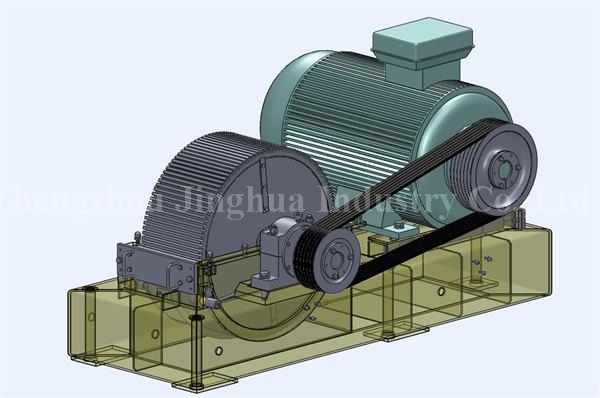

8. Motor drives rotor by belt, which is protected by sealed protective cover.

Specification

Model	CM6550	CM8435	CM8450	CM11070
Power(kW)	55,75	90,110	160,200	250/310
Rotor Diameter(mm)	650	800	850	1000
Rotor Width(mm)	500	350	500	700
Rotating Speed(r/min)	1450	2100	2100	1470
Groove quantity	94	120	120	204
Capacity(m3/h)	≤15	≤20	≤30	≤45

Potato Starch Making Machine Cutting Machine Rasper
