Irrigation Hydro Cyclone Desander for Ground Water
Hydro cyclone desander Working principle
Cyclone sand filter is designed and manufactured on the screening principle that solid particles in the fluid swirling and flowing in the sand filter. It is a new separation device which combines filtering device, when the water flow is under certain pressure, it flows from the inlet tangentially enters the sand filter, and generates violent whirlpool, since the sand and water is different in density, under the comprehensive action of centrifugal force, centripetal force and fluid drag force, the low density water rises and discharged from the water outlet, high density sand discharges from the sewage outlet at bottom of the device. Individual particles joint floating along the water flow will be filtrated by the second stage filtering device, so as to realize the purpose of sand removal.
Cyclone sand filter is designed and manufactured on the screening principle that solid particles in the fluid swirling and flowing in the sand filter. It is a new separation device which combines filtering device, when the water flow is under certain pressure, it flows from the inlet tangentially enters the sand filter, and generates violent whirlpool, since the sand and water is different in density, under the comprehensive action of centrifugal force, centripetal force and fluid drag force, the low density water rises and discharged from the water outlet, high density sand discharges from the sewage outlet at bottom of the device. Individual particles joint floating along the water flow will be filtrated by the second stage filtering device, so as to realize the purpose of sand removal.
Hydro cyclone desander Scope of application
1. Mainly applied to water quality treatment and control for the raw water and water supplying, such as: River water, well water desanding, coal washing water, mineral separation, solid-liquid separation, gas and liquid immiscible liquid separation.
2. It can be widely applied to the water source heating pump system, a heating water, central air conditioning cooling water, chilled water, steel, power, chemical and other industrial and mining enterprises, tap water, sea water, surface water, ground water.
Hydro cyclone desander Product characteristics:
1. No energy consumption, good sand removing effect, especially suitable for sand content higher system using.
2. Low cost, convenient installation and operation, safe and reliable operation, small size, processing a large quantity of water, small occupied area.
3. Desanding diameter: >0.1mm
4. Turbidity of raw water: ≥ 300 degree
5. Output water turbidity: ≤ 10 degree
1. Mainly applied to water quality treatment and control for the raw water and water supplying, such as: River water, well water desanding, coal washing water, mineral separation, solid-liquid separation, gas and liquid immiscible liquid separation.
2. It can be widely applied to the water source heating pump system, a heating water, central air conditioning cooling water, chilled water, steel, power, chemical and other industrial and mining enterprises, tap water, sea water, surface water, ground water.
Hydro cyclone desander Product characteristics:
1. No energy consumption, good sand removing effect, especially suitable for sand content higher system using.
2. Low cost, convenient installation and operation, safe and reliable operation, small size, processing a large quantity of water, small occupied area.
3. Desanding diameter: >0.1mm
4. Turbidity of raw water: ≥ 300 degree
5. Output water turbidity: ≤ 10 degree
6. Input water pressure: ≥ 0.2-0.25Mpa
7. Water head loss: <0.02Mpa
8. Working temperature: Normal
To customers details:
1. What is the capacity(gpm or m3/h)?
2. What is the working pressure?
3. How big is the particle?

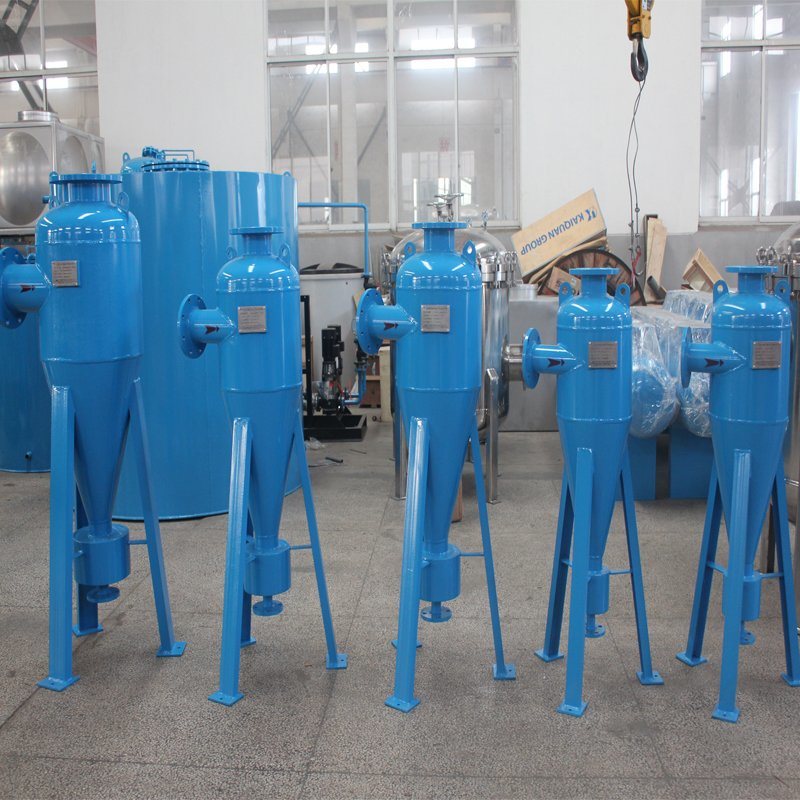

Hydro cyclone desander Product show:
7. Water head loss: <0.02Mpa
8. Working temperature: Normal
To customers details:
1. What is the capacity(gpm or m3/h)?
2. What is the working pressure?
3. How big is the particle?
Hydro cyclone desander Product show:
Packing show:
Certificate:
| Model of sand filter | Flow rate (T/h) | Water inlet (mm) | Water outlet (mm) | Ø diameter of cylinder (mm) | A1 (mm) | B1 (mm) | B2 (mm) | H1 (mm) | H2 (mm) | H3 (mm) |
| YLXC-40I | 25 | 40 | 25 | 273 | 220 | 113 | 220 | 640 | 140 | 860 |
| YLXC-50I | 40 | 50 | 25 | 273 | 220 | 108 | 230 | 680 | 140 | 910 |
| YLXC-65I | 50 | 65 | 25 | 325 | 220 | 124 | 240 | 780 | 140 | 1030 |
| YLXC-80I | 60 | 80 | 40 | 325 | 220 | 118 | 250 | 830 | 180 | 1095 |
| YLXC-100I | 100 | 100 | 40 | 377 | 220 | 134 | 260 | 920 | 200 | 1205 |
| YLXC-125I | 160 | 125 | 50 | 377 | 320 | 122 | 300 | 980 | 200 | 1310 |
| YLXC-150I | 200 | 150 | 50 | 478 | 380 | 150 | 360 | 1010 | 200 | 1410 |
| YLXC-200I | 250 | 200 | 50 | 620 | 440 | 200 | 430 | 1065 | 200 | 1550 |
| YLXC-250I | 300 | 250 | 65 | 720 | 500 | 225 | 520 | 1170 | 200 | 1750 |
| YLXC-300I | 500 | 300 | 65 | 820 | 580 | 274 | 590 | 1375 | 250 | 1990 |
