Wash Manganase, Iron Ore Machine Log Washer with Double Paddles

FeaturesLog Washers ideal for scrubbing difficult materials such as tough insoluble clays, conglomerates, soft stone and cemented aggregateHigh capacityReplaceable heavy duty conveying paddlesFabricated with heavy duty shaftsOversize bearings and gea

Technical Feature

  • Xiamen, China
  • 500PCS/Year
  • L/C, T/T
  • Spiral Sand Washer
  • 10-100t/H
  • 40-300t/h
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$15~30

PRIMARY PARAMETERS

Model NO.
2RXL320/400/540/750/800/914
Certification
ISO
Rotation Speed
1-2 r/min
Wheel Bucket Diameter
2200mm
Screw Diameter
320/400/540/750/800/914mm
Sample Testing
Supply
Ore Analyse
Supply
Design Flowchart
Professional Engineer Service for You
Feeding Size
Min
Installation
Supply
Spare Parts
Supply
Delivery Time
30 Days After The Down Payment
Trademark
Gandong
Transport Package
Standard Export Packing
Specification
depent on model
Origin
Shicheng County, Jiangxi Province, China
HS Code
84741000

DETAIL DESCRIPTION

Features
Log Washers ideal for scrubbing difficult materials such as tough insoluble clays, conglomerates, soft stone and cemented aggregate
High capacity
Replaceable heavy duty conveying paddles
Fabricated with heavy duty shafts
Oversize bearings and gears
Thick-walled shafts
Lower end bolted to fully machined stub shaft. Upper end mounted through flexible coupling to output shaft of gearbox
The compound drive divides the operating load over an optimal combination of oversized helical and spur gears

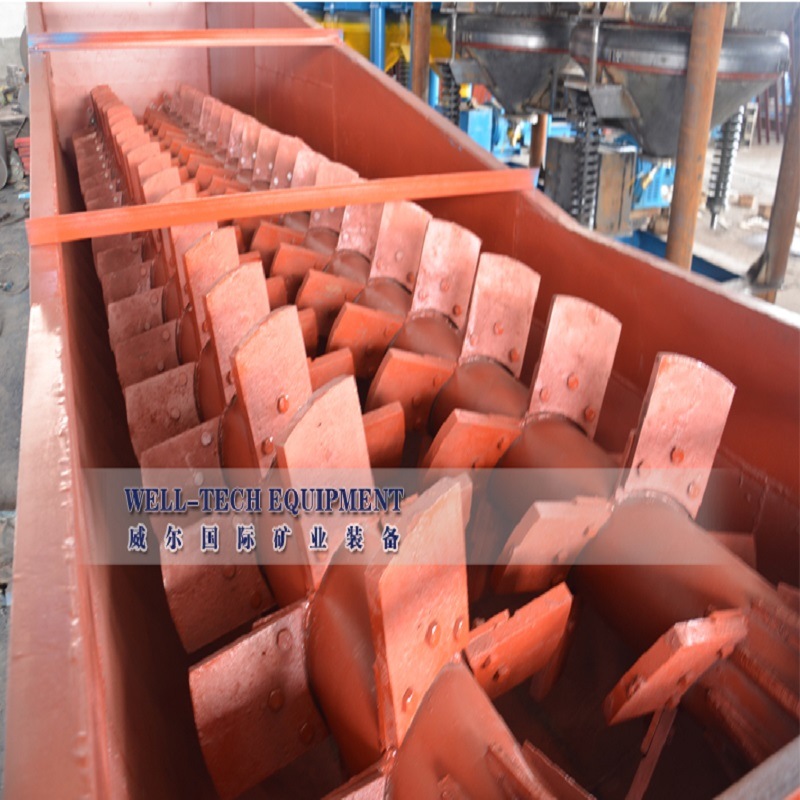

Continuous grinding and abrading log washer paddles
Adjustable water discharge gates on both sides of lower end of the tub

Description
This machine is mainly used to wash the manganese ore, iron ore, phosphate and other minerals, it is usually used to clean and separate the silt and stains from manganese ore, iron ore and other low-grade mineral. Features: Large capacity, convenient installation, simple operation, low cost, high efficiency.

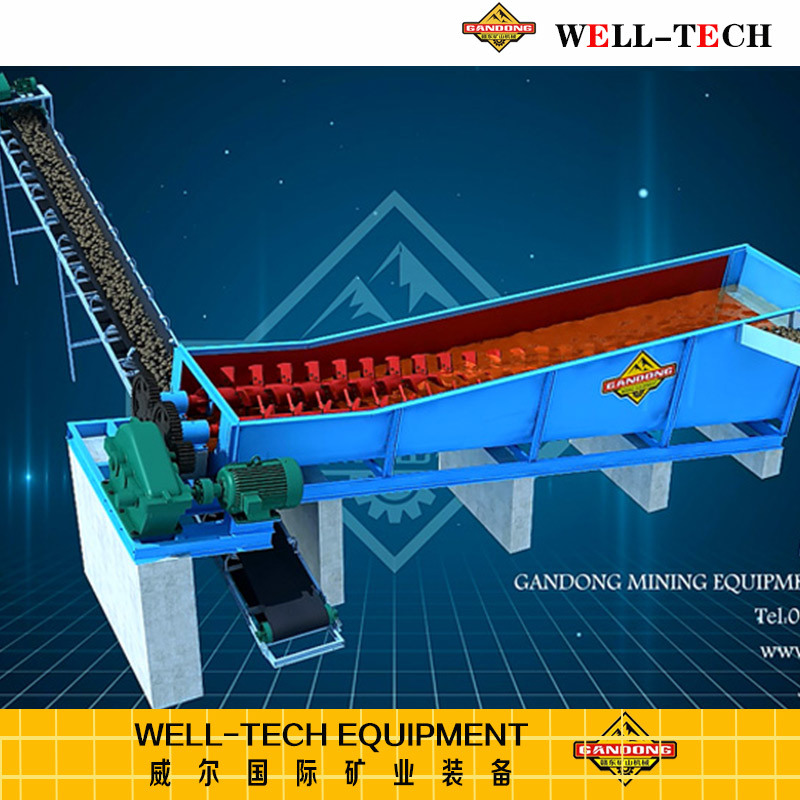

This machine drive the spiral stirring shaft depends on speed reducer and rotate in different directions, and the minerals which enter the tank were washed by water and stir strongly by blade. The sewage was overflowed at the end of tank, the cleaned minerals were lifted up along the blade and discharged at the beginning of tank .


Technical Specifications

ModelSpiral Dia.
(mm)
Rotating Speed
(r/min)
Feeding size
(mm)
Tank slope
(o)
Output
(t/h)
Power
(kw)
Weight
(t)
2RXL320Φ320×320028≤30≤121040.9
2RXL400Φ400×460023≤30≤12205.51.9
2RXL540Φ540×460023≤30≤12257.53.9
2RXL750Φ750×760022.7≤70≤1250117.5
2RXL800Φ800×760022≤70≤1270159.5
2RXL914Φ914×760021≤70≤121002212.9

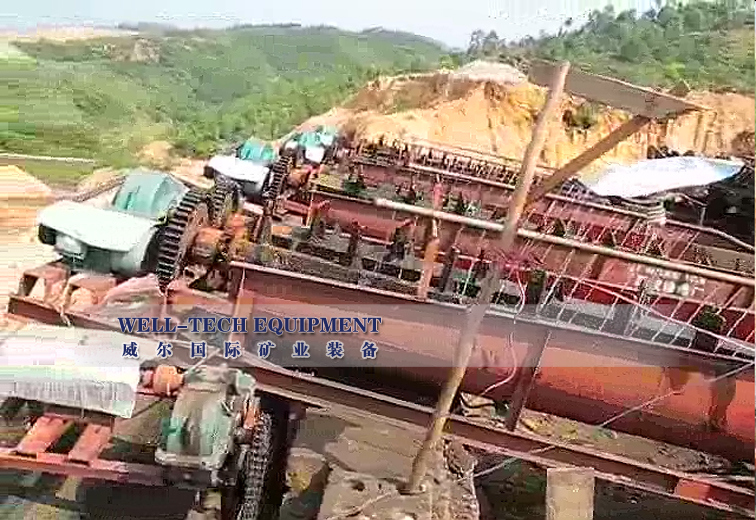

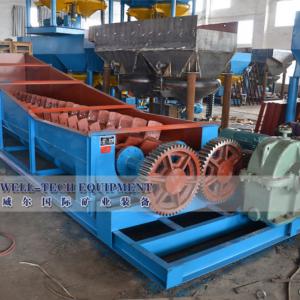

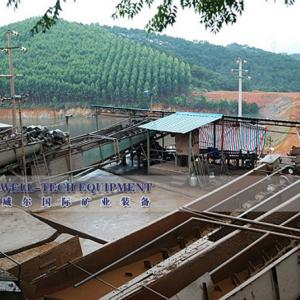

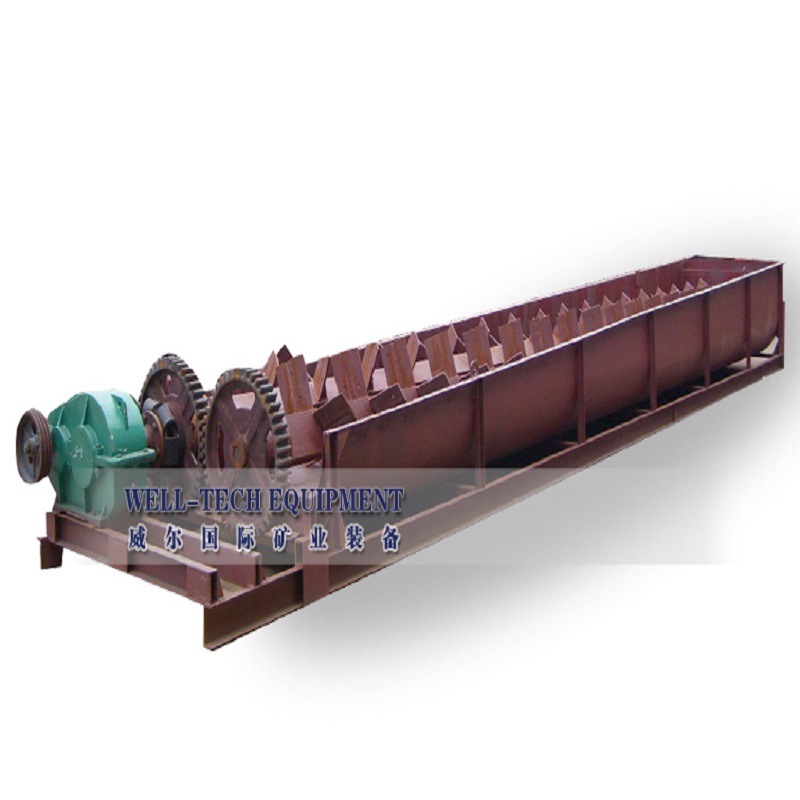

Wash Manganase, Iron Ore Machine Log Washer with Double Paddles
Wash Manganase, Iron Ore Machine Log Washer with Double Paddles
Wash Manganase, Iron Ore Machine Log Washer with Double Paddles
Wash Manganase, Iron Ore Machine Log Washer with Double Paddles
Wash Manganase, Iron Ore Machine Log Washer with Double Paddles
Wash Manganase, Iron Ore Machine Log Washer with Double Paddles

FAQ
Weclome to visiting our factory to check the machines or send to my email as follow information.
1.Capacity of project?
2.Particle size of original ore?
3.What kind of mineral ores ?
4.Kindly let me know the electric power of your country , here we are 380V 50HZ 3PHASE
We will suggest you the best type and good machines for respect customers.
Why choose our company machine?

1. We are factory (NOT Dealer)

All machinery from Well-tech international equipment Mining Machinery Manufactory are made by ourselves, No trade company make

Commission(many trade companies do not produce the machinery),the lower price with the same goods, good quality, after service can be assured (after service of trade companies will get help from factory).
So please buy from factory
2. We will do our best to satisfy every customer's needs

Producing high-quality and reliable machines is our first priority, because we know that our success depends entirely on the satisfaction of our customers. We never give-up quality to save cost.


3. Training & service
Training is FREE to every customer. Whenever you need us, for installation, maintenance, or proper use of our company machines, we will be right there for you. In addition, we provide one-year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.

4. If you are new for this business, I will help you

Many thanks for your trust; we can provide you with the pre-services of design scheme for complete production lines, spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipments, drilling rig, Loader, trucks, excavators and so on


5. We will recommend a suitable type for you and send you a best quotation


Our Services

1) Pre-sale service: Freely provide project designing, process designing, choosing suitable equipment for you.
2) Medium-sales service: Accompany you to complete the acceptance of the equipment, draft the construction scheme and detailed process, and complete process of export
3) After-sales service: We sent engineer to the scene to guide installation, debugging and training operators.

if you are interested in our products, please send me message in below blank, then click"send", we will reply within 24hours,or call us. thanks your time.
