The packing system will include the below machines: :
1. Z conveyor and its feeder:
The conveyer is applicable for vertical lifting of grain material in departments such as corn, food, fodder and chemical industry, etc.
For the lifting machine, the hopper is driven by the chains to lift. It's used for vertical feeding of grain or small block material. It has advantages of large lifting quantity and highness.
The height of lifting: 360cm (discharging height 310cm)or others can be made according to customer's need.
Conveyor speed controlled by inverter. Bucket movement controlled by level sensor.
Max 90buckets/min
Power: 550W Voltage: 220V
Size: 3200X435X3650mm
Packing size: 1) main body: 200X120X110cm=2.64CBM, about 300kg gross weight
2) vibration feeder: About 0.7CBM, about 100kg gross weight
This elevator is for one weigher or one packing machine only, we can also make the elevator suit for several multihead weighers and several packing machines use at the same time. So that highly save your money.

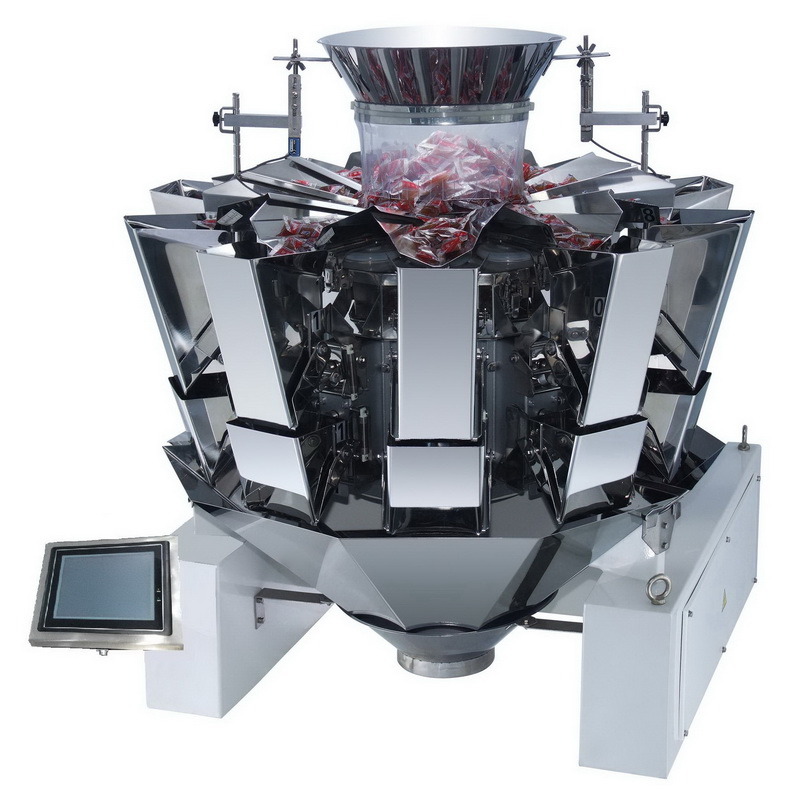

2. JY-10HST multihead weigher: (painted steel main frame)
Application scale:
Potato slice and chip, salads, raisin, oatmeal, candy, peanut, walnut kernel, apricot kernel, popped food, sugar, jelly, frozen dumpling, meatball, crude drugs, gourmet powder, salt, solid beverage etc.
Non food: Screws, nuts, toys.
Technical:
Each dump weighing range10-1000g
Combination capacityMax 3000ml
Max speed60 bags/min
Length of materialMax 80mm
Each bag error0.2-0.5g
Weighing accuracy 0.1-1g
Mode of drivingStep motor
Form of dipperDouble-row non-memory dippers
Preset functionMax 50 choices
MaterialThe part contacting materials is made of stainless steel
Level controlPhoto-electricity (passtype)
Power sourceAc200/220V± 10% 1.5kVA
Dimension950(L) * 950(W) *1000(H)mm
3. Platform: 170X195X170CM
4. JY-420 vertical packing machine:
Features:
Suit for: OPP/CPP, CPP/PE, MST/PE and other types of heat sealing film
The touch-sensitive screen can display the state of machine, operation in struction and the state of breakdown in either Chinese and English, easy operation
It has a compact structure and every component has been made carefully, and the touching part of material are made by stainless steel
For guaranteeing stable ling-term operation of the machine, electrical equipments and pneumatic equipments are all made by famous manufacturers of the world
The date printer has an alarming equipment of no ink belt, without escaping printing.
Specification:
Packaging speed: 5-60bag/min
Bag making size: (L)50-300mm (W)60-200mm
Bag making type: Pillow bag, vertical bag and make hole equipment (need to add extra money)
Filling range: 150-1300ml
Max packaging film width: 440mm
Film thickness: 0.04-0.08mm
Air consumption: 200L/min
Total power/ voltage: 2.2KW/220V, 50-60Hz
Outside size: 1400X970X1600mm
Gross weight: 400kg
Application:
Grain, strip and slice materials such as expanded food, shrimp cracker, candies, peanuts and popcorns.
Package for grain materials such as rice, salt, jelly, mung bean oatmeal and laundry powder.
Function:
The design of this machine is reasonable and elaborate. Its performance is stable and it is easy to handle. It can cut the edge of every single bag or every several joint bags according to specific requirement. All proceedings of feeding, measure, bag-making, date printing, filling, puffing, sealing, cutting and outputting finished products are finished automatically.
5. Discharge conveyor:
(stainless steel main frame and food class belt)
Feeding speed30m/minute
Dimension2110× 340× 500mm
Voltage220V/45W
Packing size179X48X53cm
Net weight60kg
Gross weight85Kg
6. Rotary packing table:
1. Z conveyor and its feeder:
The conveyer is applicable for vertical lifting of grain material in departments such as corn, food, fodder and chemical industry, etc.
For the lifting machine, the hopper is driven by the chains to lift. It's used for vertical feeding of grain or small block material. It has advantages of large lifting quantity and highness.
The height of lifting: 360cm (discharging height 310cm)or others can be made according to customer's need.
Conveyor speed controlled by inverter. Bucket movement controlled by level sensor.
Max 90buckets/min
Power: 550W Voltage: 220V
Size: 3200X435X3650mm
Packing size: 1) main body: 200X120X110cm=2.64CBM, about 300kg gross weight
2) vibration feeder: About 0.7CBM, about 100kg gross weight
This elevator is for one weigher or one packing machine only, we can also make the elevator suit for several multihead weighers and several packing machines use at the same time. So that highly save your money.
2. JY-10HST multihead weigher: (painted steel main frame)
Application scale:
Potato slice and chip, salads, raisin, oatmeal, candy, peanut, walnut kernel, apricot kernel, popped food, sugar, jelly, frozen dumpling, meatball, crude drugs, gourmet powder, salt, solid beverage etc.
Non food: Screws, nuts, toys.
Technical:
Each dump weighing range10-1000g
Combination capacityMax 3000ml
Max speed60 bags/min
Length of materialMax 80mm
Each bag error0.2-0.5g
Weighing accuracy 0.1-1g
Mode of drivingStep motor
Form of dipperDouble-row non-memory dippers
Preset functionMax 50 choices
MaterialThe part contacting materials is made of stainless steel
Level controlPhoto-electricity (passtype)
Power sourceAc200/220V± 10% 1.5kVA
Dimension950(L) * 950(W) *1000(H)mm
3. Platform: 170X195X170CM
4. JY-420 vertical packing machine:
Features:
Suit for: OPP/CPP, CPP/PE, MST/PE and other types of heat sealing film
The touch-sensitive screen can display the state of machine, operation in struction and the state of breakdown in either Chinese and English, easy operation
It has a compact structure and every component has been made carefully, and the touching part of material are made by stainless steel
For guaranteeing stable ling-term operation of the machine, electrical equipments and pneumatic equipments are all made by famous manufacturers of the world
The date printer has an alarming equipment of no ink belt, without escaping printing.
Specification:
Packaging speed: 5-60bag/min
Bag making size: (L)50-300mm (W)60-200mm
Bag making type: Pillow bag, vertical bag and make hole equipment (need to add extra money)
Filling range: 150-1300ml
Max packaging film width: 440mm
Film thickness: 0.04-0.08mm
Air consumption: 200L/min
Total power/ voltage: 2.2KW/220V, 50-60Hz
Outside size: 1400X970X1600mm
Gross weight: 400kg
Application:
Grain, strip and slice materials such as expanded food, shrimp cracker, candies, peanuts and popcorns.
Package for grain materials such as rice, salt, jelly, mung bean oatmeal and laundry powder.
Function:
The design of this machine is reasonable and elaborate. Its performance is stable and it is easy to handle. It can cut the edge of every single bag or every several joint bags according to specific requirement. All proceedings of feeding, measure, bag-making, date printing, filling, puffing, sealing, cutting and outputting finished products are finished automatically.

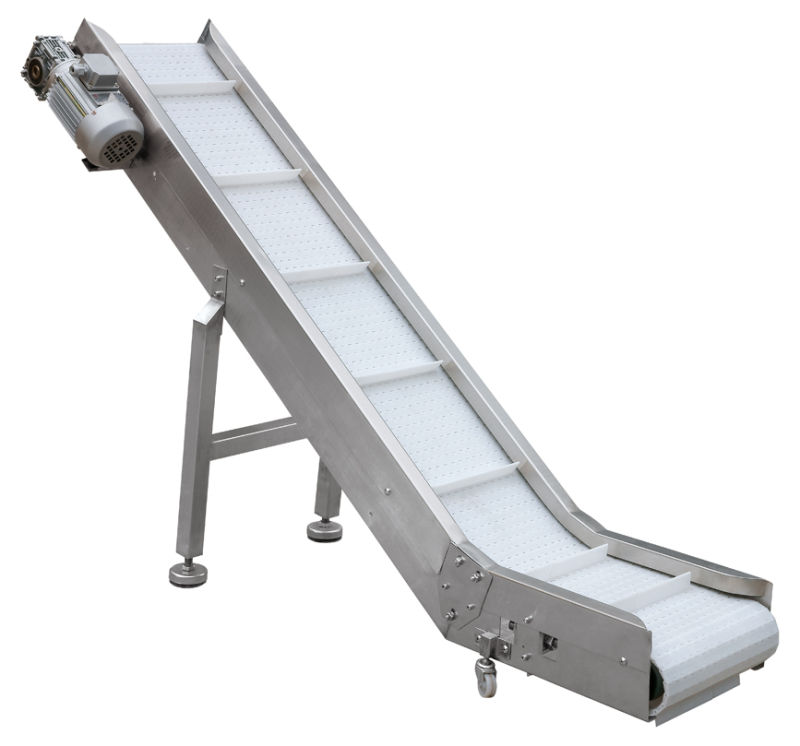

5. Discharge conveyor:
(stainless steel main frame and food class belt)
Feeding speed30m/minute
Dimension2110× 340× 500mm
Voltage220V/45W
Packing size179X48X53cm
Net weight60kg
Gross weight85Kg

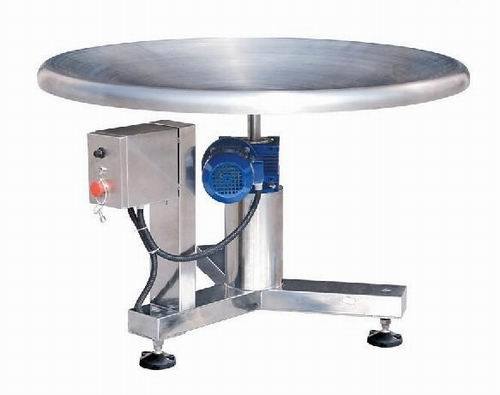

6. Rotary packing table:
Our Rotary Turntables are fabricated in s/s making it suitable for the food, beverage, chemical clean rooms and pharmaceutical industry.
Made by 304 stainless steel
Diameter:1000-1200mm
Height: 70-80cm (with the leg, so can adjust the height)
Speed: adjustable, controlled by governer
Power:220V. 50hz or 110V 60HZ, 60W
Max speed: 14-25turns/min
