Heat Sealed Triangle Shape Granule Packing Machine KH-320:
1.ND-KH320 is a Full Automatic Roasted Peanuts Packing Machine.
2.The machine automiticlly finish bag making,measuring,filling,sealing,code printing,counting,and other production process;
3.The fiting packing material are heat-sealed composite membrane coils,lower cost than other materials.
4.Suit for packing granule products that volume around 5-100ml.

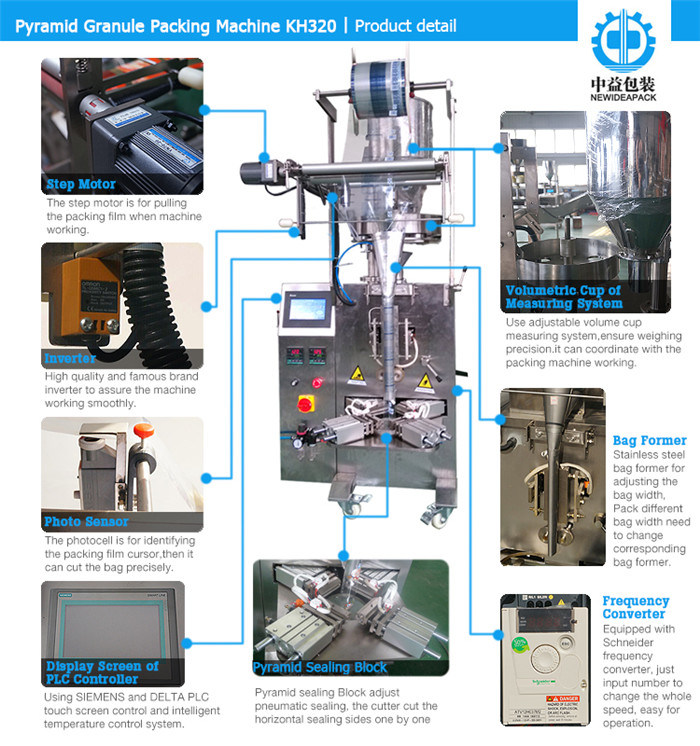

Heat Sealed Triangle Shape Granule Packing Machine KH-320 / Features:
1.Using SIEMENS Or DELTA PLC touch screen control and intelligent temperature control system,and photoelectric tracker.
2.With reasonable mechanical structure,main engine speed is under control by turbine worm motor and frequency converter.Also in the back of machine,there is a button to speed adjustment more convient
3.Small noise,stable system and easy operation.
4.Double heating rod design, keep the temperature stable,and good shape of bags.
5.All the machine is using ss304 stainless steel,healthy,safty,and easily cleanable.
6.This machine is very easy for adjustment and maintenance,all the adjustment can be cone on color touch screen.If you didn't have experience for packing machines,you may choose this model.
7.Especially suitable for small packed snacks,peanuts,green beans and etc.
8.High output 4000-6000 bag/hour,good labor and power saver,the continuous running make it very high efficiency.
Heat Sealed Triangle Shape Granule Packing Machine KH-320:/ Material & Samples:
Heat Sealed Triangle Shape Granule Packing Machine KH-320 / technical parameters:
Heat Sealed Triangle Shape Granule Packing Machine KH-320 / why Choose us:
1.8 years manufacture experience,strong R&D department.
2.Exported to more than 1000 customers from more than 50 countries.
3.We promiss machine keep working over 10 years in good working condition.Fewer easy broken parts,easy to change.
4.Intelligent PLC control system,easy operate,more hommization.
5.One year guarantee time,lifelong free service,24 hours online service.
6.High output 3000-5000 bags/hour,save energy & labor.
7.OEM,ODM and customized service.
8.CE ISO BV GMP certificates.
Heat Sealed Triangle Shape Granule Packing Machine KH-320 / Packaged Goods:
Machine packing inside is plastic films and outside is fumigation wooden case.
Long time cooperation is needed:
Newidea is still developing,and the products are also being innovated.Welcome our old and new customers to visit our factory and make the consultation.We will provide professional packaging solutions for you.
1.ND-KH320 is a Full Automatic Roasted Peanuts Packing Machine.
2.The machine automiticlly finish bag making,measuring,filling,sealing,code printing,counting,and other production process;
3.The fiting packing material are heat-sealed composite membrane coils,lower cost than other materials.
4.Suit for packing granule products that volume around 5-100ml.
Heat Sealed Triangle Shape Granule Packing Machine KH-320 / Features:
1.Using SIEMENS Or DELTA PLC touch screen control and intelligent temperature control system,and photoelectric tracker.
2.With reasonable mechanical structure,main engine speed is under control by turbine worm motor and frequency converter.Also in the back of machine,there is a button to speed adjustment more convient
3.Small noise,stable system and easy operation.
4.Double heating rod design, keep the temperature stable,and good shape of bags.
5.All the machine is using ss304 stainless steel,healthy,safty,and easily cleanable.
6.This machine is very easy for adjustment and maintenance,all the adjustment can be cone on color touch screen.If you didn't have experience for packing machines,you may choose this model.
7.Especially suitable for small packed snacks,peanuts,green beans and etc.
8.High output 4000-6000 bag/hour,good labor and power saver,the continuous running make it very high efficiency.
Heat Sealed Triangle Shape Granule Packing Machine KH-320:/ Material & Samples:
Heat Sealed Triangle Shape Granule Packing Machine KH-320 / technical parameters:
| Type | Bag Length (mm) | Bag Width (mm) | Packing Speed (Bag/hour) | Measuring Range (ml) | Voltage Power | Weight (kg) | Size (mm) | Sealing Methods |
| ND -K40 | 55-110 | 30-80 | 2100-4800 | 5-40 | 220V/50/60Hz/1.8Kw | 300 | 850 *700 *1550 | 3 /4 Sealing |
| ND -K150 | 80-150 | 30-80 | 2100-4200 | 30-150 | 220V/50/60Hz/1.5Kw | 300 | 850 *700 *1550 | 3/4 Sealing |
| ND- K320I | 40-160 | 15-150 | 3000-5400 | 5-300 | 220V/50/60Hz/2.0Kw | 300 | 950 *700 *1800 | Pillow sealing |
| ND- K320II | 40-160 | 15-150 | 3000-5400 | 5-300 | 220V/50/60Hz/2.0Kw | 320 | 950 *850 *1900 | 3 Sides sealing |
| ND-K320III | 40-160 | 15-150 | 3000-5400 | 5-300 | 220V/50/60Hz/2.0Kw | 350 | 950 *850 *1900 | 4 Sides sealing |
| ND-KH320 | 40-100 | 40-100 | 3000-5400 | 50-200 | 220V/50/60Hz/2.0Kw | 350 | 950 *850 *1900 | triangle shape |
| ND-K398 | 30-320 | 70-210 | 1800-3600 | 100-1200 | 220V/50/60Hz/1.8Kw | 350 | 1200 *900 *2000 | Standard pillow bag |
| ND-K398VL | 30-320 | 70-210 | 1800-3600 | 100-1200 | 220V/50/60Hz/1.8Kw | 350 | 1200 *900 *2000 | Standard pillow bag |
| ND-K398EL | 30-320 | 70-210 | 1800-3600 | 100-1200 | 220V/50/60Hz/1.8Kw | 350 | 1200 *900 *2000 | Standard pillow bag |
| ND-K420 | 80-300 | 50-200 | 300-3000 | Max 1200 | 220V/50/60Hz/2.2Kw | 540 | 1320 *950 *1360 | Pillow bag /Gusset bag /Box bag Pillow bag with punch hole Gusset bag with punch hole |
| ND-K520 | 100-400 | 80-250 | 300-3000 | Max 3000 | 220V/50/60Hz/4.0Kw | 600 | 1150 *1795 *1650 | |
| ND-K720 | 100-480 | 180-320 | 300-3000 | Max 6000 | 220V/50/60Hz/5.0Kw | 900 | 1320 *950 *1360 |
Heat Sealed Triangle Shape Granule Packing Machine KH-320 / why Choose us:
1.8 years manufacture experience,strong R&D department.
2.Exported to more than 1000 customers from more than 50 countries.
3.We promiss machine keep working over 10 years in good working condition.Fewer easy broken parts,easy to change.
4.Intelligent PLC control system,easy operate,more hommization.
5.One year guarantee time,lifelong free service,24 hours online service.
6.High output 3000-5000 bags/hour,save energy & labor.
7.OEM,ODM and customized service.
8.CE ISO BV GMP certificates.
Heat Sealed Triangle Shape Granule Packing Machine KH-320 / Packaged Goods:
Machine packing inside is plastic films and outside is fumigation wooden case.
Long time cooperation is needed:
Newidea is still developing,and the products are also being innovated.Welcome our old and new customers to visit our factory and make the consultation.We will provide professional packaging solutions for you.
