Description:
1.The pre made bag packing machine is fully automated operation, it can achieve product packing assembly line work,and improving production efficiency and significantly reduce product cost.
2.The automatic packaging machine conforms to the food processing machinery's sanitation standard. On the machine, the spare part which contacts with the material and pouch conforms to the standard of food sanitation request on material processing, food health and security guarantee.
Application:
Rotary packing machine is developed for premade pouch, stand-up pouch with or without zipper.
Powder: gourmet powder,milk powder,coffee powder,wash powder chicken powder, seasoning powder.
Liquid and Paste: hand sanitizer, shampoo, lotion, cream.cosmetic Fruit juice, tomato paste, sauce, chili sauce, edible oil and so on.
Granule:candy, fruits, nut, pet food, roasted seeds, puffed food, frozen food, small hardware. Seeds(Pulses),Coffee(granules/beans), Tea, Sugar,
Grated Cheese, Bakery Products, Candies & Confectionery, Rice, Nuts & Dried Fruits, Spices, small Pasta pieces, Pet Food(pellets) etc.
Feature:
1.Easy to operate. The machine with Japan Mitsubishi PLC control, man-machine interface with touch screen control system, it can be operate easily.
2.Frequency control. The machine with frequency control, the required speed can be adjustable within the range according to any needs of reality in production.
3.Automatic detection. No pouch or pouch is not opened completely, no feeding, no sealing,pouch can be reused, avoid wasting materials, it can reduce production costs for user.
4.Safety devices, when the abnormal pressure of work or failure of heating pipe, it will alarm.
5.The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clips, easily operate, and save time.
6.Part of plastic bearings are imported, no oil, reduce polluion materials.
7.Use no oil vacuum pump, avoid polluting the environment in the production.
8.The packing materials loss low, what this machine is used the preformed bag, the bag pattern is perfect and has high quality of the sealing part, this improved the product specification.
Option Part of Weighing&Packing System
1 Z Type Bucket Elevator--- ---for conveying material( Not for Powder)
2Multihead Weigher( 10head, 14head, 20head...) --------for weighing(not powder)
3 Screw Conveor & Auger Filler-------------This is for Powder material Conveying
4 Working Platform 304 stainless steel---------for supporting equipment
5 Finished Product Conveyor-------for conveying and collecting of finished product.
Model of Liquid & Paste Filler(Servo-motor drive)
1-It can apply in: measure liquid and ketchup like syrup, red eye,peanut butter,scour and so on.
2-this machine is semiautomatic piston style liquid canning machine.
3-The design of the machine is in reason with artful model , and it is
convenient to handle.
4-The part where touch to the material is made of stainless steel is accord with the request of GMP.
5-The canning mete and career can be adjusted, it is accurate.
6-The canning cobbra of the machine use the setting of defending leak
and draw bench.
7-Double hopper,thermal insulation, With fluid control devices

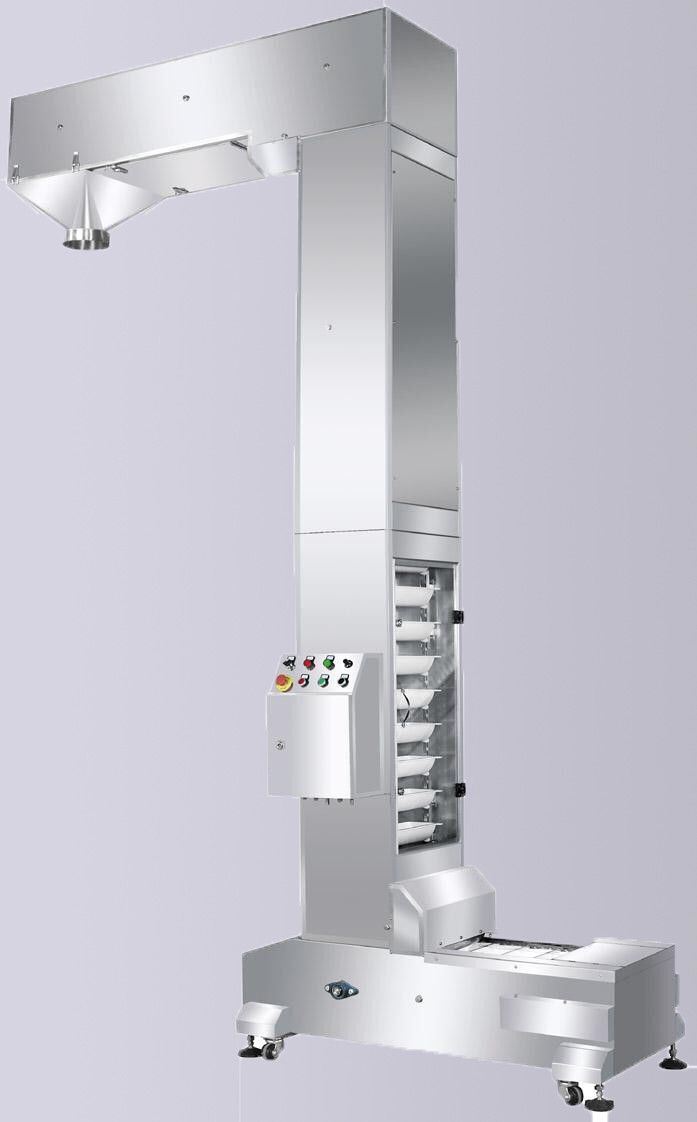

Model of Bucket elevator(Include Feeder)
This kind of elevator is used mainly to convey the solid food ,such as rice, chip potato ,candy ,etc.it composes the automatic quantitative packing system combined with the weigher and packing machine, which is applying widely. Be made of 304 stainless steel and plastic (PP) which is hygienic and healthy .the elevator is
controlled automatically.

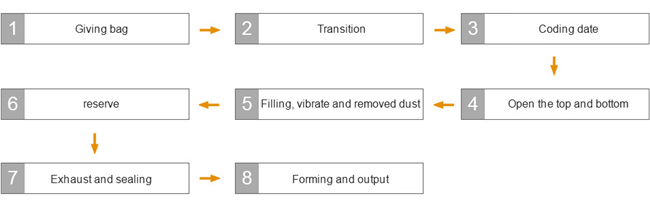

Process:
Main technical parameters
| Model | MR-200-6 | MR-300-6 | MR-200-8 | MR-300-8 | |
| Packing Speed(Bags/Min) | 20-55 | 20-40 | 20-55 | 15-35 | |
| Bag Size(mm) | W:100-210 L:150-300 | W:150-300 L:150-400 | W:100-210 L:150-300 | W:150-300 L:150-400 | |
| Bag Types | All kinds of compound bags, such as flat bag, 3-side sealing bag, 4-side sealing bag, zipper bag, standup bag etc | ||||
| Filling Range | 5-1500g | ||||
| Total Power | 3.95KW | 4.75KW | 3.95KW | 4.75KW | |
| Overall Dimensions(mm) | 4200*2000*3700 | 4600*2200*3700 | 4350*2000*3700 | 4650*2350*3750 |

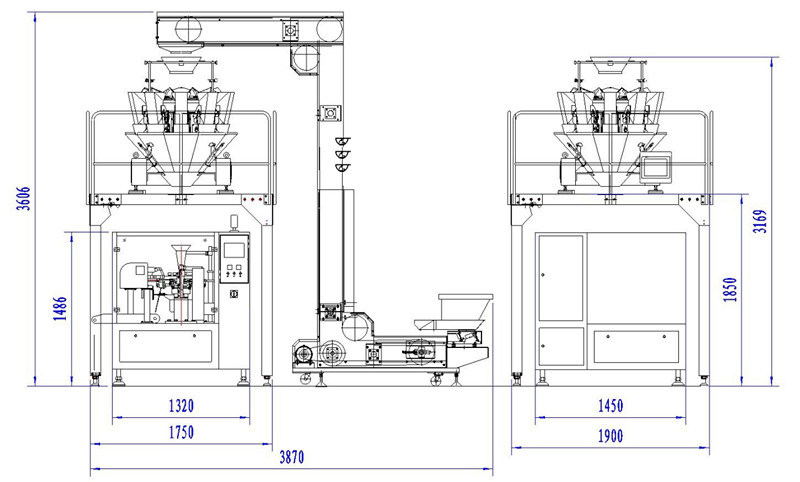

Dimension Drawing:
Features* Suitable range: dosing and weighing of grain, chip, bar or irregular shaped material such as candy, sunflower seed, potato chip, happy fruit, peanut, jelly, freezing rice dumpling, biscuit, chocolate, nut, pet food, puffed food, small metal parts and plastic parts, etc.
* Select the optimum combination immediately from plenty weighing combinations by powerful sofware.
* Adopt high precision digital weighing load cell and A/D module to get preciser weighing than before.
* LCD operating display with multiple languages such as English, Russian, German, Spanish,Italian, etc.
* IP65 whole waterproof and dustproof design. It's easy to clean and maintain.
* The powerful ability of Automatic Feeder Control to make the machine self-adjusting during running.
* Provided with strong operation menu to make you study and operate more easily. Powerful automatic data statistical function.
* Optional devices: triglyph balance ball, suction hopper, printing device, tolerance sorting device.
* Strong compatibility and more compact structure with it directly installed on the upper part of packing machine.
* Fast return for investment by largely saving large quantity of raw material and labour cost.
* Net weight: 300kg; Gross weight: 370kg
* Voltage: 220V; Power: 1500W; Frequency: 50/60HZ; Rated current: 9A.
* Out package dimension(mm):1400(L)×1130(W)×1120(H):
- Technical parameter
| Weighing range | 10-5000g |
| Maximum weighing quality | 5000g |
| Average tolerance for single bag | 0.2-0.5g |
| Range of weighing precision | 0.1-1.5g |
| Maximum weighing speed | 70 bags /minute |
| Hopper capacity | 1300ml |
| Hopper type | Bi-row hopper without memory |
| Driving | Step motor |
| Preset number for product | 99 kinds |
| Size of machine body(mm) | 1150(L)X950(W)X1129(H) |
Z type conveyor
- Features
- Specification
speed of lifting: 0-17m/minute; lifting quantity: 5.5cubic meter/hour
power : 750w
voltage : 380v
specification customized; material: carbon steel plastic-spray or stainless steel; the part contacting with food is food grade plastic.
Finished products conveyor
· Features
The machine can send the packed finished bag to after-package detecting device or packing platform.
- Specification
Lifting capacity: 1 cmb/hour
Feeding speed: 30mminute
Dimension: 2110×340×500mm
Voltage: 220V 40Watt
Sample:
Safety Device:
1.No puoch or open error,no filling .
2.No pouch or no filling ,no sealing .
3.The safety door open,alarm.
4.No coding ribbon,Emergency stop and alarm.
5.The air pressure not enough ,alarm.
6.The sealing temperature abnormal ,alarm.
Electrical Appliances we adopt :
Optional Accessories:
1. Auger filler
1). Auger conveyor
2). Vacuum conveyor
2. Metal detector
3. Check weigher
4. Output conveyor
5. Dust exhaust device
6. Open zipper device
7. Close zipper device
8. Exhaust Device
