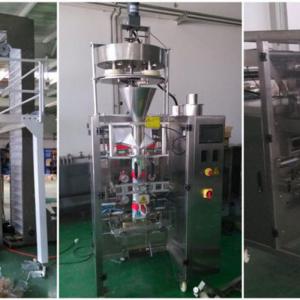

Large Vertical Granule Packing Filling Machine Line(ND-K420/520/720)
1.ND-K420/520/720 Snack Packing Machine is our company introduction of foreign
advanced technology,and is improved and the production of a kind of high quality,
high performance automatic packaging machine, complete automatic feeding,
measuring,bag-making,deviation,filling,sealing,date printing and finished product
output and a series of automatic functions.
2.The machine adopts high precision servo film transport system,PLC program control,
developed touchable human-machine interface of advanced automatic positioning,
photoelectric tracking,digital temperature control,etc.
3.Operation is more simple,perfect.It is the first choice of food packaging industry to
improve the production efficiency,reduce labor intensity, improve the grade of
packaging equipment.
4.Packaging material can be PE/polyethylene,PE/aluminum plating, pet/PE, pp,and
other heat-sealing packaging materials, etc.
Large Vertical Automatic Granule Packing Machine Line ND-K420/520/720/Features:
1. Chinese & English touch screen display, intuitive and simple operation.
2. PLC computer control system,the operation is more stable,no need stop and adjust
any parameters.
3. It can store 10 group parameters, the replacement of varieties more accurate.
4. Adopt double servo motor control system, the tension membrane more accurate,
faster,more accurate measurement.
5. Independent temperature control system, the precision can be up to + / - 1 degrees.
6.Transverse and longitudinal sealing temperature control independently,suitable for all
kinds of composite film, PE film packaging materials,etc.
7. Packaging style diversified,back sealing,Gusset Bag,continuous bags,punching,etc.
Production of bag making, sealing,packing,date printing one time.
8.Work environment quiet, low noise, saving energy.
9.Measuring system is Multihead combination weigher,higher precision,suitable for
Snacks,potato chips,cookies and also small granule,for example:sugar,rice,beans,
coffee beans,etc.
Large Vertical Automatic Granule Packing Machine Line ND-K420/520/720/Material & Samples:
Large Vertical Automatic Granule Packing Machine Line ND-K420/520/720/Technical Pharameters:
| Type | Bag Length (mm) | Bag Width (mm) | Packing Speed (Bag/hour) | Measuring Range (ml) | Voltage Power | Weight (kg) | Size (mm) | Sealing Methods |
| ND-K40 | 55-110 | 30-80 | 2100-4800 | 5-40 | 220V/50/60Hz/1.8Kw | 300 | 850*700*1550 | 3 /4 Sealing |
| ND-K150 | 80-150 | 30-80 | 2100-4200 | 30-150 | 220V/50/60Hz/1.5Kw | 300 | 850*700*1550 | 3/4 Sealing |
| ND-K320I | 80-160 | 60-150 | 3000-5400 | 5-300 | 220V/50/60Hz/2.0Kw | 300 | 950*700*1800 | Pillow sealing |
| ND-K320II | 80-160 | 60-150 | 3000-5400 | 5-300 | 220V/50/60Hz/2.0Kw | 320 | 950*850*1900 | 3 Sides sealing |
| ND-K320III | 80-160 | 60-150 | 3000-5400 | 5-300 | 220V/50/60Hz/2.0Kw | 350 | 950*850*1900 | 4 Sides sealing |
| ND-KH320 | 40-100 | 40-90 | 2100-3600 | 5-120 | 220V/50/60Hz/1.5Kw | 350 | 950*850*1900 | Triangle Bag |
| ND-K398 | 30-320 | 70-210 | 1800-3600 | 100-1200 | 220V/50/60Hz/1.8Kw | 350 | 1200*900*2000 | Standard pillow bag |
| ND-K398VL | 30-320 | 70-210 | 1800-3600 | 100-1200 | 220V/50/60Hz/1.8Kw | 350 | 1200*900*2000 | Standard pillow bag |
| ND-K398EL | 30-320 | 70-210 | 1800-3600 | 100-1200 | 220V/50/60Hz/1.8Kw | 350 | 1200*900*2000 | Standard pillow bag |
| ND-K420 | 80-300 | 50-200 | 300-3000 | Max 1200 | 220V/50/60Hz/2.2Kw | 540 | 1320*950*1360 | Pillow bag/Gusset bag/Box bag Pillow bag with punch hole Gusset bag with punch hole |
| ND-K520 | 100-400 | 80-250 | 300-3000 | Max 3000 | 220V/50/60Hz/4.0Kw | 600 | 1150*1795*1650 | |
| ND-K720 | 100-480 | 180-320 | 300-3000 | Max 6000 | 220V/50/60Hz/5.0Kw | 900 | 1320*950*1360 |

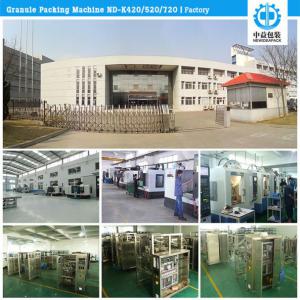

Large Vertical Automatic Granule Packing Machine Line ND-K420/520/720/Why choose us:
1.8 years manufacture experience,strong R&D department.
2.Exported to more than 1000 customers from more than 50 countries.
3.We promiss machine keep working over10 years in good working condition.Fewer
easy broken parts,easy to change.
4.Intelligent PLC control system,easy operate,more hommization.
5.One year guarantee time,lifelong free service,24 hours online service.
6.High output 3000-5000 bags/hour,save energy & labor.
7.OEM,ODM and customized service.

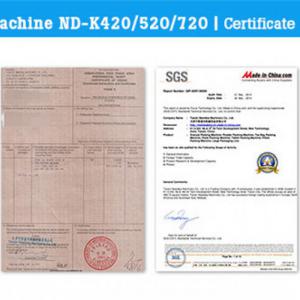

8.CE ISO BV GMP certificates.

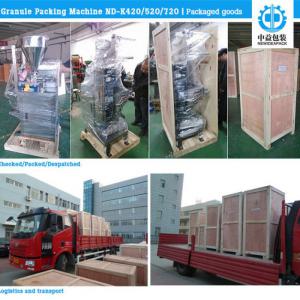

Large Vertical Automatic Granule Packing Machine Line ND-K420/520/720/Packaged Goods:
Machine packing inside is plastic films and outside is fumigation wooden case.
Long time cooperation is needed:
Newidea is still developing,and the products are also being innovated.Welcome our old and new customers to visit our factory and make the consultation.We will provide professional packaging solutions for you.
