Factory Directly Rotary Vacuum Drum Filter

Rotary vacuum drum filter (RVDF) is also called as drum filters used in the industrial liquid-solids separation is which are one of the oldest filters.It offers provides a flexible application of dewatering, washing and/or clarification and a wide ra

Technical Feature

  • Qingdao, China
  • 50
  • L/C, T/T, D/P, Western Union, Paypal, Money Gram
  • Conditioner
  • Chemical Industry
  • Electric power
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$2~20

PRIMARY PARAMETERS

Model NO.
GW
Application
Ore
Name
Disc Vacuum Filter
Installation
Engineer Guide
Certificate
ISO9001
Trademark
YanTai Fulin
Transport Package
Naked
Origin
China
HS Code
2616900001

DETAIL DESCRIPTION

Rotary vacuum drum filter (RVDF) is also called as drum filters used in the industrial liquid-solids separation is which are one of the oldest filters.

It offers provides a flexible application of dewatering, washing and/or clarification and a wide range of industrial processing flow sheets.

Products Show

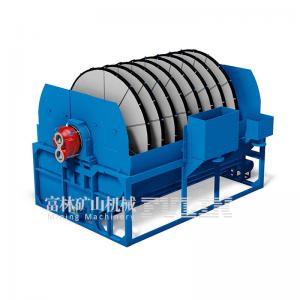

Factory Directly Rotary Vacuum Drum Filter

Features of GW Rotary Vacuum Drum Filter

The rotary vacuum drum filter is a continuous and automatic operation, so the operating cost is low.

It controls the cake thickness by showing the varitation in drum speed rotating.

The process can be easily modified (pre-coating filter process).

Can produce relatively clean product by adding a showering device.

Cake is removed simultaneously during operation. Therfore suitable for use with concentarted slurries.

The labour cost is very low on account of automatic and continuous operation of the rotary filter.

The filter has large surface area.

The speed of the rotation can be varied and the cake thickness can be controlled.


Application

As a basic separation operation, rotary vacuum drum filter is used in a wide range of applications:
dewatering slurries of food, pulp, pharmaceutical and chemical, applications of metallurgical and the treatment of waste water.

Structure of GW Rotary Vacuum Drum Filter

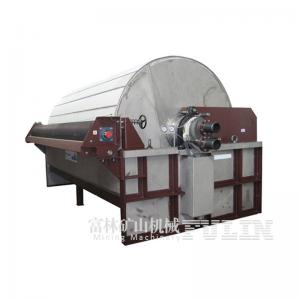

Factory Directly Rotary Vacuum Drum Filter

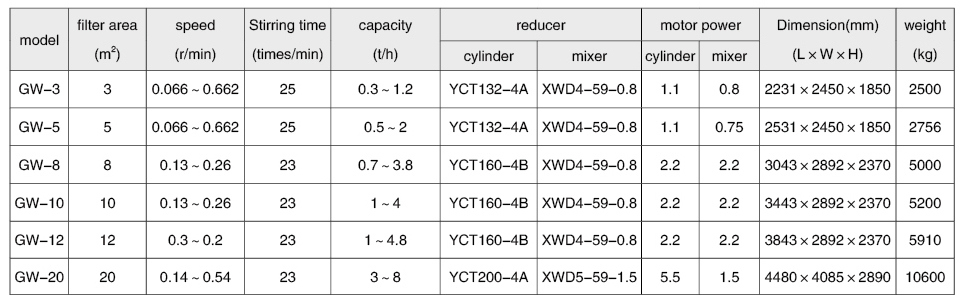

Technical parameter

Factory Directly Rotary Vacuum Drum Filter
