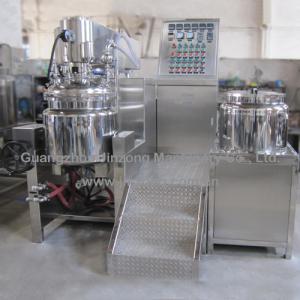

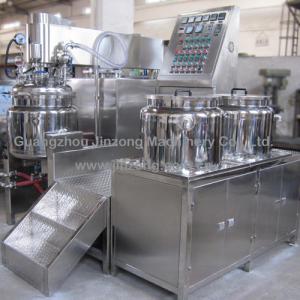

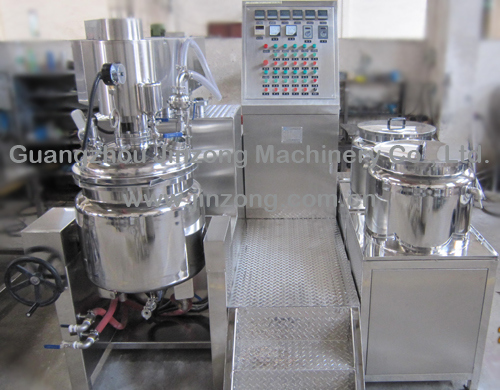

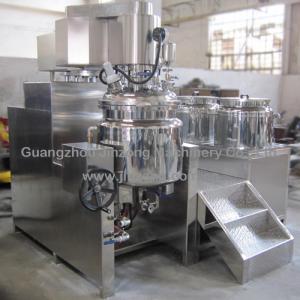

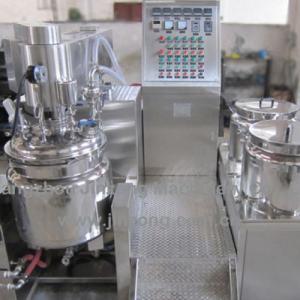

Jinzong Machinery Jrka Series Vacuum Homogenizer Emulsifying Blender Machine Supplier
*Main features
Our JRKA vacuum homogenizer and emulsifier combines the newest-developed Germany technology and world-advanced unique function, its main components are imported originally from Germany. With new-structure, superior function, it is with fixed high-efficiency homogeneous emulsifier at the bottom-,The complete-obscuration vacuum status with inner recycle system, All these make it very suitable for all kinds the production of cream and skin milk , and Compared to the traditional variety of emulsification equipment ,it has greatly improved the production efficiency and goods quality.
*Application:
The Vacuum mixer homogenizer use to produce cream, lotion,ointment in cosmetic, food, pharmaceutic industries.
*Advantage:
Our JRKA vacuum homogenizer and emulsifier combines the newest-developed Germany technology and world-advanced unique function, its main components are imported originally from Germany. With new-structure, superior function, it is with fixed high-efficiency homogeneous emulsifier at the bottom-,The complete-obscuration vacuum status with inner recycle system, All these make it very suitable for all kinds the production of cream and skin milk , and Compared to the traditional variety of emulsification equipment ,it has greatly improved the production efficiency and goods quality.
*Product Function Brief of Vacuum Homogenizing Emulsifying machine
Stainless steel: SUS316L
Adopt hydraulic lift cover
High-speed homogenizing blender(speed from 0-3000RPM, frequency speed regulation)
Scraper blender speed: 0-83 RPM.
The working procedure is operated in the condition of vacuum in order to prevent the material coming into being buble after high-speed blending and reach the request of sanitation and asepsis.
CIP cleanning system is equipped in this system.
The contact part of vessel is made of SUS316L. other parts are made of SUS304.
Mirror finish of the inside surface is 300mesh.
Using SIMENS motor in order to ensure the stabilization of the contral.
Using Panasonic transducer.
*Technical Parameter
Note: In case of inconformity of the data in the table due to technical improvement or customization, the real object shall prevail.
*Features:
High efficient emulsifier: it is a high efficient German compound homogeneous emulsifier with six-layer shear teeth of special structure, shearing more times, transient partial pressure up to 100Mpa above .its emulsification effect for materials which goes through the emulsifier is dozens of times than that of common ones.
Precision motion mechanism and cooling system: high efficiency, power loss is small, heterogeneous devices can work long time, the application of special process requirements
Dead space-free multi-functional flow disturbance stirring system: it may effectively improve the stirring rate and mixing effects;
Production of non-dead, out of less material residue: the JRKA homogeneous emulsifier type on the same machine, than the other types of emulsion is better;
The cover of the main boiler can lift : to ensure that maintenance and cleaning easy;
All lifting system uses hydraulic mechanism to ensure the smooth movement, accurate, and security;
Manual control, operation and easy maintenance.

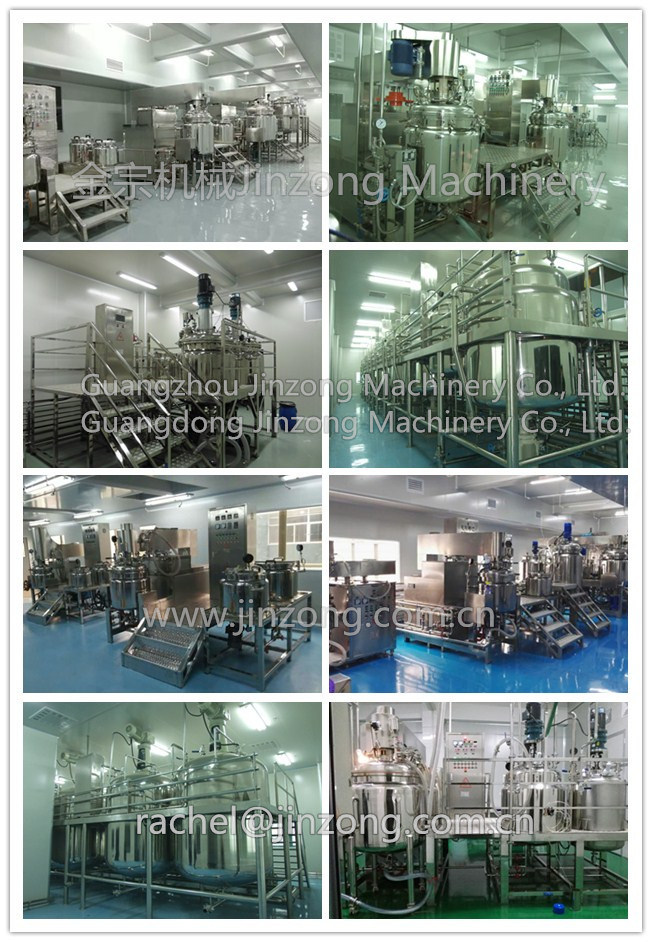

*Semiautomatic or Automatic production line
Our semi-automatic series & Automatic series Production Line has win the acknolwledge by many big enterprise, such as Guangzhou LangQi, Guangzhou LIBY, Guangzhou Tianqi etc.
Our production line is specially designed according to user's production technics and condition, and our company can provide from design, production, installment to raw material supply, which means the complete process of the project.

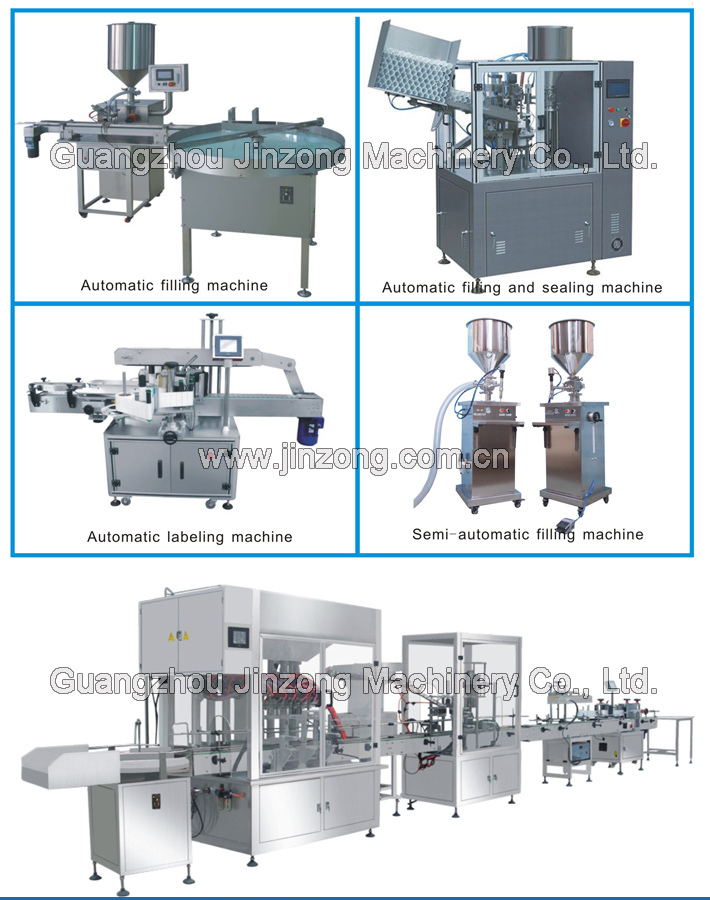

*Packaging equipment
Please let me know your bottles' size and shape, cap's size and shape, label's shape, we will make a complete solution according to your requirements for you!
*After-sales service:
1> one year from date of delivery, if any spare parts be broken within warranty and not caused by improperly operation, we would offer the new parts for free.
2> Provide professional after-sales service engineers to abroad installation and debugging.
*ONE-STOP SERVICES
According to market and customer demands, our company is continuously researching, developing, upgrading and improving various products, striving to build the firs "one-stop" type cosmetic machinery shopping with machinery & equipment, cosmetic raw material, packing materials, technical consultation and other services
*Providing technical support in the aspects of field commissioning and running of the products sold.
*Field failure diagnosis and maintenance.
*Providing spare parts and fittings, maintenance and servicing plans.
*Choosing Jinzong Machinery is choosing professional technical support and good after-sales service.

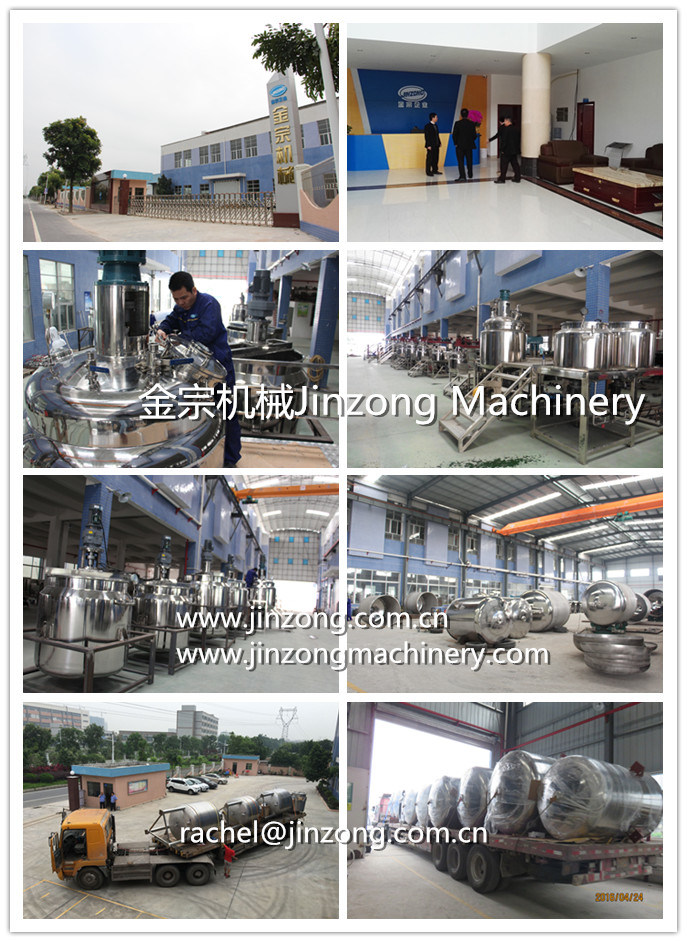

*About us:
Guangzhou / Guangdong Jinzong Machinery Co., Ltd. is a professional manufacturer of cosmetic,chemical, biological & pharmaceutical machinery and equipment more than 20 years .
Jinzong Machinery is a technology innovative enterprise focusing on machinery design, manufacturing and system integration.
Product lines range from:
1> Cosmetic Machinery: water treatment ,vacuum emulsifying machine,liquid detergent mixing machine,storage tank,solid soap making machine,perfume making machine, color paste mill, filling machine etc.
2> Chemical Machinery: reactor, mixing equipment, separation equipment, storage tank, disperser, mill etc.
3> Biological and Pharmaceutical Machinery: vacuum ointment machine, fermentation tank, sanitary stainless reactor,alcohol deposition can, collocation tank etc.
*Our strength
1. More than 20 years extensive experience in the machinery manufacturing in Cosmetic and cheimical biological & pharmaceutical industry.
2. Quality, 80% materials and components are purchased from 3M, ABB, Siemens, Panasonic, Schneider. Up to now, all core machinery are with CE Certificate. We carry out products designing, manufacturing, assembling and detection fully in accordance with ISO9001-2008 Quality Management System issued by Swiss SGS Company.
3. Good reputation in industry. Many years are awarded "defend the contract heavy credit enterprise"
4.Have a Professional after-sales service engineering team.
5.Large scale plant. Currently, we have 2 processing bases, Zhaoqing factory, covering a total area of more than 17,000 square meters,and Shaoguan factory,covering a total area of more than 30,000 square meters. There are more than 160 sets of processing machinery including large vertical lathe, 5-axis horizontal machining center, large planer type milling machine, automatic polishing machines etc. With the help of our strong processing capacity, we produce more than 1000 sets of equipment every year
*Main features
Our JRKA vacuum homogenizer and emulsifier combines the newest-developed Germany technology and world-advanced unique function, its main components are imported originally from Germany. With new-structure, superior function, it is with fixed high-efficiency homogeneous emulsifier at the bottom-,The complete-obscuration vacuum status with inner recycle system, All these make it very suitable for all kinds the production of cream and skin milk , and Compared to the traditional variety of emulsification equipment ,it has greatly improved the production efficiency and goods quality.
*Application:
The Vacuum mixer homogenizer use to produce cream, lotion,ointment in cosmetic, food, pharmaceutic industries.
*Advantage:
Our JRKA vacuum homogenizer and emulsifier combines the newest-developed Germany technology and world-advanced unique function, its main components are imported originally from Germany. With new-structure, superior function, it is with fixed high-efficiency homogeneous emulsifier at the bottom-,The complete-obscuration vacuum status with inner recycle system, All these make it very suitable for all kinds the production of cream and skin milk , and Compared to the traditional variety of emulsification equipment ,it has greatly improved the production efficiency and goods quality.
*Product Function Brief of Vacuum Homogenizing Emulsifying machine
Stainless steel: SUS316L
Adopt hydraulic lift cover
High-speed homogenizing blender(speed from 0-3000RPM, frequency speed regulation)
Scraper blender speed: 0-83 RPM.
The working procedure is operated in the condition of vacuum in order to prevent the material coming into being buble after high-speed blending and reach the request of sanitation and asepsis.
CIP cleanning system is equipped in this system.
The contact part of vessel is made of SUS316L. other parts are made of SUS304.
Mirror finish of the inside surface is 300mesh.
Using SIMENS motor in order to ensure the stabilization of the contral.
Using Panasonic transducer.
*Technical Parameter
| Model | Volume of Main Boiler (L) | Volume of Pretreament Boilers (L) | Emulsifying motor | Mixing motor | Dimension | ||
| Power(kw) | Speed(r/min) | Power(kw) | Speed(r/min) | ||||
| 50 | 75 | 45/65 | 4 | 0-3000 | 1.5 | 0-80 | 2700x2500x2000-2700 |
| 100 | 130 | 70/100 | 4 | 1.5 | 2900x2500x2000-2800 | ||
| 200 | 260 | 120/190 | 5.5 | 2.2 | 3200x3000x2400-3350 | ||
| 300 | 375 | 150/260 | 7.5 | 3 | 3350x3100x2550-3650 | ||
| 500 | 620 | 300/460 | 11 | 4 | 3800x3400x2850-4100 | ||
| 1000 | 1250 | 620/900 | 15 | 5.5 | 4150x4150x3700-5200 |
*Features:
High efficient emulsifier: it is a high efficient German compound homogeneous emulsifier with six-layer shear teeth of special structure, shearing more times, transient partial pressure up to 100Mpa above .its emulsification effect for materials which goes through the emulsifier is dozens of times than that of common ones.
Precision motion mechanism and cooling system: high efficiency, power loss is small, heterogeneous devices can work long time, the application of special process requirements
Dead space-free multi-functional flow disturbance stirring system: it may effectively improve the stirring rate and mixing effects;
Production of non-dead, out of less material residue: the JRKA homogeneous emulsifier type on the same machine, than the other types of emulsion is better;
The cover of the main boiler can lift : to ensure that maintenance and cleaning easy;
All lifting system uses hydraulic mechanism to ensure the smooth movement, accurate, and security;
Manual control, operation and easy maintenance.
*Semiautomatic or Automatic production line
Our semi-automatic series & Automatic series Production Line has win the acknolwledge by many big enterprise, such as Guangzhou LangQi, Guangzhou LIBY, Guangzhou Tianqi etc.
Our production line is specially designed according to user's production technics and condition, and our company can provide from design, production, installment to raw material supply, which means the complete process of the project.
*Packaging equipment
Please let me know your bottles' size and shape, cap's size and shape, label's shape, we will make a complete solution according to your requirements for you!
*After-sales service:
1> one year from date of delivery, if any spare parts be broken within warranty and not caused by improperly operation, we would offer the new parts for free.
2> Provide professional after-sales service engineers to abroad installation and debugging.
*ONE-STOP SERVICES
According to market and customer demands, our company is continuously researching, developing, upgrading and improving various products, striving to build the firs "one-stop" type cosmetic machinery shopping with machinery & equipment, cosmetic raw material, packing materials, technical consultation and other services
*Providing technical support in the aspects of field commissioning and running of the products sold.
*Field failure diagnosis and maintenance.
*Providing spare parts and fittings, maintenance and servicing plans.
*Choosing Jinzong Machinery is choosing professional technical support and good after-sales service.
*About us:
Guangzhou / Guangdong Jinzong Machinery Co., Ltd. is a professional manufacturer of cosmetic,chemical, biological & pharmaceutical machinery and equipment more than 20 years .
Jinzong Machinery is a technology innovative enterprise focusing on machinery design, manufacturing and system integration.
Product lines range from:
1> Cosmetic Machinery: water treatment ,vacuum emulsifying machine,liquid detergent mixing machine,storage tank,solid soap making machine,perfume making machine, color paste mill, filling machine etc.
2> Chemical Machinery: reactor, mixing equipment, separation equipment, storage tank, disperser, mill etc.
3> Biological and Pharmaceutical Machinery: vacuum ointment machine, fermentation tank, sanitary stainless reactor,alcohol deposition can, collocation tank etc.
*Our strength
1. More than 20 years extensive experience in the machinery manufacturing in Cosmetic and cheimical biological & pharmaceutical industry.
2. Quality, 80% materials and components are purchased from 3M, ABB, Siemens, Panasonic, Schneider. Up to now, all core machinery are with CE Certificate. We carry out products designing, manufacturing, assembling and detection fully in accordance with ISO9001-2008 Quality Management System issued by Swiss SGS Company.
3. Good reputation in industry. Many years are awarded "defend the contract heavy credit enterprise"
4.Have a Professional after-sales service engineering team.
5.Large scale plant. Currently, we have 2 processing bases, Zhaoqing factory, covering a total area of more than 17,000 square meters,and Shaoguan factory,covering a total area of more than 30,000 square meters. There are more than 160 sets of processing machinery including large vertical lathe, 5-axis horizontal machining center, large planer type milling machine, automatic polishing machines etc. With the help of our strong processing capacity, we produce more than 1000 sets of equipment every year
