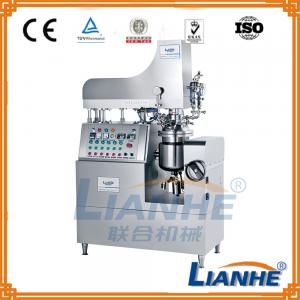

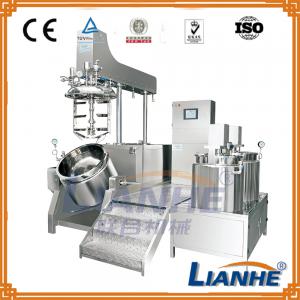

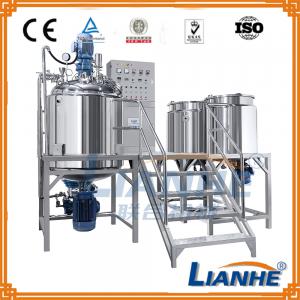

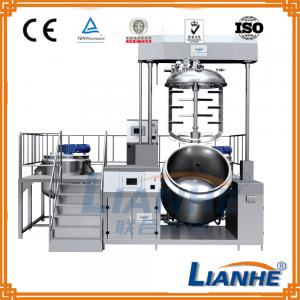

1. Product Description:
The vacuum emulsifying mixer is mainly composed of water pot, oil pot, emulsifying pot, vacuum system, lifting system (optional), electric control system (PLC is optional), operation platform, etc.
2. Application Field And Usage:
The product is mainly applied in such industries as daily chemical care products, biopharmaceutical industry, food industry, paint and ink, nanometer materials, petrochemical industry, printing and dyeing auxiliaries, pulp & paper, pesticide, fertilier, plastic & rubber, electrics and electronics, fine chemical industry, etc. The emulsifying effect is more prominent for materials of high base viscosity and high solid content.
3. Performances And Features:

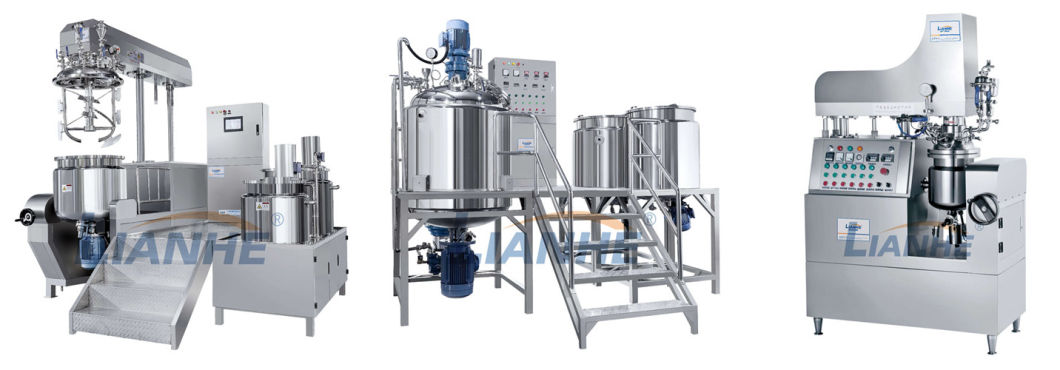

1. The vacuum emulsifiers produced by our company include many varieties. The homogenizing systems include upper homogenization, lower homogenization, internal and external circulating homogenization. The mixing systems include single-way mixing, double-way mixing and helical ribbon mixing. The lifting systems include single -cylinder lifting and double-cylinder lifting. Various high quality products can be customized according to customer's requirements.
2. The triple mixing adopts the imported frequency converter for speed adjusment, which can meet different technological demands.
3. The homogenizing structure made through German technology adopts the improted double-end mechanical seal effect. The maximum emulsifying rotation speed can reach 4,200rpm and highest shearing fineness can reach 0.2-5μm.
4. The vacuum defoaming can make the materials meet the requirement of being aseptic. The vacuum material sucking is adopted, and especially for the powder materials, vacuum sucking can avoid dust.
5. The emulsifying pot lid can adopt lifting system, easy to clean and the cleaning effect is more abvious, the emulsifying pot can adopt tilt discharge.
6. The pot body is welded by imported three-layer stainless steel plate. The tank body and pipes adopt mirror polishing, which fully meet the international standards.
4. Technical Parameter:
| Model | Effective Capcity | Emulsifying Motor | Agitator | Vacuum pump | Heating power | ||||
| KW | R/MIN | KW | R/MIN | KW | Limit Vacuum | Electric heating | Steam heating | ||
| VME-B10 | 10 | 0.55 | 0-3600 | 0.37 | 0-85 | 0.37 | -0.09 | 6 | 2 |
| VME-B20 | 20 | 0.75 | 0-3600 | 0.37 | 0-85 | 0.37 | -0.09 | 9 | 3 |
| VME-B50 | 50 | 2.2 | 0-3600 | 0.75 | 0-80 | 0.75 | -0.09 | 12 | 4 |
| VME-B100 | 100 | 4 | 0-3500 | 1.5 | 0-75 | 1.5 | -0.09 | 24 | 9 |
| VME-B150 | 150 | 4 | 0-3500 | 1.5 | 0-75 | 1.5 | -0.09 | 24 | 9 |
| VME-C200 | 200 | 5.5 | 0-3300 | 1.5 | 0-65 | 2.2 | -0.09 | 28 | 10 |
| VME-C300 | 300 | 5.5 | 0-3300 | 2.2 | 0-65 | 2.2 | -0.085 | 32 | 12 |
| VME-C500 | 500 | 7.5 | 0-3300 | 4 | 0-60 | 4 | -0.085 | 50 | 16 |
| VME-C800 | 800 | 11 | 0-3300 | 5.5 | 0-60 | 4 | -0.08 | 65 | 25 |
| The parameters are for reference only, the products and capacity can be customized. |

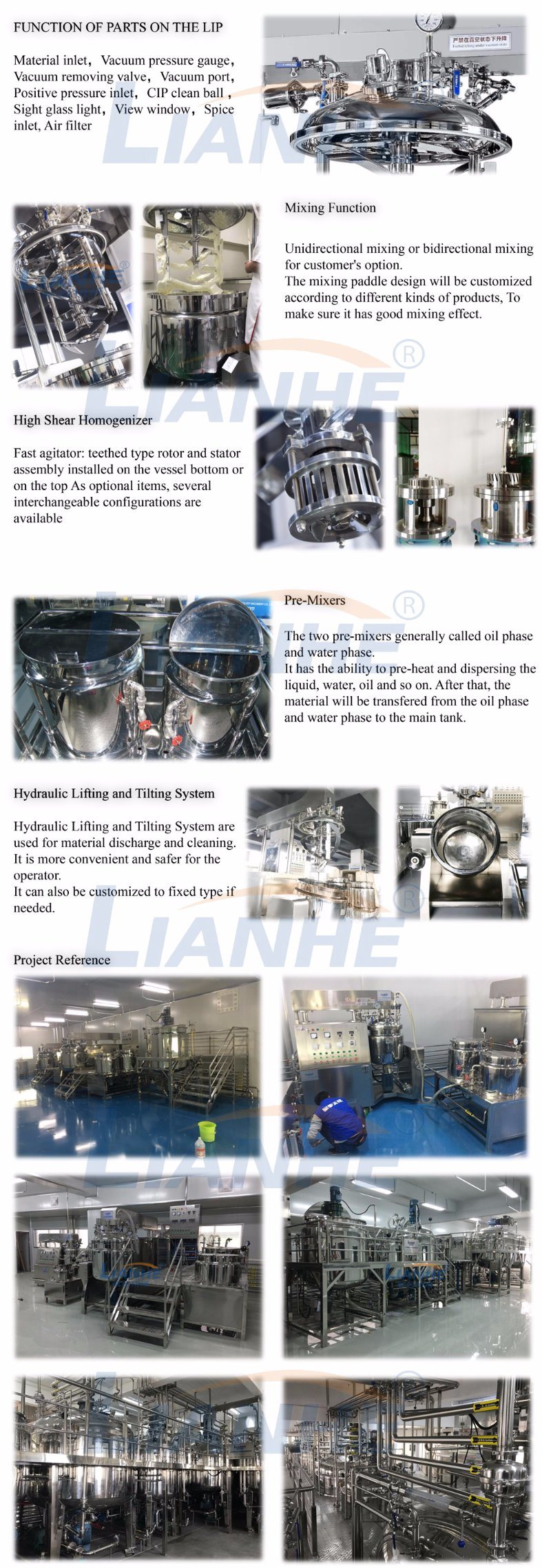

5. Analysis of The Machine:

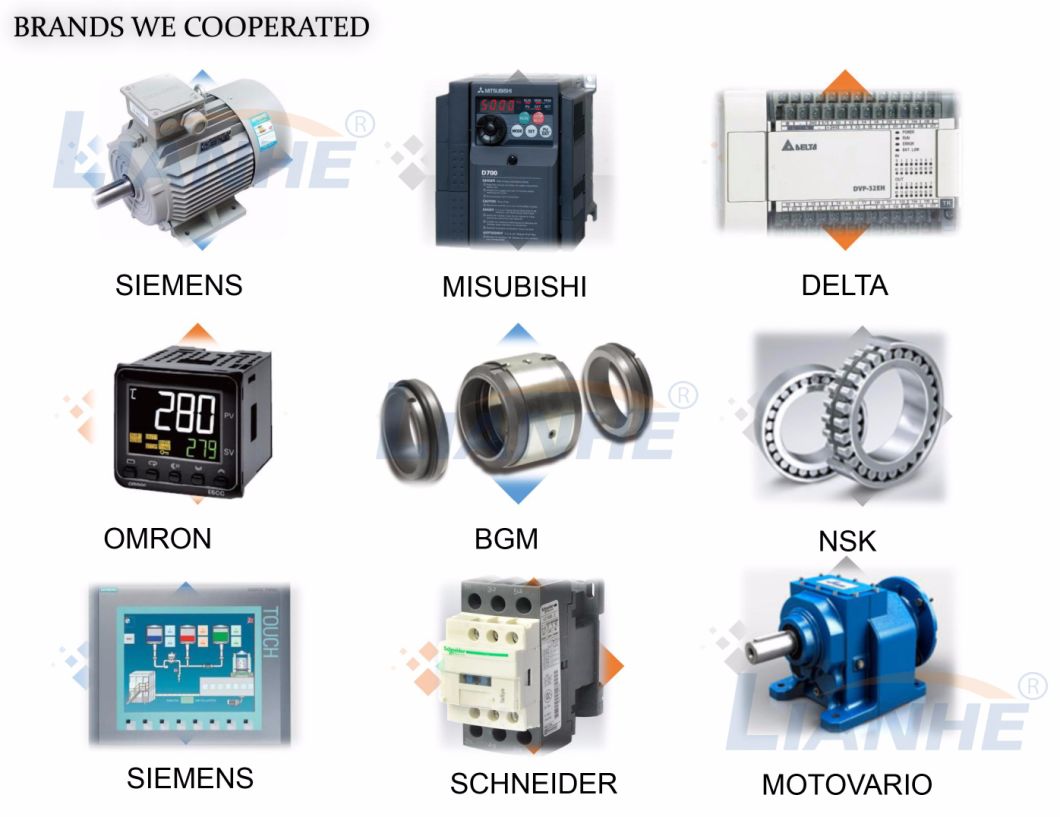

6. Material Sources:
7. Company & Factory:
8. FAQ:
1. A: Are you factory?How many workers do you have?
B: Yes,we are factory. One of our factory is located in Guangzhou and another one is in Jiangsu province. We have about 100 workers in our factory and we have 18 years expirence on cosmetic machinery.
2. A: What about after sale service?
B: We provide two years warranty period for large equipment, such as hydraulic homogenizer ,vacuum emulsifying mixer etc. One year for small filling machines, such as semi-automatic labeling machine series.
We provide wearing parts(not caused by improper operating) for free within the warranty period(except delivery fee).
3. A: What about installation?
B: Our engineer can be sent to your country. but customer should pay the air tickets. besides, customer should arrange the accommodation for them during the trip.
4. A: What do we do if we encounter problem about the machine ?
B: Show us the picture or video of the problem. If the problem is from small machine, we will send you solution by video. If the problem is from large machine, our engineer will go to your factory (customer will pay the fee during the trip).
5. A: How can you control the quality and delivery?
B: All our machines will be tested before packaging. wooden packaing is strong and safety for long delivery.
