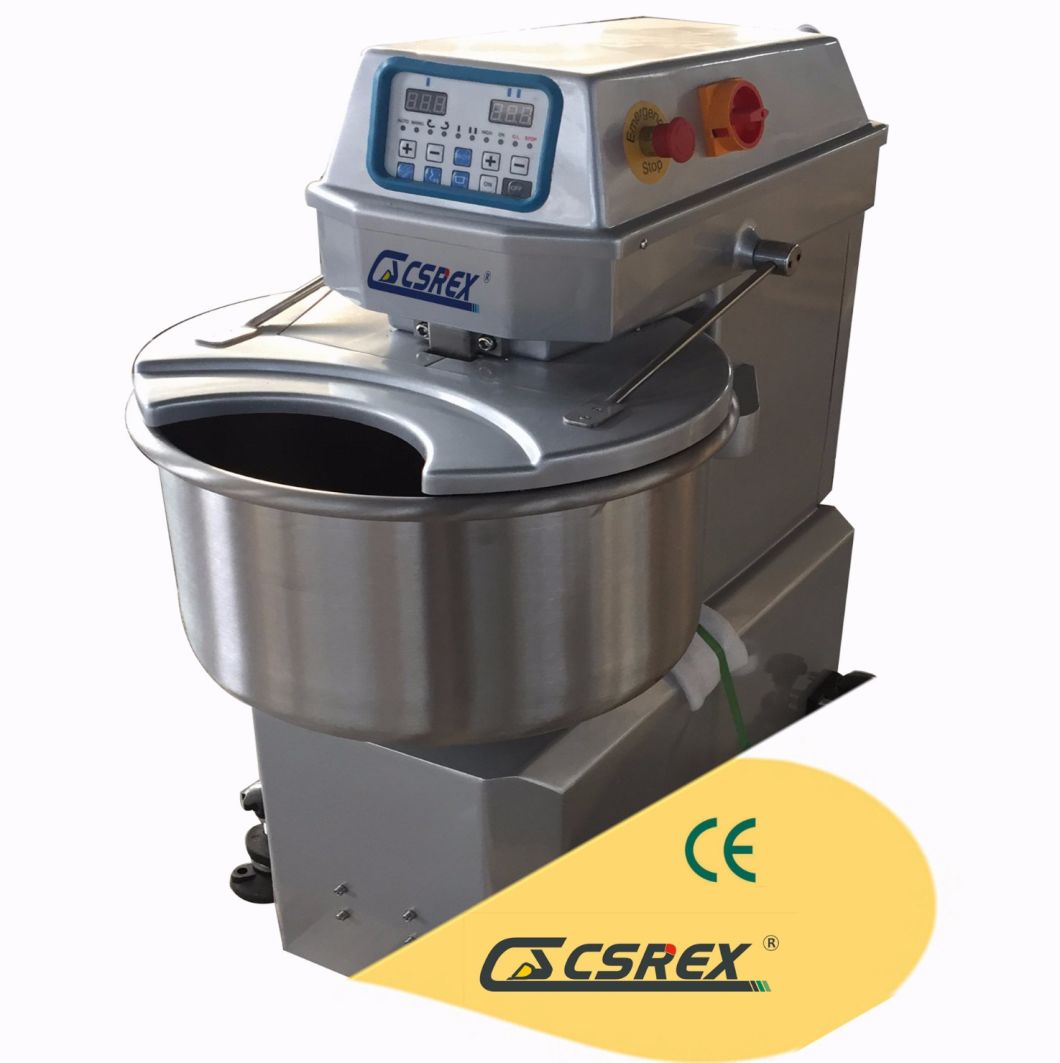

Baking Bakery Equipment Planetary Mixer Spiral Dough Mixer

PRIMARY PARAMETERS

Model NO.

CS-M25

Color

Silver

Item

Dough Kneader

Trademark

CSREX

Transport Package

Wooden Box

Specification

25kg

Origin

Shandong

HS Code

3847489999

DETAIL DESCRIPTION

baking bakery equipment planetary mixer spiral dough mixer

Button/Touch Panel Bowl

CS-M25

Capacity: 60L Flour Capacity: 12.5kgs Dough capacity: 25kgs

Voltage: 110/220/230/380V Frequency: 50/60Hz Power: 2200W

Mixing Speed: 140/280RPM Bowl Speed: 12.8/25.5RPM

Net Weight: 130kgs Packing Size: 600*830*1050mm

Series

Model	CS-M25	CS-M50	CS-M80	CS-M120	CS-M200
Capacity(kg)	Flour	12.5	25	50	75	125
Dough	25	50	80	120	200
Power(kw)	Spiral	2.2	3	4.5	9	12
Bowl	-	0.375	0.75	0.55	1.5
Spiral speed(rpm)	1^st speed	140	135	125	110	98
2^nd speed	280	270	250	220	196
Bowl speed(rpm)	1^st speed	12.8	17.8	17.2	13	11
2^nd speed	25.5	17.8	17.2	13	11
Weight(kg)	135	320	385	610	1300
Dimensions	Width	550	600	750	830	980
Depth	830	970	1120	1300	1580
Height	1050	1250	1300	1470	158

Features:

CSREX approved by State Intellectual Property Office of

China.

Stable running and low noise due to innovative design
of gearless transmission structure.

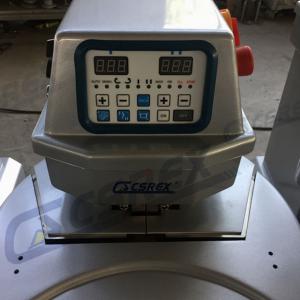

Touch control by microcomputer.
Automatic speed adjustment and fitted with built-in timer.

Both manual and automatic control.

Exclusive technology with durable stretch forming hardtop.

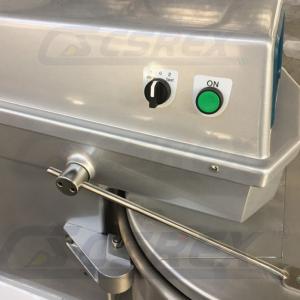

Controls

   The following controls are standard on all
  Spiral Mixers:
   separate start and emergency stop buttons so operators

can shut down the mixer immediately in an emergency

situation, and thermal overload protection

Cord and Plug

6 ft. flexible three wire cord and top quality plug.

Transmission

    Heat-treated, hardened alloy, precision milled gears
   operate with planetary action. Gears are packed in a long-
   lasting, high pressuregrease. Planetary gears are driven by
   direct linkage to the motor drive shaft. This design yields
   high-torque mixing power.

Bowls and Agitators

   Standard equipment includes high quality stainless steel

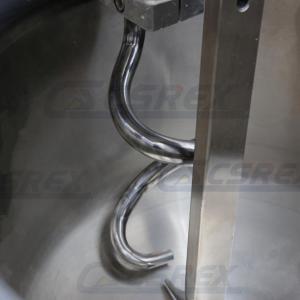

   bowl, dough hook, flat beater,  and whip. A sturdy hand
   lever on the body column raises and lowers the bowl
  as well as locking in place at the top and bottom positions.

Attachments

Standard is the No. 12 hub for powering a

   standard size vegetable slicer/cheese shredder and a
   standard size meat mincer/grinder. Spiral mixer with
   fixed bowl series
