10 t/h Maize Processing Plant
GRAIN CLEANING & GRADING PLANT
1.Air and vibration wheat seed cleaner 2.Destoner with elevator 3.Gravity separator with elevator
4.Magnetic separator with elevator(Optional) 5.Polishing machine with elevator(Optional) 6.Grader machine with elevator)
7.Packaging machine with elevator and sewing machine
Process and function:
Dust and impurities are removed by air cleaner ----destoner Stones in green bean is separated and discharged--gravity separator Bad seeds such as blighted seeds,smut seeds,moldy seeds are separated - magnetic separator Clod is separated -- Polishing machine Green bean is polished ---Grader machine,Polished green bean is divided into different size by grader machine,large size,medium size and small size-Packaging machine,fine green been is packed into bags quantitatively and bags sewed by sewing machine
Main machine for green mung bean processing plant
No. | Name | Quantity | Unit price (USD) | Total price (USD) | Remarks | Power per( KW) |
1 | HLD220 Screw Conveyor | 1 | 0 | 0 |
| 1.5 |
2 | 5XZC-5DX Seed Cleaner & Grader | 1 | 0 | 0 |
| 7.54 |
3 | QSC-5X Gravity Destoner | 1 | 0 | 0 | With Elevator | 6.6 |
4 | 5XZ-5 Gravity Separator | 1 | 0 | 0 | With Elevator | 9.7 |
5 | PG-5D Polishing Machine | 1 | 0 | 0 | With Elevator | 7.5 |
6 | 5XFC-5D Grader with Elevator | 1 | 0 | With Elevator | 2.15 | |
7 | HLD Packaging Machine | 1 | 0 | 0 | With Elevator and Sewing Machine | 0.75 |
8 | Power Distribution Box | 1 | 0 | 0 | Control All System. |
|
Total Amount: |
| Total Power 35.74 KW |

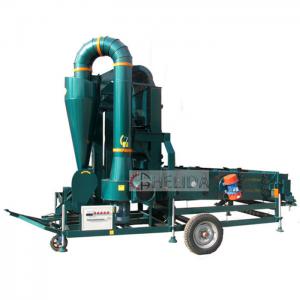

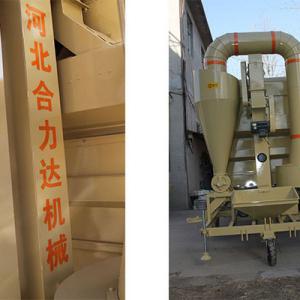

1. 5XZC-5DX Seed Cleaner & Grader
l Dust cyclone separator
l Movable model suitable for plant, field and remote area working
l Work independently mounted elevator
l Favorable price for promising market demand
l High efficiency and capacity
INTRODUCTION
Seed cleaner & grader is used for cleaning and grading seeds, grains, cereals, and other granule products. It can be equipped to suit a variety of special jobs and purposes.
Dust and light impurity are removed by aspirator fan. Material falls on sieve layers and was separated by sieves according to width and thickness difference. All the oversize and undersize impurities were discharged from outlets.
Model | 5XZC-5DX |
Dimension (L*W*H) | 4790×1800×3100 mm |
Dimension of sieves | 2000×1000 mm |
Capacity (count by wheat) | 5000 kg/h |
Weight | 1750 kg |
Power | 7.54KW |
2. 5XZ-5 Gravity Separator
l High performance and durable quality
l Easy installation, operation and maintenance
l Inclination and oscillation adjustable
l Available deck for many different material
l Dust cover available to protect environment
l Deck is designed for optimum distribution of air
APPLICATION
5XZ-5 gravity separator is suitable for efficient grading all cereals, grains ,pulses ,beans and seeds of all crops such as coffee bean, wheat,paddy,barely,maize,millets,sunflower seed,soybean,oil seeds ,rice etc.
It can efficiently remove partially eaten, immature, insect damaged sick seed from the seed.To achieve high grading quality of seed ,gravity separator become the basic machinery for every seed company.
Dimension (L*W*H) | 3200×1600×1600 mm |
Screen Area | 3.3m2 |
Capacity (count by wheat) | 5000 kg/h |
Lateral angle of inclination | 0~6° |
Amplitude | 7mm |
Weight | 1950 kg |
Power | 9.7 kw |
3 QSC-5X Grain and Seed Destoner
QSC-5X Seed Destoner Machine is used to remove heavy foreign impurity like stone, metallic and glass pieces etc on the principle of weight difference.
With the combination of fluidization and deck oscillation, heavy particles migrate to upper levels of the deck discharged from outlets and the light particles move to the lower level of the deck.
l Excellent performance and high capacity
l Wide application for all kinds of seeds, beans, raw materials
l Elevator available
l Durable quality with favorable price
l Easy operation and maintenance
