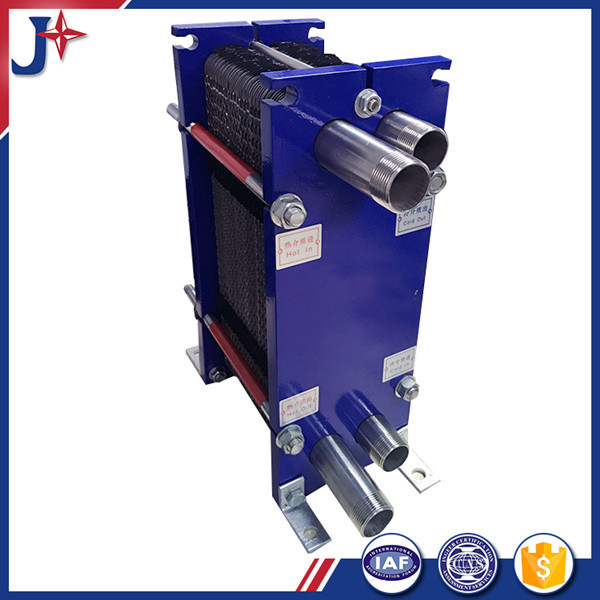

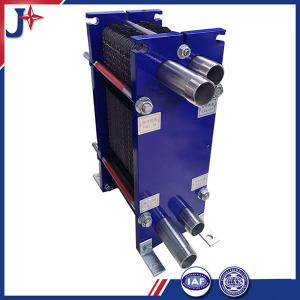

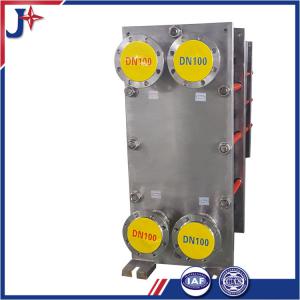

Plate Heat Exchanger/Brazed Plate Heat Exchanger/Heat Exchanger Unit/ Heat Exchanger Plate/Heat Exchanger Gasket | ||
General introduction | ||
Manufacturer: Shanghai Jiangxing Chemical Equipment CO., LTD | ||
Address: Rm 502, 2nd Building, No.789 Tianzhu Rd Jiading Dist, Shanghai China | ||
Tel: +86-21-69116787 | Fax:+86-21-69017009 | Mobile: +8617717026575 |
Website: www.shjxheatexchanger.com |
Model | Central Size | Overall dimensions |
M3 | 357*60mm | 429*125mm |
M6 | 640*140mm | 747*248mm |
M10 | 719*223mm | 871*371mm |
M15 | 1294*298mm | 1498*496mm |
M20 | 1475*353mm | 1745*620mm |
TS6 | 380*203mm | 509*329mm |
TL10 | 1338*218mm | 1499*371mm |
T20 | 1479*353mm | 1745*620mm |
TS20 | 698.5*363mm | 1749*621mm |
Brand | Model |
Alfa Laval | M3,M6,M6M,M10,M15,M20,MX25,M30,Clip3,Clip6,Clip8,Clip10,TS6M,TL6,T20,TS20 |
P5,P12,P13,P14,P15,P16,P17,P2,P20,P225,P25,P26,P30,P31,P32,P36,P41,P45,P01 | |
A3,A10,A15,A20,A30,AK20,AX30,AM10,AM20,H7,H10 | |
GEA | NT100M,NT100T,NT100X,NT150L,NT150S,NT250L,NT250S,NT350S,NT50M,NT50T, |
NT50X,NT50M,VT04,VT10,VT20,VT405,VT40,VT805,VT80,VT1306,VT130,VT180 | |
APV | T4,H17,N35,N25,SR2,N50,A055,J060,M92 Ects |
Vicarb | V4,V7,V8,V13,V20,V28,V45,V55,V60,V85,V100,V110,V120,V130 Ects |
Sondex | S4,S7,S8,S9,S14,S15,S15FS,S21,S22,S30 Ects |
Swep | GX-12,GX-12,GX-018,GX-26,GC-26,GX42 Ects |
API | Sigma9,Sigma26,Sigma27,Sigma37,Sigma66 Ects |

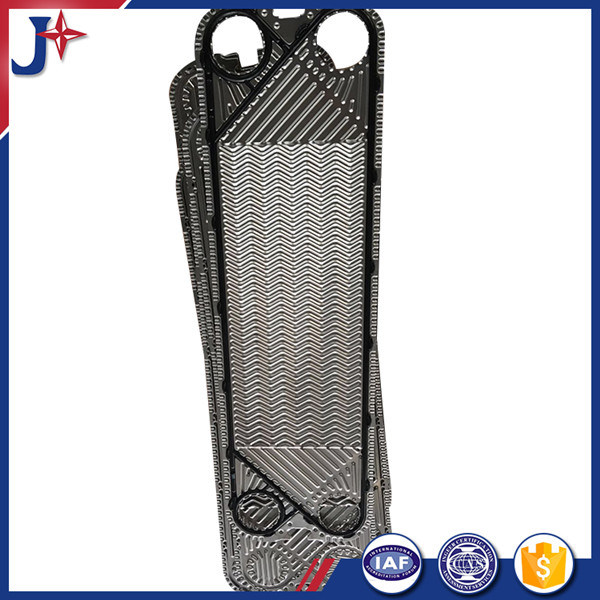

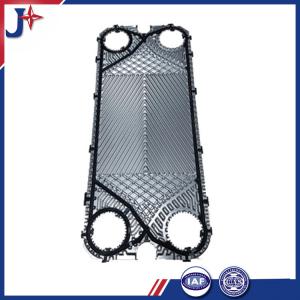

| plate material | Stainless steel(SUS304,316L etc ),Titanium and palladium |
| gasket material | NBR:(applicable temperature -15-+120ºC) HNBR: (applicable temperature -15-+140ºC) EPDM: (applicable temperature -25-+150ºC) HEPDM: (applicable temperature -25-+170ºC) Viton/FPM: (applicable temperature -5-+180ºC) NEOPREKE: (applicable temperature -5-+130ºC) VNQ: (applicable temperature -65-+250ºC) |
| Thickness of plate | 0.5mm |
| Features | Cost effective and lower operation cost |
| Compact structure, easy installation | Thin plate High heat exchange coefficient Less lag solution |
| Less weight | Only 20-30% weight of shell-tube heat exchanger |
| Less water consumption | High thermal efficiency allows BPHE only 1/3 of cold water consumption of shell-tube exchangers. |
| Durable | Up to200°C temperature and 45 bar pressure No corrosion Eliminating gasket |
| Minimal Fouling | The greatest turbulence in the flow results in less fouling and fewer cleaning |
| High Quality | Jiangxing is recognized as the best heat exchanger producer in domestic market with years of operation experience and accurate computer aided design. |
Food industry
Milk pasteurization, Milk and beverage pasteurization, Wine tempering, Bottled water treatment, CIP (Cleaning-in-Place) heating, Reverse osmosis water.
Marine application
Central cooling of the main or auxiliary engines or turbines, Lubrication oil cooling, Recooling of circulated water for cooling cylinders, pistons, injection nozzles, Cooling of Baoder oil, compressor oil and other lubricants, Preheating of lubrication oil and heavy fuel oil, Preheating of seawater for fresh water production, Heat recovery, Heat exchange to air-condition the passengers' cabins and freight spaces
Others
Turbine oil cooler, Chemical industry, district heating, district cooling, swimming pool heating, solar heating,
High quality
Reasonable price
Packing
Plywood Case
