Multiple-effect Evaporation System

Description :
Multi-effect Evaporation system is suitable for food, pharmaceutical, chemical, biological engineering, environmental engineering, waste recycling and other sectors of high concentration, high viscosity, also with insoluble solids to  low concentration.Multi-effect Evaporation system can widely used in the concentration of the glucose, starch sugar, maltose, milk, juice, vitamin C, maltodextrin and other aqueous solution. And also widely used in liquid waste disposal such as industry field of gourmet powder, alcohol and fishmeal.

Advantage
Its outstanding advantage is its continuous operation and low temperature evaporation. It saves energy and time with low loss and maximize remain the material's color, fragrance and favor. It can satisfy the continuous production requirements. This product is mainly used in the industries such as food, Chinese and Western pharmaceutical, biochemical pharmaceutical, further processing of agricultural and auxiliary products, health drinks, juice, fine chemical, light industry, PRO-environment etc.

Structure:

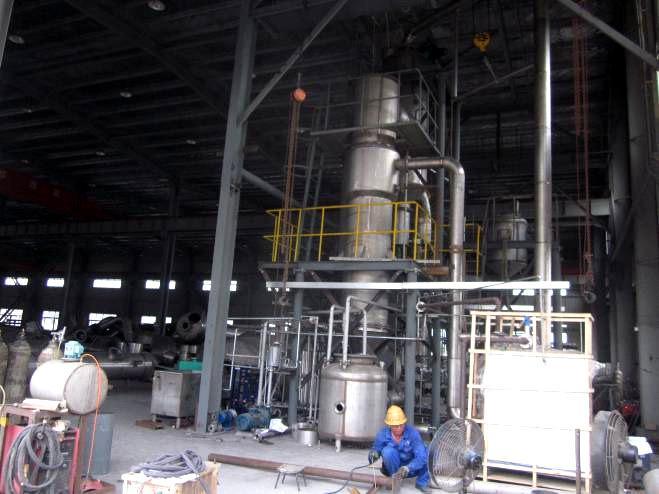

Multiple-effect falling film evaporator consists of (first-effect, second-effect, third-effect)separators and evaporators and pre-heaters,condenser and vacuum pump, feeding pump,circulation pump, discharge pump, condensed water pump, pipeline and fittings, etc. It is equipped with CIP spraying cleaning ball, vacuum gauge, thermometer,pressure gauge,and so on.

Features:
1. It can be also used together with the coercive circulation evaporator and crystallizer to deal with the concentration and product crystallization of high viscous and easy scaled material.
2. It is characterized by high efficiency of heat conduction, low power consumption etc.
3. It can widely use the waster heat (such as the drier's hot air and flue gas), the remaining heat (of condensing water, process water and flash steam) to form a waste heat evaporation machine unit.

Characteristic:
1.. Evaporation capacity: From 500Kg/h to 80T/h
2.Material: Stainless steel 304 or Stainless steel 316L;
3.Full closed process, fast and low temperature evaporation;
4.Inside pipes are mirror polishing seamless sanitary pipes, so material is not easy to paste on the pipe. It's easy for cleaning;
5.Low steam consumption: 1kg steam can evaporate 3.5-4 kg water;
6.Low evaporation temperature:part of secondary steam can be inhaled into single-effect heater through spray type hot pressure pump. This would make full use of the heat and the evaporation temperature is low.
7.Large concentration ratio: adopt falling film evaporation, which make the material liquid with larger viscosity be easy to flow and evaporate, hard to scale,  short concentration time, the concentration ratio can reach to 1:5.
8.This equipment  can realize automatic production, intellectual system management, which is in conformity with GMP standard.
9.Can be designed into different technological process according to the different characteristics of the materials and different users' requirements.
