Industrial plate heat exchangers for sugar starch plant
Introduction:

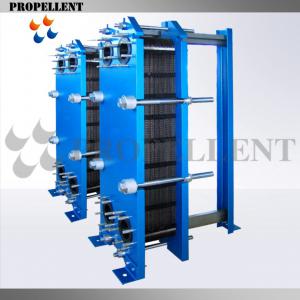

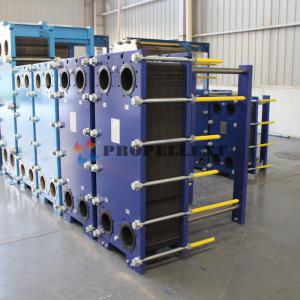

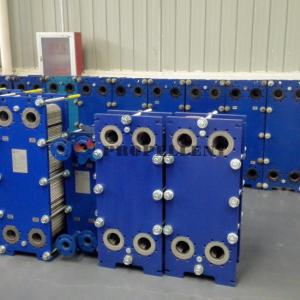

Propellent plate heat exchanger consists of a pack of corrugated metal plates, gaskets and a fix frame, the plate pack is assembled and fixed on the frame by tightening bolts. The heat is transferred through the plate between the channels which are sealed by gaskets. Large number of corrugations of the metal plate are formed by different molds to applicable various industries. The plate corrugations promote turbulent flow of fluid and support the plates against different pressure.
High energy efficiency-low operating cost
5mm-12mm wide-gape flow runner
Anti-clog structure
Stable plate package
Highest heat transfer rates
Easy to install-compact design
clip-on gasket
epoxy glue
easy cleaning by CIP
fixed bolt head
Application in Starch industry:
• Heating and cooling of starch solutions
• Heating and cooling of corn spring water and wheat starch - waste water
• Super-heating of saccharified starch solutions for the inactivation of enzymes
• Multi-stage vaporizing systems for glucose, dextrose, maltose and sorbitol
• High concentration of HFS 95 fruit sugar
• Pre-freezing and deep-freezing of syrups and concentrates
• Condensation of flash steam

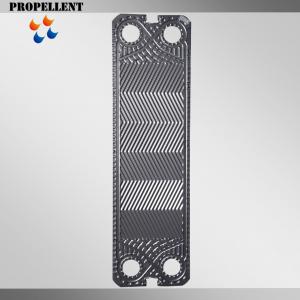

| Plate heat exchanger PL-SPK52 | |
| Plates | |
| Type | Single plate |
| Free channel | 3.5 mm-12.0 mm |
| Plate thickness | 0.5 mm-1.0 mm |
Materials | |
| Heat transfer plates | Stainless steel - 304/304L, 316/316L, 254 Titanium Hastelloy C-276 |
| Gaskets | NBR HNBR EPDM |
| Flange connections | Carbon steel Metal lined: stainless steel Alloy 316 |
| Frame and pressure plate | Carbon steel Epoxy painted |
Dimensions | |
| Height | 780 mm |
| Width | 212 mm |
| Length | Up to 1025mm |
| Connection diameter | DN50 |
Technical specifications | |
| Pressure | 20 bar |
| Temperature | 180 ºC |
| Area | 0.15 m2 |
Propellent heat exchanger models:
| Model | Connection diameter | Dimensions(mm) | Veneer area(m2) |
| PL32 | DN32 | 550*129 | 0.05 |
| PL50 | DN50 | 780*212 | 0.15 |
| PL80 | DN80 | 999*337 | 0.30 |
| PL80P | DN80 | 999*338 | 0.30 |
| PL125 | DN125 | 1400*425 | 0.46 |
| PL200 | DN200 | 1766*614 | 0.84 |
| PL50T | DN50 | 492*246 | 0.07 |
| PL50M | DN50 | 864*246 | 0.18 |
| PL50X | DN50 | 1236*246 | 0.26 |
| PL100T | DN100 | 897*445 | 0.30 |
| PL100M | DN100 | 1303*445 | 0.52 |
| PL100X | DN100 | 1709*445 | 0.76 |
| PL150L | DN150 | 1800*541 | 0.96 |
| PL150S | DN150 | 1320*541 | 0.62 |
| PL250S | DN250 | 1736*745 | 1.10 |
| PL250M | DN250 | 2033*745 | 1.13 |
| PL250L | DN250 | 2330*745 | 1.70 |
| PL350S | DN350 | 2140*995 | 1.74 |
| PL350M | DN350 | 2477*995 | 1.70 |

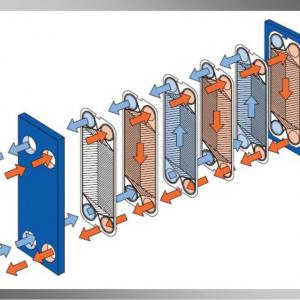

Plate heat exchanger structure
