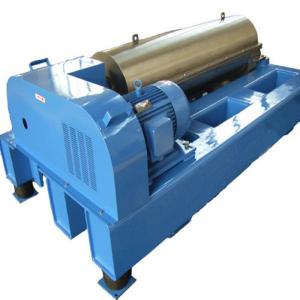

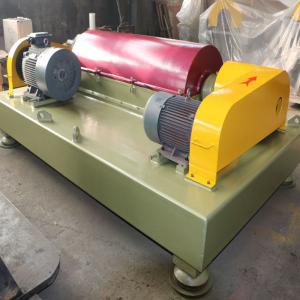

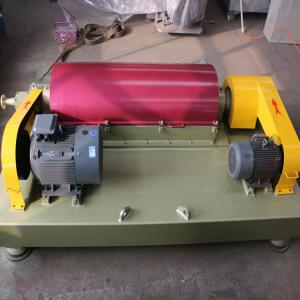

1.Product Overview
Horizontal type spiral precipitated centrifugal machine is called horizontal decanter centrifugal for short. It is a high efficiency horizontal type spiral centrifugal equipment for discharging and separation and precipitation. Generally, it can be divided into horizontal type spiral filtering centrifugal machine and horizontal type spiral precipitated centrifugal machine. It is widely used for dehydration for the sludge in industrial and domestic sewage, besides, it is also used in chemical industrial, pharmacy, food and environmental protection industry, etc.
2. Working Principle
While barrate and spiral are rotating high-speed and syntropy with a certain differential speed, material are introduced into transporting spiral internal cylinder continuously from feed pipe, then inter into barrate after speeding up. The heavier solid phase matter deposit on the barrate wall and form sediment layer under the role of centrifugal field. Transporting spiral will push the sedimentary solid phase content to the cone point of barrate continuously, and discharge out of the machine from slag-drip opening. The lighter solid phase matter form lining liquid loop, and overflow out of barrate from main opening, then discharge out of machine from drain connection. This machine can complete feeding, separating, washing and discharging continuously while working at full speed.
3. Characteristics
Good adaptability: fully considered all kinds of special requirements suggested by material and technology, optimization design is implemented to the main components of appropriability and adjustability. As long as users explain its installation place, physicochemical properties of material processing and technological requirements before buying, we will provide the most applicable model.
High automation: this machine completes feeding, separating, discharging etc. automatically while working with high speed. It realized automatic control of centrifugal separation and centrifugal washing by using programmable controller.
Good operating stability: the differential using by this machine is cycloid gear differential or planet gear differential, it features large torque, extensive adjusting range etc.
Good manufacturability: adopting double electrical machine and double frequency conversion energy regeneration differential rotating speed system to control, adjusting differential rotating speed flexibly and infinitely variable and regulating differential rotating speed momentarily according to the change of material. It is the real energy saving product.
Good operating environment: centrifugal machine separates material under fully enclosed condition. That ensures operating site neat and non-pollution, and realizes the civilization production.
complete and reliable safety protection device: it is equipped with torque protection, power control etc., can effectively eliminate or reduce the damage caused by sudden fault.
Attractive appearance: engine base adopting high quality carbon steel to weld, and surface is smooth after special fabrication processing. It seems integral aesthetic feeling as the compact size and beautiful appearance.
Technical Parameter
Clients from different countries
We always put quality as the first consideration
For further information, pls feel free to contact Rachel!
FAQ
1.Q:Are you a factory or trading company?
A: We are a factory, we have rich experience for manufacturing water processing equipment for more than 10 years.
2.Q:Where is your factory located? How can i visit there?
A: Our factory is located in No.1137, Zhucheng city, Shandong Province, China. It is about 2 hours from Qingdao airport. We can pick you up if you need, welcome to visit our factory.
3.Q: Do you have minimum order quantity request?
A: No minimum order, but it can get a discount if you order a large quantity.
4.Q: Do you have certificates?
A: Yes, we have ISO,SGS certificate.
5.Q: Can you meet my special requirements for my products?
A: Yes, we have a professional design team. We can provide drawings according to your requirements.
6. Q:How do I buy your idea products?
A:You can provide us your water sources, water quality, flow rate and ground area (contact us for more details).
7. Q:How do I pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.
8. Q:What is the delivery time?
A: It depends on order quantities. Generally speaking, the delivery time will be within 4 to 6 weeks.
9. Q: How do you pack the products?
A: We use standard package. If you have special package requirements, we will pack as required, but the fees will be paid by customers.
10. Q: How do you keep your equipments from corrosion?
A: We use the world-famous paint, like SigmaCoatings, PainBow,etc. What's more, we paint strictly according to the standard process.
11. Q: How do you manufacture your equipment ?
A:Our machining technology includes laser/plasma cutting, automatic welding,CNC cutting and bending.
12. Q:How do we install after the equipments arriving destination?
A: We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you. However, the visa fee, air tickets, accommodation, wages will be paid by buyers.
Horizontal type spiral precipitated centrifugal machine is called horizontal decanter centrifugal for short. It is a high efficiency horizontal type spiral centrifugal equipment for discharging and separation and precipitation. Generally, it can be divided into horizontal type spiral filtering centrifugal machine and horizontal type spiral precipitated centrifugal machine. It is widely used for dehydration for the sludge in industrial and domestic sewage, besides, it is also used in chemical industrial, pharmacy, food and environmental protection industry, etc.
2. Working Principle
While barrate and spiral are rotating high-speed and syntropy with a certain differential speed, material are introduced into transporting spiral internal cylinder continuously from feed pipe, then inter into barrate after speeding up. The heavier solid phase matter deposit on the barrate wall and form sediment layer under the role of centrifugal field. Transporting spiral will push the sedimentary solid phase content to the cone point of barrate continuously, and discharge out of the machine from slag-drip opening. The lighter solid phase matter form lining liquid loop, and overflow out of barrate from main opening, then discharge out of machine from drain connection. This machine can complete feeding, separating, washing and discharging continuously while working at full speed.
3. Characteristics
Good adaptability: fully considered all kinds of special requirements suggested by material and technology, optimization design is implemented to the main components of appropriability and adjustability. As long as users explain its installation place, physicochemical properties of material processing and technological requirements before buying, we will provide the most applicable model.
High automation: this machine completes feeding, separating, discharging etc. automatically while working with high speed. It realized automatic control of centrifugal separation and centrifugal washing by using programmable controller.
Good operating stability: the differential using by this machine is cycloid gear differential or planet gear differential, it features large torque, extensive adjusting range etc.
Good manufacturability: adopting double electrical machine and double frequency conversion energy regeneration differential rotating speed system to control, adjusting differential rotating speed flexibly and infinitely variable and regulating differential rotating speed momentarily according to the change of material. It is the real energy saving product.
Good operating environment: centrifugal machine separates material under fully enclosed condition. That ensures operating site neat and non-pollution, and realizes the civilization production.
complete and reliable safety protection device: it is equipped with torque protection, power control etc., can effectively eliminate or reduce the damage caused by sudden fault.
Attractive appearance: engine base adopting high quality carbon steel to weld, and surface is smooth after special fabrication processing. It seems integral aesthetic feeling as the compact size and beautiful appearance.
Technical Parameter
| Model | Basket Dia(mm) | Length-Diameter Ratio | Rotation rate of basket(r/min) | Relative Centrifugal force | Power of motor(w) | Weight(kg) | Overall Dimensions(l*w*h)(mm) |
| LW220*660 | 220 | 3 | 4800 | 2840 | 7.5-11 | 900 | 1650*1150*700 |
| LW220*880 | 220 | 4 | 4300 | 2280 | 7.5-11 | 1000 | 1850*1200*750 |
| LW300*1140 | 300 | 3.8 | 3750 | 2370 | 11-15 | 1500 | 2100*1300*650 |
| LW355*1160 | 350 | 3.3 | 4000 | 3100 | 22 | 2020 | 3067*920*1060 |
| LW355*1460 | 350 | 4.1 | 4000 | 3100 | 22 | 2200 | 3365*920*1060 |
| LW400*1200 | 400 | 3 | 3500 | 2750 | 18.5-22 | 2500 | 2400*1650*900 |
| LW420*1680 | 420 | 4 | 3600 | 3000 | 22 | 2430 | 3320*1000*1060 |
| LW450*1350 | 450 | 3 | 3500 | 3080 | 30 | 2230 | 3750*1090*1250 |
| LW450*1800 | 450 | 4 | 3500 | 3080 | 30-37 | 3500 | 4200*1090*1250 |
| LW530*1800 | 530 | 3.4 | 3200 | 3040 | 45-55 | 3920 | 4565*1230*1350 |
| LW530*2120 | 530 | 4 | 3200 | 3040 | 45-55 | 4200 | 4885*1230*1350 |
| LW730*2400 | 730 | 3.3 | 2400 | 2350 | 110-132 | 9300 | 5500*3200*1450 |
| LW1120*3300 | 1100 | 3 | 1400 | 1200 | 160-200 | 15700 | 7000*3600*1780 |
Clients from different countries
We always put quality as the first consideration
For further information, pls feel free to contact Rachel!
FAQ
1.Q:Are you a factory or trading company?
A: We are a factory, we have rich experience for manufacturing water processing equipment for more than 10 years.
2.Q:Where is your factory located? How can i visit there?
A: Our factory is located in No.1137, Zhucheng city, Shandong Province, China. It is about 2 hours from Qingdao airport. We can pick you up if you need, welcome to visit our factory.
3.Q: Do you have minimum order quantity request?
A: No minimum order, but it can get a discount if you order a large quantity.
4.Q: Do you have certificates?
A: Yes, we have ISO,SGS certificate.
5.Q: Can you meet my special requirements for my products?
A: Yes, we have a professional design team. We can provide drawings according to your requirements.
6. Q:How do I buy your idea products?
A:You can provide us your water sources, water quality, flow rate and ground area (contact us for more details).
7. Q:How do I pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.
8. Q:What is the delivery time?
A: It depends on order quantities. Generally speaking, the delivery time will be within 4 to 6 weeks.
9. Q: How do you pack the products?
A: We use standard package. If you have special package requirements, we will pack as required, but the fees will be paid by customers.
10. Q: How do you keep your equipments from corrosion?
A: We use the world-famous paint, like SigmaCoatings, PainBow,etc. What's more, we paint strictly according to the standard process.
11. Q: How do you manufacture your equipment ?
A:Our machining technology includes laser/plasma cutting, automatic welding,CNC cutting and bending.
12. Q:How do we install after the equipments arriving destination?
A: We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you. However, the visa fee, air tickets, accommodation, wages will be paid by buyers.
