Decanter Centrifuge for Edible Oil Separation Horizontal spiral Centrifuge

Technical Feature

Shanghai, China

500 Sets Per Year

L/C, T/T

Centrifuge

Oil

Sedimentation Type

Send Standard Inquiry

Add Inquiry List

$100~20

PRIMARY PARAMETERS

Model NO.

LWS

Pressure

Low Pressure

Condition

New

Trademark

huading

Transport Package

Standard Exporting Packing

Origin

Yixing, Jinagsu

HS Code

84212920

DETAIL DESCRIPTION

Decanter Centrifuge for Edible Oil Separation Horizontal spiral Centrifuge

All advantages at a glance
Applications
The tricanter centrifuge LWS500 - FNB from Huading Separator is designed for food and beverage applications. It is a continuously operating horizontal solid wall centrifuge. It is ideal for use in the food industry in situations where the material being processed has to be separated into light liquid phase, heavy liquid phases and solids phase. In different optimized executions it is used for a large number of duties, from handling separation of fish press liquid, stick water and extracts, and on the other hand purification of fish oil and liver oil, animals fats, peel oil and similar products.

Features
All parts coming into contact with the product are made of s.s.1.4301 UNS 30400
3-phase AC motor for controlled torque starting via frequency converter
Lowest power consumption
Highest g-force for higher solids output
Adjustable bowl speed via VFD
Automatic adjustment of differential speed via VFD
Two motor drive
Belts for both primary motor and secondary motor

Advantages
High ratio of length to diameter
Easy installation
Easy operation and maintenance
Low space requirement

Auxiliary equipment (at extra cost)
Control unit for automatic operation
Bearing temperature monitoring
Vibration control
Automatic grease lubrication
Set of spare parts
Expand joint
Replaceable solids discharge port

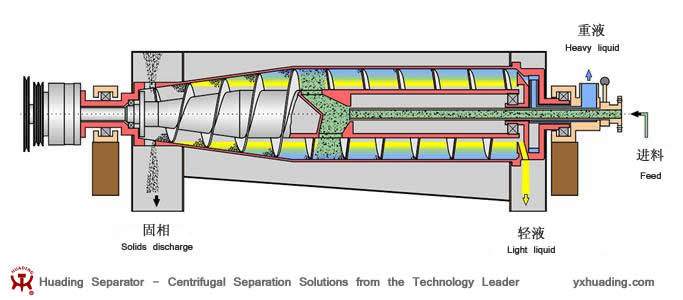

Operating principles and constructional features

Decanter Centrifuge for Edible Oil Separation Horizontal spiral Centrifuge

Technical data
Bowl
Inner Diameter	500 mm
L/D ratio	4.0
Speed	Max.3450 rpm
G-force (Z)	Max.3333g
Comparative capacity	10000L/h
Bowl drive
Primary motor	37 Kw / 30 Kw
Motor peed at 50 HZ	3000 rpm
Secondary motor	11Kw / 7.5Kw
Motor speed at 50 HZ	3000 rpm
Shipping data
Decanter weight	4000Kg
Case dimensions	4500×1200×1500
Shipping weight	Gross 4600Kg

* the actual capacity depend on particle size, content, viscosity .etc

Components	Standard	Option
Bowl and scroll	S.s.1.4301 UNS 30400	-
Liquid outlet	Free	Centripetal pump
Flight hard-facing	Tungsten carbide	Sintered tungsten carbide tiles
Solids outlet parts	Exchangeable	-
Seals,inner bearings	NBR	P.T.F.E / viton
Drive	Two motor drive	Fixed differential speed
Solids discharge	-	Upon request
Solids chute	-	Upon request
Liquid chute	-	Upon request
