Weizhen is a company who is professional and specialize in centrifugal casting.
△ Main drafter of JB/T 11874-2014 ,'Stainless steel centrifugal casting cylinder for separation machine'
△ Director of National Technical Committee for standardization of separation machinery
△ Member of China Foundry Association
△ Member of National Paper Making Machinery Association
△ Director of Sichuan Province Foundry Association
△ Director of Chengdu Chamber of International Commerce
Certificate:
△ ISO9001 Conformity of Quality Management System Certification
△ ISO14001 Environmental Management System Certificate
△ CE Quality-Assurance System for Manufacturer of Materials Acc. to Directive 97/23/EC

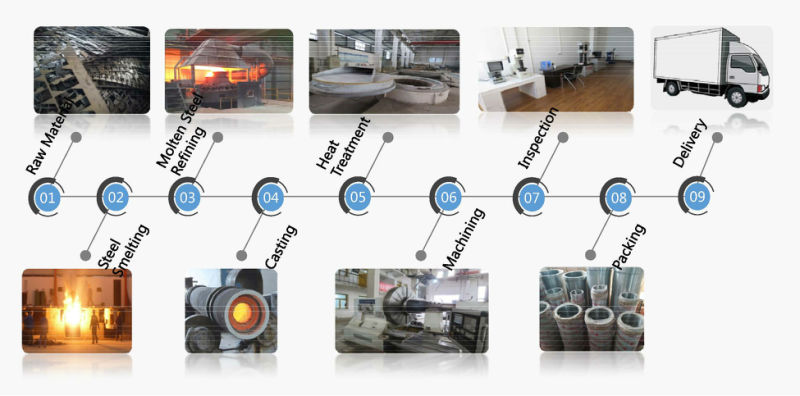

Main Process:
AOD Refining:
The Argon Oxygen Decarburization(AOD) process for refining stainless steel and specialty alloy. Compare to intermediate frequency furnace, its superiorities are:
△ Decarbonize, desulfurize ,degassing and eliminate nonmetallic inclusion
△ High purity molten steel
△ Better corrosion resistance and higher mechanical properties
Centrifugal Casting:
This procedure is ideal for all rotationally symmetrical Components. The refining molten steel is poured into the mold with high speed rotation and then centrifugally thrown towards the inside mold wall, where it solidifies after cooling.
△ High purity: Centrifugal force forces all impurities and gas inclusions towards the inner surface, which will be machined away, leaving behind a pure material.
△ High mechanical properties: directional solidification of the casting with huge centrifugal force clearly improve the mechanical properties which even is comparable with those of forged ones.
△ Excellent wear resistance: Thanks to its' highly dense and directed structure.
△ Without shrinkage holes and inner cracks
△ Excellent dynamic balance performance: Thanks to its' uniform structure

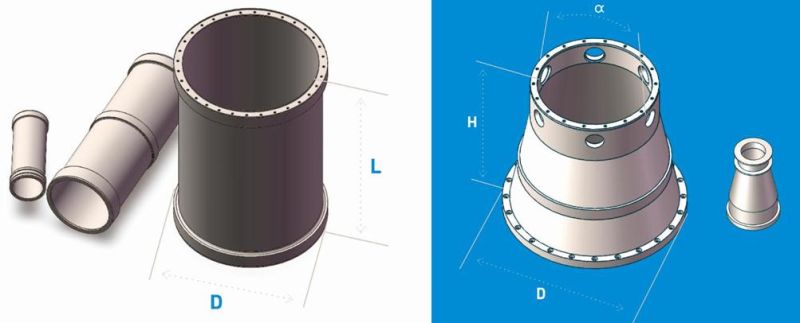

Structure:
Parameter:
Parameter | ||
Name | Cylinder Bowl | Conical Bowl |
Diameter | 200≤ D ≤1200mm | |
Length/ Height | 700≤ L ≤2500mm | 450≤ L ≤1400mm |
Weight | 90kg - 1800kg | 90kg - 800kg |
Material | Austenitic: 1.4308/ 1.4306/ 1.4408/ 1.4409/ 1.4539 | |
Duplex: 1.4362/ 1.4470/ 1.4469 | ||
Martensitic: 1.4540 | ||
Hastelloy: 9.4602 | ||
Delivery Status | Rough machining/ Semi-finish/ Finish |
