Characteristc:

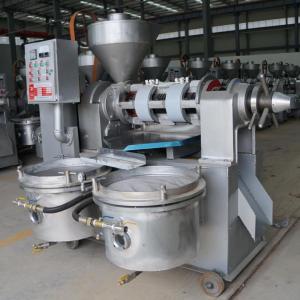

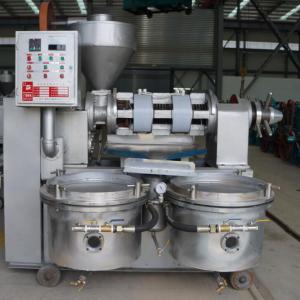

The automatic screw oil press machine YZYX130WZ has replaced the tradictional way that the machine has to be preheated the squeeze chest, loop and the spiral before squeezing. By this way, user can reduce the working time, waste of power and machine consumption. Also, it combines 2 tank vacuum filter to achieve oil-residue separation.
Advantages:
1. Healthy! Physical squeezing craft maximally keeps the nutrients such as the protein, fatty acids and minerals, etc. No chemical substances left.
2. High working efficiency! The spiral squeezing structure can achieve high oil output, thus the oil content of the residue cake is low. And only need squeeze the oil plants by one time when use hot press.
3. Long durability! All the parts are made of the most suitable material and treated with refined crafts, such as cemented quenching and tempering to increase the hardness and toughness, consequently the durability.
4. Cost-effective! The wearing parts on the machine such as the squeeze loop, squeeze spiral and squeeze bar are designed to be dismountable. When they are out of service period, users only need to replace them and no need to displace the whole machine.
Applicable oil plants seeds
2 step squeezing model, suitable for make oil from sunflower seeds, rapeseeds. Soybean, sesame seeds, flaxseed, palm kernel, coconut, camellia seeds and peanut, etc.
Quality Standard
1. Conform to JB/T9793· 1-1999 of the People's Republic of China.
2. ISO9001: 2008 and BV certified.
After-Sale Service
1. We supply spare all year around.
2. We supply technical solutions and helps for buyers at any time.
3. We have professional team, help uses design and plan the oil refinery's construction.
Packaging & Delivery
Packaging Detail: Fumigated wooden box packing or as per customer's requests.
Delivery Detail: 10-20 day after order confirm
The automatic screw oil press machine YZYX130WZ has replaced the tradictional way that the machine has to be preheated the squeeze chest, loop and the spiral before squeezing. By this way, user can reduce the working time, waste of power and machine consumption. Also, it combines 2 tank vacuum filter to achieve oil-residue separation.
Advantages:
1. Healthy! Physical squeezing craft maximally keeps the nutrients such as the protein, fatty acids and minerals, etc. No chemical substances left.
2. High working efficiency! The spiral squeezing structure can achieve high oil output, thus the oil content of the residue cake is low. And only need squeeze the oil plants by one time when use hot press.
3. Long durability! All the parts are made of the most suitable material and treated with refined crafts, such as cemented quenching and tempering to increase the hardness and toughness, consequently the durability.
4. Cost-effective! The wearing parts on the machine such as the squeeze loop, squeeze spiral and squeeze bar are designed to be dismountable. When they are out of service period, users only need to replace them and no need to displace the whole machine.
Applicable oil plants seeds
2 step squeezing model, suitable for make oil from sunflower seeds, rapeseeds. Soybean, sesame seeds, flaxseed, palm kernel, coconut, camellia seeds and peanut, etc.
Quality Standard
1. Conform to JB/T9793· 1-1999 of the People's Republic of China.
2. ISO9001: 2008 and BV certified.
After-Sale Service
1. We supply spare all year around.
2. We supply technical solutions and helps for buyers at any time.
3. We have professional team, help uses design and plan the oil refinery's construction.
Packaging & Delivery
Packaging Detail: Fumigated wooden box packing or as per customer's requests.
Delivery Detail: 10-20 day after order confirm
Technique features | |
Product Name | Automatic temperature control combined oil press |
Model | YZYX130WZ |
Processing capacity (t/24h) | 8-10 |
Oil content of dry cakes (%) | ≤8 |
Main electromotor power (KW) | 15 |
Pump electromotor power ( KW ) | 1.5 |
Temperature control power ( KW ) | 3.6 |
Measurement (mm) | 2005×1610×2010 |
Spiral axes rotate speed (r/min) | 30-40 |
Weight (KG) | 1180 |
