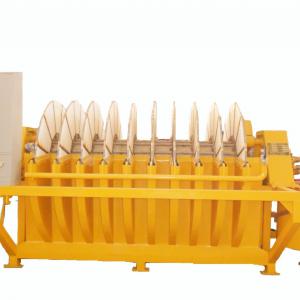

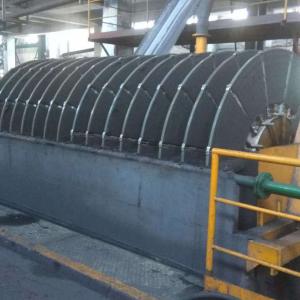

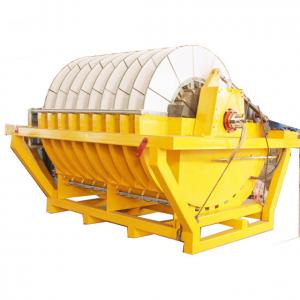

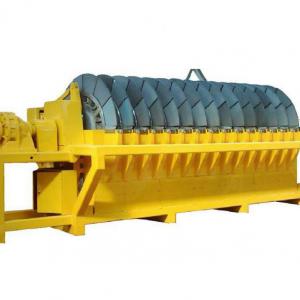

Vacuum Ceramic Filter is a new type of Solid-liquid Separation machine which is featured in energy-saving, high efficiency, low production cost, high automation level, smooth
operation, low power consumption, low moisture of filter cake, low suspended solid and appears
in the 1980s. It's extensively used for solidliquid separation in such
industries as ore beneficiation, metallurgy, petro chemicals, paper making, coal, environmental
protection and so on.
| No. | Model | Filter Area | Capacity | Weight | Rotator System | Agitating System | Vacuum System | Filtrate discharge System | Backwashing System |
| 1 | P1/1-C | 1m2 | 5KW | 1100 KG | 0.75kw | 0.55kw | 0.81kw | 2.2kw | 0.389kw |
| 2 | P4/2-C | 4 | 9KW | 3100 KG | 1.5kw | 1.1kw | 1.45kw | 3kw | 1.709kw |
| 3 | P8/4-C | 8 | 11.5KW | 3700 KG | 1.5kw | 1.5kw | 1.45kw | 3kw | 3.61kw |
| 4 | P12/6-C | 12 | 13KW | 4200 KG | 1.5kw | 1.5kw | 1.45kw | 3kw | 5.29kw |
| 5 | P15/5-C | 15 | 15KW | 5000 KG | 2.2kw | 3kw | 2.35kw | 3kw | 4.45kw |
| 6 | P21/7-C | 21 | 19.5KW | 6000 KG | 2.2kw | 4kw | 4kw | 3kw | 6.13kw |
| 7 | P30/10-C | 30 | 26.5KW | 7000 KG | 2.2kw | 4kw | 4kw | 7.5kw | 8.65kw |
| 8 | P45/15-C | 38KW | 14000 KG | 3kw | 5.5kw | 5.5kw | 11kw | 12.97kw | |
| 9 | P60/15-C | 60 | 45KW | 16000 KG | 4kw | 7.5kw | 7.5kw | 11kw | 14.77kw |
| 10 | P80/16-C | 80 | 50KW | 18000 KG | 4kw | 7.5kw | 11kw | 11kw | 15.86kw |
| 11 | P100/20-C | 100 | 59KW | 21000 KG | 5.5kw | 7.5kw | 11kw | 15kw | 19.7kw |
| 12 | P120/20-C | 120 | 68.5KW | 26000KG | 5.5kw | 11kw | 15kw | 15kw | 22kw |
1, To facilitate equipment management. Through the transformation of frequency control system, a slurry pump can timely maintenance and maintenance equipment, prolong the service life; on the other hand can strictly abide by the provisions of the management and use of electricity, the implementation of rules and regulations, to ensure the safety of uav.
2, Improve operating efficiency. The frequency control system after the transformation, not because of the emergence of slurry pump failure caused the whole process down, or even stop, avoid unnecessary economic loss, greatly improving the whole company's operating efficiency, for the company to win greater interest.
