spray dryer names:
Spray dryer is also called spray drying machine; spray dryer is used for small industrial production purpose or for doing experiment, for lab; big type spray dryer is for mass industrial production of milk powder, protein, blood, chemical, herbal extract, etc
spray dryer Description

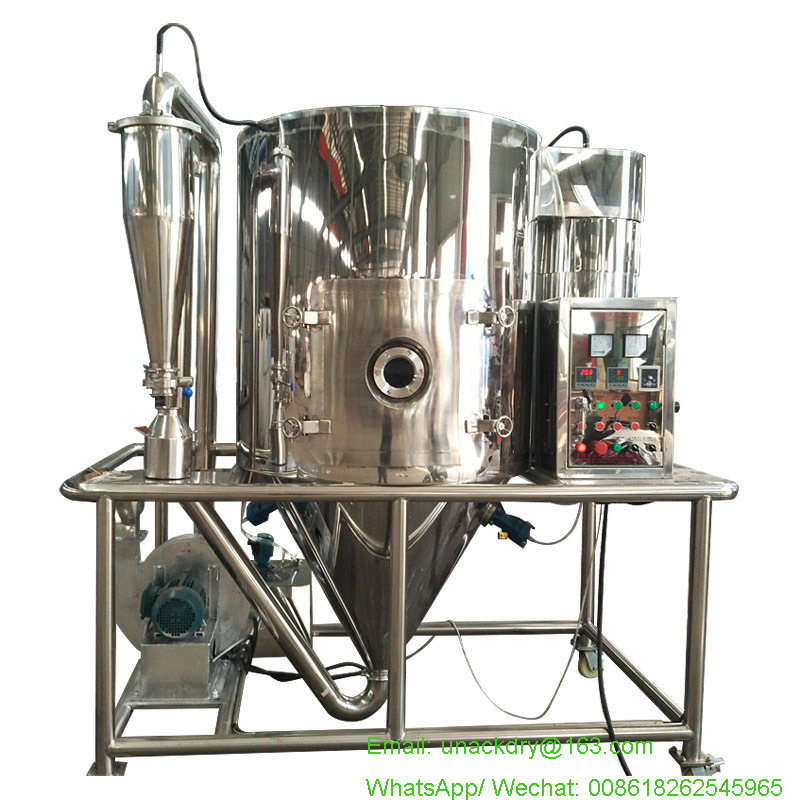

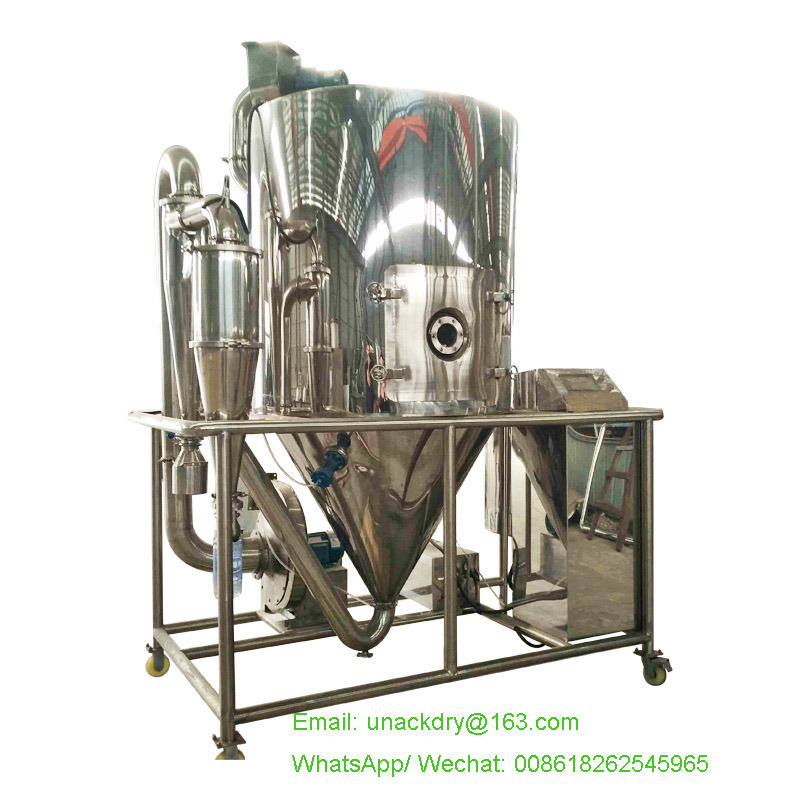

LPG high-speed centrifugal Spray Dryer is applicable for the emulsion, suspension, paste and liquid solution. In polymers and resins, fuels, paints, ceramics, glass type, descaling agent, insecticide, carbohydrates, dairy products, detergents and surfactants, fertilizer,organic compounds and inorganic compounds of dry material ,the performance is particularly remarkable.This drier can be widely used into pharmaceutical, chemical , foodstuff and so on industries/field
Principle spray dryer
Air flow through the filter, heater and dryer into the top of the divider, a spiral-shaped hot air into the dryer uniform. Yecao feed from the filter is expected to pump at the top of the dryer centrifugal atomizer to spray liquid into very small droplets of mist, feed and hot air flow and contacts, the rapid evaporation of water, in a very A short period of time dry-finished and finished products from drying tower at the bottom and from the cyclone, exhaust emission from the fan
Features spray dryer
Dry faster, the general time is only 5-15 seconds, with instantaneous drying characteristics.
Materials take a very short period of time to complete the drying process, adapted to the dry thermosensitive materials, materials to maintain color, smell and taste.
FAQ
This spray drier is widely used in chemical industry,pharmaceutical industry,foodstuff industry and so on.
1.material name
2.content of solid; content of moisture(%)
3.processing capacity; evaporation capacity?(kgs/hour; litre/ hour)
4.Max.temperature the material can bear
5.heating source. Do you need Electric heating compensation to improve heating temperature?
Spray dryer TECHNICAL PARAMETERS spray dryer

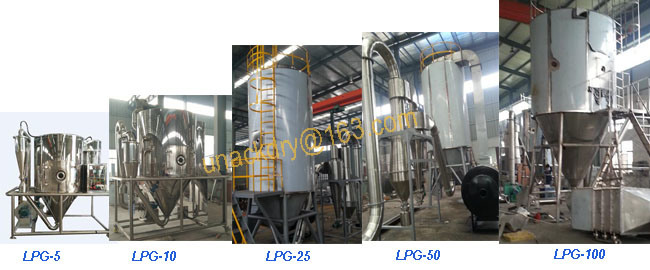

spray dryer Parameter | LPG -5 | LPG -10 | LPG -15 | LPG -20 | LPG -25 | LPG -50 | LPG -100 | LPG -150 | LPG -200 | LPG -500 | LPG -800 | LPG -1000 | LPG -2000 | LPG -3000 | LPG -4500 | LPG -6500 |
Inlet temperature(°C) | 140-350automaticallycontrolled | |||||||||||||||
Outlet temperature(°C) | 80-90 | |||||||||||||||
Water evaporation capacity(kg/h) | 5 | 10 | 15 | 20 | 25 | 50 | 100 | 150 | 200 | 500 | 800 | 1000 | 200 | 3000 | 4500 | 6500 |
Diameter of atomizing tray (rpm) | 50 | 80 | 80 | 120 | 150 | 180-210 | Decidedin accordance witn the requirementsof processs | |||||||||
Max Electric heating power(kw) | 12 | 24 | 36 | 45 | 46 | 63 | 81 | 99 | ||||||||
Dried powder restoring rate(%) | ≥95 | |||||||||||||||
Length of convered area (m) | 1.6 | 2.7 | 3 | 3.5 | 4 | 4.5 | 5.2 | 7 | 7.5 | 12.5 | 13.5 | 14.5 | Decided in accordance the flow chart, | |||
Width of convered area (m) | 1.1 | 1.5 | 1.8 | 2 | 2.7 | 2.8 | 3.5 | 5.5 | 6 | 8 | 12 | 14 | Condition of filed and requirements |
