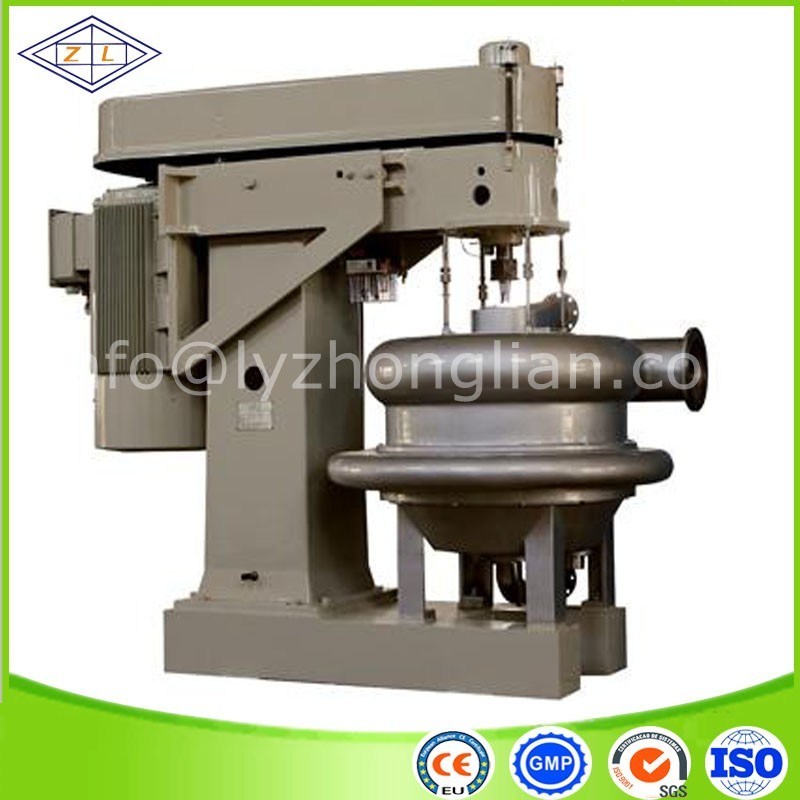

vitamin extraction and reconvery centrifuge
Feature:
1) It`s capacity is about 500-10000L/h.
2) It is the automatic discharging machine.
3) It can be settled at the continuous discharge or intermittent discharge.
4) It is self-cleaning system.
5) It equip with control cabinet.
6) All the part connecting with material is stainless steel.
Feature:
1) It`s capacity is about 500-10000L/h.
2) It is the automatic discharging machine.
3) It can be settled at the continuous discharge or intermittent discharge.
4) It is self-cleaning system.
5) It equip with control cabinet.
6) All the part connecting with material is stainless steel.
Working principle:
The bowl will be driven by the main motor by the friction clutch and screw gear pair to rotate highly around the main shaft. Stock liquid flows from the center charging inlet on the top to the bottom through the charging pipe. And then passes through disc seats to the bowl's space. The bigger gravity solid phase particles in the stock liquid is settled down to the bowl's wall by the centrifugal force and then under the control of the side bowl drained out of the residue outlet but liquid phase is fully settled down to the bowl wall by the centrifugal force field and then under the control of the side bowl it is drained out of the residue outlet but liquid phase is fully settled down to the center along the discs to drain out by the centripetal pump.
Application:
1. Beverage: Wine, tea, coffee and beer.
2. Juices: Vegetable juices, various kinds of fruit juices
3. Vegetable oil: Coconut oil, colza oil, cotton seed oil, core oil, palm oil, soybean oil, peanut oil, rice oil, sesame oil, safflower oil
4. Animal oil: Fish oil and other animal oil.
5. Mineral oil: Fuel oil, diesel oil, lubrication oil, transformer oil and waste oils.
6. Dairy Milk: Milk degrease
7. Fermented liquids: Bacterial or fungi mass after fermentation
The bowl will be driven by the main motor by the friction clutch and screw gear pair to rotate highly around the main shaft. Stock liquid flows from the center charging inlet on the top to the bottom through the charging pipe. And then passes through disc seats to the bowl's space. The bigger gravity solid phase particles in the stock liquid is settled down to the bowl's wall by the centrifugal force and then under the control of the side bowl drained out of the residue outlet but liquid phase is fully settled down to the bowl wall by the centrifugal force field and then under the control of the side bowl it is drained out of the residue outlet but liquid phase is fully settled down to the center along the discs to drain out by the centripetal pump.
Application:
1. Beverage: Wine, tea, coffee and beer.
2. Juices: Vegetable juices, various kinds of fruit juices
3. Vegetable oil: Coconut oil, colza oil, cotton seed oil, core oil, palm oil, soybean oil, peanut oil, rice oil, sesame oil, safflower oil
4. Animal oil: Fish oil and other animal oil.
5. Mineral oil: Fuel oil, diesel oil, lubrication oil, transformer oil and waste oils.
6. Dairy Milk: Milk degrease
7. Fermented liquids: Bacterial or fungi mass after fermentation
Technical Parameters
| Model | Capacity (Hour/Liter) | Bowl Speed(rpm) | Power (kw) | Weight (Kg) | Overall size (L*W*H)(mm) |
| DHC/DHY250 | 1000 | 8800 | 2.2 | 280 | 800*600*900 |
| DHC/DHY250(High speed) | 2000 | 10200 | 3 | 280 | 800*600*900 |
| DHC/DHY280 | 2000 | 7000 | 5.5 | 480 | 990*930*980 |
| DHC/DHY330 | 2500 | 6080 | 7.5 | 680 | 1120*910*1225 |
| DHC/DHY330(high speed) | 3000 | 10200 | 7.5 | 680 | 1120*910*1225 |
| DHC/DHY420 | 3000 | 7038 | 7.5 | 1080 | 1500 *1100 *1550 |
| DHC/DHY450 | 5000 | 5500 | 15 | 1180 | 1200*1150*1420 |
| DHC/DHY510 | 5000-8000 | 5300 | 18.5 | 1380 | 1250*1200*1500 |
| DHC/DHY550 | 8000-15000 | 5100 | 22 | 1680 | 1300*1300*1650 |
We can also supply you complete production line, details please contact with:
Lily Wang.
Whatsupp is +8618624192286.
Company introduction:
Liaoyang Zhonglian Pharmaceutical Machinery Co.,Ltd. ,belongs to ZHONGLIAN Group. We are the professional manufacturer of pharmaceutical equipment and food equipment, which including separating equipment, filling equipment, packing equipment, dryer and relevant full production line equipment.
Group was founded in 2001, the headquarters is located in Liaoyang city, Liaoning province. The factory covers an area of ten thousand square meters, production workshop seven thousand square meters. The factory own a professional r&d team and after-sales service team. In the same industry take the lead through the ISO9001:2008 international quality system certification, and get the certification of SGS, CE, GMP and so on.
At present, our products have been exported to the United States, Mexico, New Zealand, SouthKorea,Australia,Turkey,Japan,Thailand,Malaysia,Singapore,Indonesia,Canada,Kenya,Seychelles,Italy,Iran,Venezuela,Peru,India,Russia,Denmark,Spain,Finland,Greece,Colombia,and so on more than 30 countries. Our aim is saving your valuable time and cost, providing you with the workable solution!
