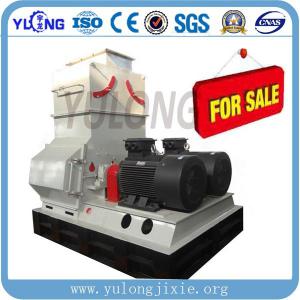

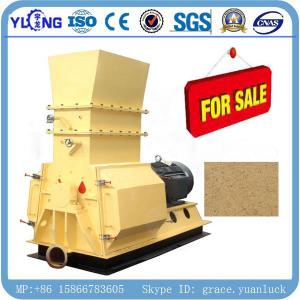

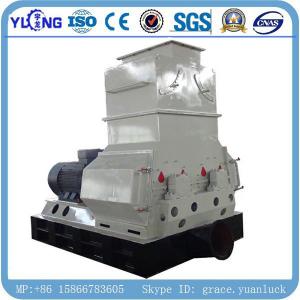

Wood hammer mill/ feed hammer mill/ straw hammer mill/ wood chips hammer mill
GXP Series Hammer Mill can smash many kinds of raw materials, such as wood chips, rice husk, agricultural stalk pieces, shell or PVC. They are also very good at corn, sorghum, grain, legumes, broken cake pellet and other materials.
The series hammer mill adopts steel plate jointing structure, motor and rotor are installed on the same base, adopts dowel pin coupling transmission, balance the rotor check, can work be positive and negative; Operation door interlocked safety device to ensure that the operation door can not open. Feed-in orifice is in the top of the crusher, can match various forms of feeder institutions, hammer arrange for symmetry.
Reasonable structure, durable, safe, reliable; Easy to operate and install; Micro-vibration and high productivity.
Wood hammer mill is also very efficiency machine with tiny shakiness.
Wood Hammer mill crusher for wood chips/shavings, rice husk, stalk or other farm waste.

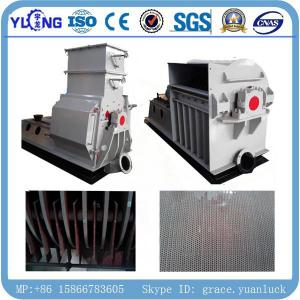

Hammers, sieve & axle are made by CNC.
Contact me
Grace Yuan
TP: 86-15866783605
| Model | GXP65*27 | GXP65*55 | GXP65*75 | GXP65*100 | GXP130*55 |
| Diameter of rotor(mm) | 650 | 650 | 650 | 1080 | 1080 |
| Width of studio(mm) | 275 | 405 | 605 | 405 | 605 |
| Rotate speed (r/min) | 2950 | 2950 | 2950 | 1480 | 1480 |
| Spec of screener(mm) | 1340×270 | 1340×400 | 1340×600 | 2730×400 | 2730×600 |
| Linear Velocity(m/s) | 100 | 100 | 100 | 84 | 84 |
| Spec of hammer(mm) | 180×50×5 | 180×50×5 | 180×50×5 | 180×50×5 | 180×50×5 |
| Qty of hammer(pie) | 24 | 48 | 72 | 72 | 160 |
| Related power(kw) | 22-37 | 37-55 | 55-75 | 90-110 | 160 |
| Output(t/h) | 0.5-1 | 1-2 | 1.5-2.5 | 2-3.5 | 3-5 |
