Vertical pin mill is a modern mill with high efficiency. It is a pivotal equipment widely used in corn starch processing industry.This equipment excels for its compact structure, reliable operation, fine grounding effect and big treating capability etc.

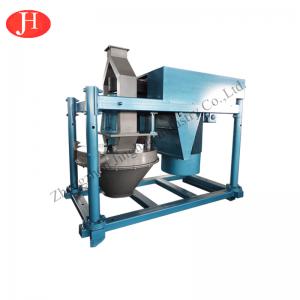

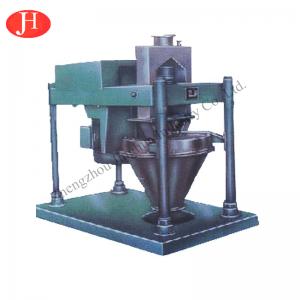

Product show
Specification of corn pin mill
Main parameter | Model | |
685 | 1000 | |
Diameter of rotary plate (mm) | 685 | 1015 |
Rotary speed of rotary plate (r/min) | 3750 | 3100 |
Line speed of rotary plate (m/s) | 135.5 | 164.8 |
Content of dry material fed into mill (corn pulp) | 210-340g/L | 210-340g/L |
Content of free starch fed into mill (corn pulp) | ≤10% | ≤10% |
Capacity (marketable corn) t/h | 5~8 t/h | 12~15 t/h |
Content of linking starch in fibre reside after grinding | <= 15% | <= 15% |
Rate of coarse and fine particle in pulp after grinding | 2.5:1 | 2.5:1 |
Noise (with water) | <=90dba | <= 106dba |
Main motor power | 75kw | 220kw |
Lubrication oil pressure(MPa) | 0.05~0.1Mpa | 0.1~0.15 Mpa |
Power of oil pump | 1.1kw | 1.1kw |
Over all dimension L×W×H (mm) | 1630×830×1600 | 2870×1880×2430 |
Company Information
Zhengzhou Jinghua Industry Co.,Ltd. is a specialized starch engineering technology company that is engaged in a variety of starch engineering design , equipment manufacture ,engineering installation and commissioning , technical staff training and so on .
Depending on the unique advantage and strong strength of Henan University of Technology, ZZJH produces machine making all kinds of starch . Such as potato starch making machine , sweet potato starch machine , cassava starch machine , garri machine , corn starch machine .
Our customers
Our service
Pre-sale service
1. Introducing detail features and application of the products to customer.
2. Selecting economical and practical machines for customer.
3. Providing operation data of the related machine.
4. Providing means of trial performance for customer.
5. Flow chart and factory designing layout .
Sales service
1.Recommending engineering conditions required for installation of the machine.
2. Communicating the manufacturing progress of machines with customer in time.
3. Project planning and design services;
After-sales service
1. Training of equipment maintenance and operating personally.
2.Installation and commissioning of equipment until everything is functional.
3. One year warranty and Providing long-term maintenance service and spare parts.
4. Giving technical support to customer for developing new product.
5. Engineers available to service machinery overseas.
6. Provide English Version of Installation/Operation/Service/Maintenance Manual.
