Automatic oil press machine

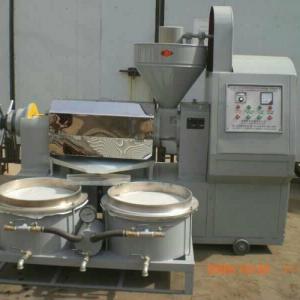

The main parts of Palm /Peanut/ Cottonseed/ Mustard seed/ Rapeseed Automatic Screw Oil Press Machine,Oil Mill, Oil extruder machine
1. Squeezing head
2. Squeezing bars
3. Squeezing screw
4. Squeezing bolt
5. Heating ring
6. Electric control system
7. Vacuum oil filter system
The advantage of the Palm /Peanut/ Cottonseed/ Mustard seed/ Rapeseed Automatic Screw Oil Press, Oil Mill, Oil extruder machine:
1. Using vacuum filter, it is able to simply filter the crude oil after pressing.
2. Saving labor: One or tow people are able to make production.
3. Widely used: Such as soybean, sunflower seeds, sesame, rape seeds, flax, camellia, cashew, palm and walnuts and all the oil content crops.
4. Different oil materials have different oil yielding.
5. Low investment, get more profit.
6. Pure oil quality: Meet the standard of health quarantin.
7. Small land-using: 10-20 square meters workshop can meet the need of productin.
8. The oil left in cake is less than 6%.
Technical Specifications:
Introduction:
The machines can be used for various materials, such as peanut, rape, cotton seeds, sesame, olive, sunflower seeds, coconut and rape seeds, etc. They are suitable for medium and small sized workshop and farmers.
We guarantees for repair, replacement or compensation of fault products according to national policy.
The main parts of Palm /Peanut/ Cottonseed/ Mustard seed/ Rapeseed Automatic Screw Oil Press Machine,Oil Mill, Oil extruder machine
1. Squeezing head
2. Squeezing bars
3. Squeezing screw
4. Squeezing bolt
5. Heating ring
6. Electric control system
7. Vacuum oil filter system
The advantage of the Palm /Peanut/ Cottonseed/ Mustard seed/ Rapeseed Automatic Screw Oil Press, Oil Mill, Oil extruder machine:
1. Using vacuum filter, it is able to simply filter the crude oil after pressing.
2. Saving labor: One or tow people are able to make production.
3. Widely used: Such as soybean, sunflower seeds, sesame, rape seeds, flax, camellia, cashew, palm and walnuts and all the oil content crops.
4. Different oil materials have different oil yielding.
5. Low investment, get more profit.
6. Pure oil quality: Meet the standard of health quarantin.
7. Small land-using: 10-20 square meters workshop can meet the need of productin.
8. The oil left in cake is less than 6%.
Technical Specifications:
| Model | Capacity (kg/h) | Power (kw) | Net weight (kgs) | Gross weight (kgs) | Size (mm) |
| BG-68 | 40 | 5.5 | 130 | 150 | 920x390x750 |
| BG-80 | 80-120 | 5.5 | 350 | 370 | 1540x510x680 |
| BG-95 | 150-200 | 7.5 | 480 | 550 | 1920x550x765 |
| BG-100 | 150-220 | 7.5 | 480 | 550 | 1920x550x765 |
| BG-105 | 180-230 | 11 | 510 | 580 | 2140x550x765 |
| BG-120 | 200-250 | 15 | 600 | 680 | 2100x610x785 |
| BG-130 | 300-500 | 18.5 | 730 | 800 | 2240x610x815 |
| BG-165 | 600-800 | 22-30 | 1500 | 1600 | 2290x750x1020 880x750x760 |
| BG-80A | 80-120 | 1.5-5.5 | 650 | 700 | 1480x630x1570 |
| BG-95A | 150-200 | 1.5-7.5 | 850 | 900 | 2250X890X1820 |
| BG-105A | 180-230 | 11 | 950 | 1000 | 2280x890x1770 |
| BG-120A | 200-250 | 1.5-11 | 1100 | 1200 | 2280x890x1770 |
| BG-130A | 300-500 | 1.5-15 | 1400 | 1500 | 2350x840x1850 |
The machines can be used for various materials, such as peanut, rape, cotton seeds, sesame, olive, sunflower seeds, coconut and rape seeds, etc. They are suitable for medium and small sized workshop and farmers.
We guarantees for repair, replacement or compensation of fault products according to national policy.
