Product Description
1. Product Application

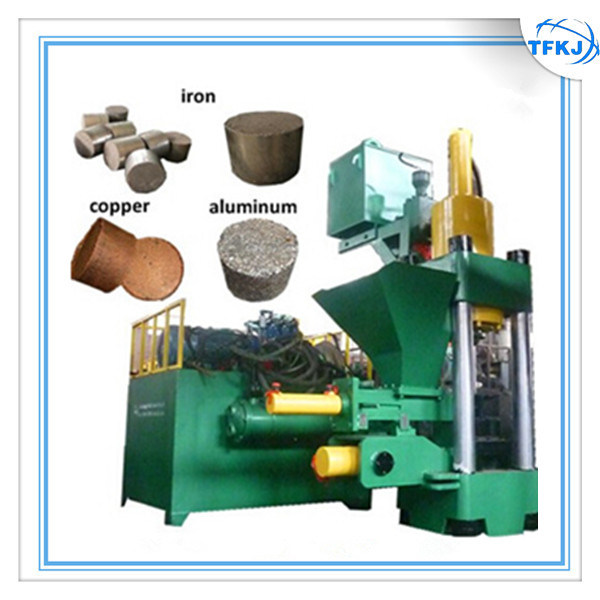

Item: Y83-1800 screw iron aluminum briquette press
Y83 series of metal briquette machine is applied to compress metal sawdust(steel,cast iron,aluminum & copper) into cylindrical briquets of high density to reduce burning loss in smelting,to make recycling & smelting easy & convenient.Cast iron sawdust,after pressed into briquets,can subsititue pig iron as raw materials.
2. Technical Parameters
3. Main Features
1) Hydraulic drive,operation stable,no vibration,safe & reliable.
2) Pressing force ranges from 180 to 630 tons.
3) PLC control adopted;user can choose semi or fully automatic operation.
4) Customized chamber and block size as per different scrap material.
5) High density reaches 5.5T/M3.
Detailed Machine Parts:
1. Name: Electric cabinet
Brand: Mitsubishi
PLC control system
easy to operate
Global brand, good quality to use
2. Name: Water Cooler
every machine will equip a water cooler.
It can reduce the oil temperature, avoid too high oil temperature.
3. Name: Conveyor
Some customers will ask for the conveyor
We will equip one which is suitable for the machine.
It can help increase the capacity and easy to add material.
4. Name: Oil collector
If you want to collect liquid from the scrap, we can equip the oil collector for you.
It is good for the environment.
Successful Cases
Youtube Link:
(welcome to visit our youtube channel)
https://www.youtube.com/channel/UCbqotltwCo4Qqsdt6c34RVQ
Packing & Delivery
Company Information
Our Company
Tianfu Technology was established in 2008 with strong designing team and professional team.
We can provide you professional advice and quality machines.
Our Team
Quality First, Service Best!
We are young, passionate, united, and serve our customers like family.
Our Factory
Lifelong maintenance
Technicians available to abroad,
Complete parts & tools &manual book sent with machine.
Certifications
ISO, CE, SGS, PATENTS FOR EVERY MACHINE
FAQ
1) Are you a factory or trade company?
We are manufacturer with own factory for 15 years, export proportion 70~80%.
2) How can i trust your company?
a. With professional design and sales team, we can serve you the perfect solution with lowest cost.
b. Assessed by third party, national patents for all equipment, also CE, ISO.
c. Agents in RU, UKR,MYS,PH; Users around the world.
d. Welcome to inspect anytime. We are near to Shanghai airport.
e. About the machine, we do much better on:
Wear plates, seals, structure design, pressure head.
3) How about the test running & installation?
Before delivery, we finish the test over 3times.
If you take integral design, no need to installation at all. If parted design, we can send our technicians to your place if necessary.
4) Any warranty?
Under the proper usage, one year for whole machine except the wear parts.
5) Is your price competitive?
Only good quality machine we supply. Surely we will give you best factory price based on superior product and service.
Contact Detail:
Contact Person: Landry Zhou
Cell: 0086-15961663285
Tel: 0086-510-86010821
Welcome to contact us at any time
We will reply you within 24 hours
1. Product Application
Item: Y83-1800 screw iron aluminum briquette press
Y83 series of metal briquette machine is applied to compress metal sawdust(steel,cast iron,aluminum & copper) into cylindrical briquets of high density to reduce burning loss in smelting,to make recycling & smelting easy & convenient.Cast iron sawdust,after pressed into briquets,can subsititue pig iron as raw materials.
2. Technical Parameters
| Model | Main cyl. force (Ton) | Production efficiency (pcs/min) | Block size (mm) | Capacity (kg/hour) | Motor (kw) |
| Y83-1800 | 180 | 3.5 | 85*(50-70) | 300-400 | 15 |
| Y83-2500 | 250 | 4.5 | (90-100)*(60-80) | 500-700 | 22 |
| Y83-3150 | 315 | 4.5 | (90-110)*(60-100) | 700-900 | 30 |
| Y83-4000 | 400 | 5 | (100-130)*(80-100) | 1000-1100 | 30 |
| Y83-5000 | 500 | 4-5 | (110-140)*(80-120) | 1200-1500 | 45 |
| Y83-6300 | 630 | 4-5 | (130-180)*(80-120) | 1400-1800 | 45 |
3. Main Features
1) Hydraulic drive,operation stable,no vibration,safe & reliable.
2) Pressing force ranges from 180 to 630 tons.
3) PLC control adopted;user can choose semi or fully automatic operation.
4) Customized chamber and block size as per different scrap material.
5) High density reaches 5.5T/M3.
Detailed Machine Parts:
1. Name: Electric cabinet
Brand: Mitsubishi
PLC control system
easy to operate
Global brand, good quality to use
2. Name: Water Cooler
every machine will equip a water cooler.
It can reduce the oil temperature, avoid too high oil temperature.
3. Name: Conveyor
Some customers will ask for the conveyor
We will equip one which is suitable for the machine.
It can help increase the capacity and easy to add material.
4. Name: Oil collector
If you want to collect liquid from the scrap, we can equip the oil collector for you.
It is good for the environment.
Successful Cases
Youtube Link:
(welcome to visit our youtube channel)
https://www.youtube.com/channel/UCbqotltwCo4Qqsdt6c34RVQ
Packing & Delivery
Company Information
Our Company
Tianfu Technology was established in 2008 with strong designing team and professional team.
We can provide you professional advice and quality machines.
Our Team
Quality First, Service Best!
We are young, passionate, united, and serve our customers like family.
Our Factory
Lifelong maintenance
Technicians available to abroad,
Complete parts & tools &manual book sent with machine.
Certifications
ISO, CE, SGS, PATENTS FOR EVERY MACHINE
FAQ
1) Are you a factory or trade company?
We are manufacturer with own factory for 15 years, export proportion 70~80%.
2) How can i trust your company?
a. With professional design and sales team, we can serve you the perfect solution with lowest cost.
b. Assessed by third party, national patents for all equipment, also CE, ISO.
c. Agents in RU, UKR,MYS,PH; Users around the world.
d. Welcome to inspect anytime. We are near to Shanghai airport.
e. About the machine, we do much better on:
Wear plates, seals, structure design, pressure head.
3) How about the test running & installation?
Before delivery, we finish the test over 3times.
If you take integral design, no need to installation at all. If parted design, we can send our technicians to your place if necessary.
4) Any warranty?
Under the proper usage, one year for whole machine except the wear parts.
5) Is your price competitive?
Only good quality machine we supply. Surely we will give you best factory price based on superior product and service.
Contact Detail:
Contact Person: Landry Zhou
Cell: 0086-15961663285
Tel: 0086-510-86010821
Welcome to contact us at any time
We will reply you within 24 hours
