Competitive Price Palm Oil Mill Screw Press with Stable Performance

PRIMARY PARAMETERS

Model NO.

6YL-120

Processing Method

Compression

Packaging

Plastic Container

Warranty

12 Months

Trademark

Sinoder

Transport Package

Wood Box

Specification

2000*1300*1850

Origin

Henan

HS Code

1501000000

DETAIL DESCRIPTION

Competitive Price Palm Oil Mill Screw Press with Stable Performance
Brief Introduction:
screw oil press machine can be widely used to more than 20 kinds of easy and difficult plant oilseeds, such as peanuts, soybeans, rapeseed, cottonseed, sesame, olives, sunflowers, coconut, cocoa, seeds and so on. During pressing, it can be entirely squeezed one-time except for some individual varieties.
Competitive Price Palm Oil Mill Screw Press with Stable Performance

Technical datas Of the oil press machine

Model	6YL-80	6YL-100	6YL-120	6YL-160
Dia.	φ 81mm	φ 101mm	φ 123mm	φ 160mm
Screw speed	47r/min	38r/min	35r/min	32r/min
Power	Motor	5.5kw	7.5kw	11kw	22kw
Vacuum pump	0.55kw	0.75kw	1.1kw	1.1kw
Heater	2.2kw	2.2kw	2.2kw	2.2kw
Capacity	80-100kg/h	150-200kg/h	250-300kg/h	500-600kg/h
Weight	880kg	1250kg	1500kg	1800kg
Size (mm)	1500×1200×1750	2000×1300×1850	2100×1300×1850	2300×1300×1950

the oil extraction rates of common oil crops

the oil yield of peanut sunflower seed argan avocado sesame palm walnut coconut olive, as following:

Materials	Yield efficiency (%)	Cake thickness (mm)
Rapeseed	33~42%	0.4~1mm
Tea seed	30~36%	0.8~1.5mm
Soybean	8~12%	0.6~0.8mm
Peanut	38~48%	0.3~0.6mm
Sesame	42~55%	0.4~0.6mm
Cotton seed	10~15%	0.4~0.6mm
Sunflower seed	45~50%	0.3~0.6mm

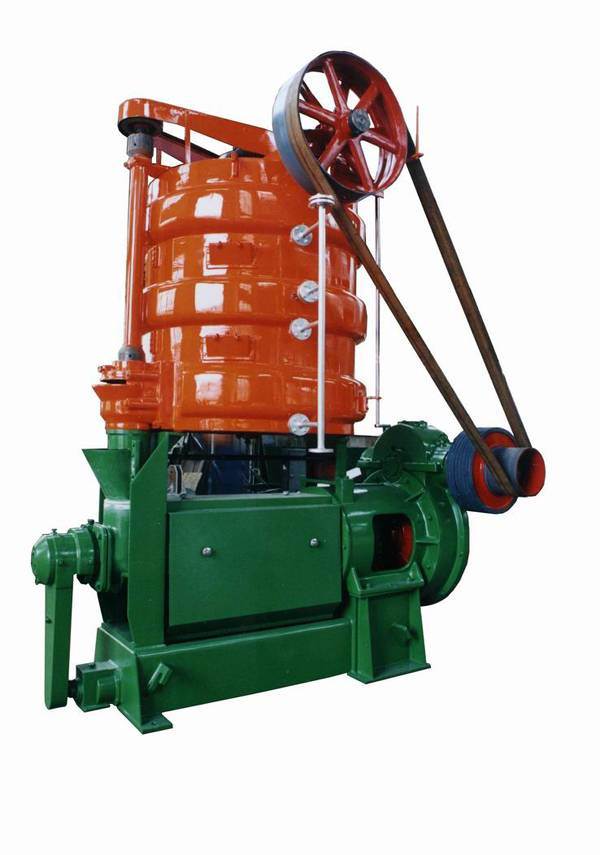

Industrial Screw Oil Expeller

Technical parameters

LYZX28 Low-temperature Cold Screw Oil Expeller

Technology data:
1. Motor Power: 45+11+1.5KW
2. Net weight: 9600KG
3. Dimension: 3783×3038×3050mm
4. Production Capacity: 40-60T/D
5. Oil content in cake: 15-19%

LYZX32 Low-temperature Cold Screw Oil Expeller
Technology data:
1. Motor Power: 90+7.5+1.5KW
2. Net weight: 12650KG
3. Dimension: 4832×2917×3236mm
4. Production Capacity: 80-100T/D(the low-temperature pressing of peanut kernel)
5. Oil content in cake: 15-19%

LYZX34 Low-temperature Cold Screw Oil Expeller
Technology data:
1. Motor Power: 160KW
2. Net weight: 14980KG
3. Dimension: 4935×1523×2664mm
4. Production Capacity: 150-180T/D(the low-temperature pressing of peanut kernel)
5. Oil content in cake: 11-15%

Small Scale Hydraulic Oil Press Machine

The hydraulic oil press machine has widely application,which is capable of processing a great number of seeds and nuts,such as cotton seeds,suflower seeds,grain seeds,hemp seeds,peanuts,soybean,corn germ,palm kernel etc more than 30 kinds had been tested.
Competitive Price Palm Oil Mill Screw Press with Stable Performance

Specification

Type	6YZ-230	6YZ-410	6YZ-460-1	6YZ-460-2	6YZ-460-3	6YZ-500
Working pressure	50Mpa	45Mpa	40Mpa	40Mpa	40Mpa	40Mpa
Pushing force of working	120 tons	120 tons	150 tons	210 tons	150 tons	300 tons
Inner diameter of pressing barrel	230mm	410mm	460mm	460mm	460mm	500mm
Working stroke of piston	500mm	500mm	500mm	500mm	700mm	700mm
Capacity /Average performance	45kg/h	80kg/h	110kg/h	110kg/h	150kg/h	200kg/h
Main motor	1.5kw	1.5kw	2.2 kw	3kw	3kw	4kw
Motor of heating	4kw	4kw	4kw	4kw	4kw	4kw
Oil cylinder of pre-pressing	10Mpa	10Mpa	10Mpa	10Mpa	10Mpa	10Mpa
weight	1300kg	1500kg	1800kg	1800kg	2300kg	2800kg

Our services:
1.Ensure every step of production with the strict test.
2.Help you choose the most suitable machine.
3 We provide customized products. we could add your company logo or change the material or enlarge the size of the machine to meet your requirements.
4.We also are able to make the voltage and frequency meets your standard.
5.Various shipping type. we could ship this automatic orange juicer by air, by sea and by train.
6.Good after-sale service. we will solve any problem which happens during your process of using, also we will help you to repaired the machine. we will send you

1	Cast iron machine base;
2	Special gear box structure make the rotating speed averagely;
3	Main parts of chamber through the processing of high-temperature tempering and low temperature quenching;
4	Cake thickness can be adjusted once the machine stop running;
5	Superior grade oil cake;
6	Compact structure, stable function, simple maintenance.

Cold Oil Press Machine

FAQ::
If you want to know more information , please contact us:
Tel: 0371 55933391 Fax: 0371 55919082
