1.What is the Oil Extraction Machine?
( 1). Products:
Our products are edible oil press machine, edible oil extraction machine with solvent and edible oil refining machine.
We can supply semi-continuous oil press equipment for2-30T/D and Continuity sets of oil equipment for 30-3000T/D.
By the customers requirement we can provide cooking oil press machine, cooking oil press machine, cooking oil extractor or cooking oil refinery only. Any part of this edible oil producing line can be provided by us.
( 2). Customers:
We have customers from all over the world like Uzbekistan, Kyrgyzstan, Kazakhstan,and Canada, Chile, Argentina,Ethiopia, India, Malaysia, Zambia, Nigeria, Russia , Turkey, More than 30 countries and areas.
( 3). Advantage:
1) Simple design, small volume and light weight, easy to handle and move.
2) Easy for operating, low labor intensity and high economical profit.
(4). Features:
1) It is easy for people to learn, understand, and operate because of its small size. Besides, it is no special requirements for people to operate.
2)It costs less various expenses with lower electricity consumption in use.
3) The machine is a hydraulic machine with big pressure, high oil yielding rate and pure oil Quality.
4)The machine adopts automatic control system, automatic preheating control and automatic pressure control of hydraulic system.
2.What kind of project suitable for the Oil Extraction Machine ?:
| Capacity | Raw material |
| 100kg/h screw oil press machine | sesame oil , groundnut oil , sunflower oil, rice bran oil, coconut oil |
| 200kg/h screw oil press machine | sesame oil , groundnut oil , sunflower oil, rice bran oil, coconut oil |
| 300kg/h screw oil press machine | sesame oil , groundnut oil , sunflower oil, rice bran oil, coconut oil |
| 500kg/h screw oil press machine | sesame oil , groundnut oil , sunflower oil, rice bran oil, coconut oil |
| 600kg/h screw oil press machine | sesame oil , groundnut oil , sunflower oil, rice bran oil, coconut oil |
| other capacity...... | other capacity...... |

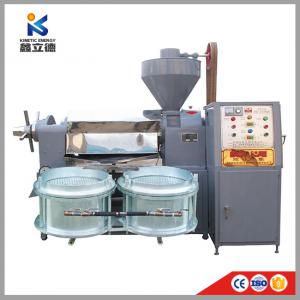

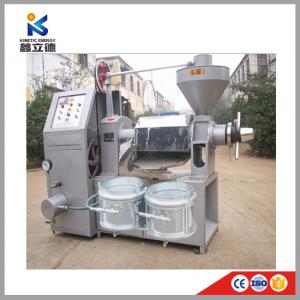

3.Detailed images:
Main Parts Of The Automatic Oil Press Machine
1.screw shaft
2.feeder
3.pressing cage
4.oil pan
5.squeezing bolt
6.vacuum oil filter system
7.electric control system
8.heating ring
Operate Processing Of the Oil Extraction Machine
1.stir-fring the seed
2.feed in the oil seed
3.pressing the seed in the pressing chest
4.oil drip on the oil pan from the squeezing bolt
5.then oil inflow the vacuum oil filter pan by the vacuum system
6.then pure oil come out of the filter
7.ready
Model | Capacity | Power | Electric machinery | Packing size(mm) | Gross weight and net weight(KG) |
| 6YL-68A oil press machine | 40-50Kg/h | 5.5KW | 380V/50HZ/Triple phase | 1720*900*1300 | 500/460 |
| 6YL-80A oil press machine | 80-150Kg/h | 5.5KW | 380V/50HZ/Triple phase | 2100*750*1500 | 600/550 |
| 6YL-95/100A oil press machine | 150-200Kg/h | 7.5KW | 380V/50HZ/Triple phase | 2100*900*1800 | 750/700 |
| 6YL-120A oil press machine | 200-300Kg/h | 11KW | 380V/50HZ/Triple phase | 2150*770*1800 | 950/900 |
| 6YL-130A oil press machine | 300-400Kg/h | 15KW | 380V/50HZ/Triple phase | 2300*900*1900 | 1000/920 |
| 6YL-160A oil press machine | 400-600Kg/h | 18.5KW | 380V/50HZ/Triple phase | 2450*900*1950 | 1100/1050 |
4.Packing and Delivery:
5.Our factory:
Wuhan KINETIC is an is a Professional and modern grain and oil machinery engineering equipment manufacturer integrating research, manufacturing and installation. We have obtained rich experience and practice in palm fruit oil machine, vegetable oil pretreatment, prepress,extraction, sophisticated technology and equipment designs etc, owing wide international market in more than 130 countries and regions.
With more than 30 years of experience on oil making machine, we provide a comprehensive range of products
We are proud to guarantee that, with our strong technical background and communication capability, our sales/support engineers are able to answer your most complicated technical questions over the phone in English. That would save a lot of time for communication.
The following pictures show our factory and customers in our workshop.
6.Our service
Pre-sales service
1.Quick response
2.Detailed quotation
3.Professional production and transportation solution
After-sales service
1.Warranty policy one year from shipment
2. We will send you the replacement after received the broken part
3. Evaluate the customs risk and choose safest shipping company before shipping.
4. Follow status up time by time until the goods arrived.
7.Certification
8.FAQ
1.What's the warranty of the machine?
12 months free guarantee and life long standard paid service.
2.What is the raw material of your machinery?
Stainless steel or carbon steel.
3.When can I get the price?
Within 24 hours, if urgent ,please contact us directly.
4.How to ask the quotation?
Please inform us your oilseeds and your target capacity per day,then we will send our advices with equipment list to you at once.
5.Can we ask the oil press for different types of oil ?
Yes you can! But we recommend no more than 3 kinds of oils.
6.How large land to build the oil plant?
The land area required usually depends on the capacity of your plant. We can calculate the area needed and give you the plant designs.
7.How long will it take to get my products?
Generally, it depends on your capacity. If you just need single machine, it just needs 7-15 days. If you need the complete production line, we should negotiate the time.
8.Do you install the production line and train our stuffs for free?
Yes we do. We'll send professional installation engineers to help you install the equipment and train your workers freely.
