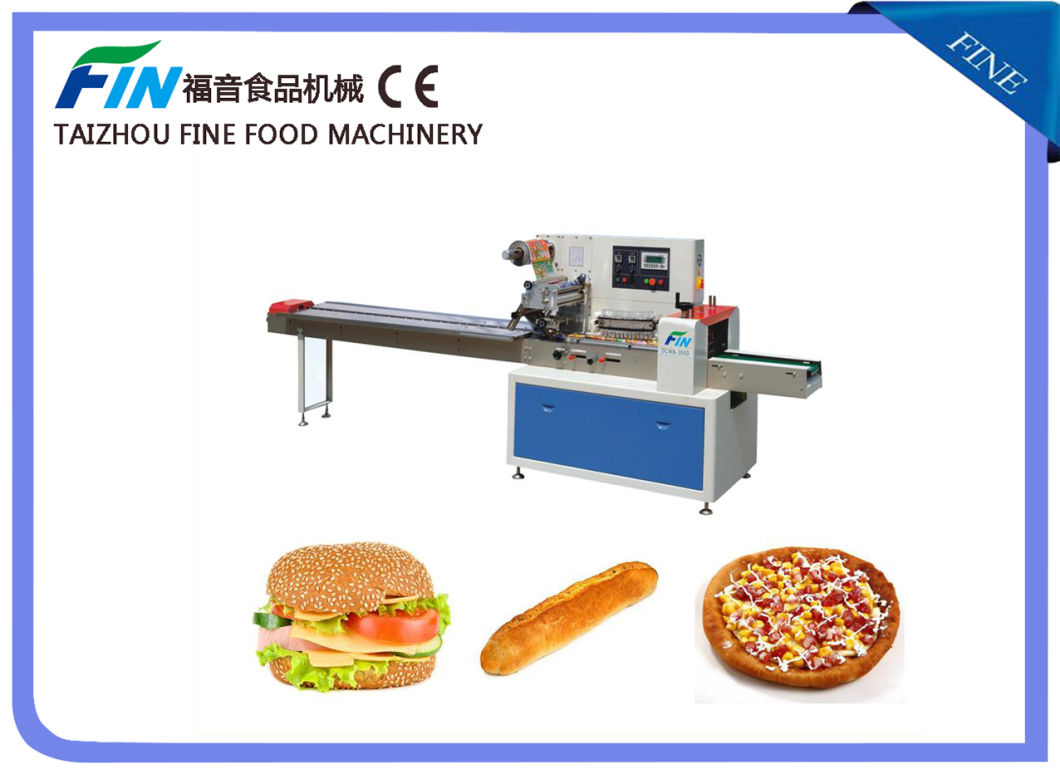

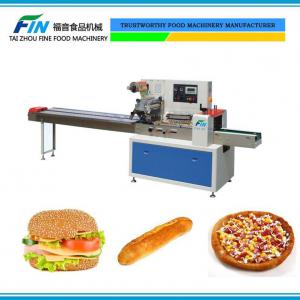

Rotary Pillow Food Packing Machine(upgrade)Trustworthy Food Packing Machine for Pillow Type
Applications
Suitable for Breads,Vegetables, Biscuits,Chocolate,Yolk Pie,Snacks,Food.
Main Features
1.Double frequency conversioncontrol, bag length can be set and cut in one step saving time and films.
2.Human-machine interface features easy and quick setting and operation
3. Self failure diagnosis , clear failure display.
4. High sensitivity photolelectric eye color tracking ,numerical input of cutting sealing position for extra accuracy.
5. Terminal sealing device, more beautiful bag shape, improving products level.
6. Positioned stop function,without sticking knife or wasting film..
7. Simple driving system, reliable working, convenient maintenance.
8. All control is realized through software,easy for function adjustting, and technical upgrade.
Specification
| Model(j ) | DCWB-250B | DCWB-250D | DCWB-250E | DCWB-250S | DCWB-320B | DCWB-320D |
| Film width () | Max.250mm | Max.180mm | Max.320mm | |||
| Bag length( ) | 65-190 or120-280mm | 90-220mm | 50-115mm | 45-90mm | 65-190or120-280mm | 90-220or 150-330mm |
| Bag width () | 30-110mm | 30-80mm | 50-160mm | |||
| Product height( ) | MAX.40mm | Max.5 | Max.35mm | Max.40mm | Max.55mm | |
| Film roll diameter | .320mmMax | |||||
| Packaging speed( ) | 40-230bag/min | 60-330bag/min | 40-230bag/min | |||
| Power( ) | 220V50/60Hz 2.4KW | 220V 50/60Hz 2.4KW | 220V 50/60Hz 2.6KW | |||
| Machine(weight) | About 700kg | About 800kg |
