China Inverted Type Pillow-Shape Packing Machine

Film Feeding from Below Type Automatic Horizontal Flow Packing MachineFilm enters the former from below the product. This ensures a smooth product transfer and secure product handling of multipack and flexible products, not possible on a typical

Technical Feature

  • Qingdao, China
  • 3 Sets / Month
  • T/T
  • Semi-Automatic
  • Cosmetics, Drinks, Skin Care Products, Fish, Meat
  • Forming Filling Sealing Machine
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~0

PRIMARY PARAMETERS

Model NO.
SWF-450
Material Type
Solid
Packaging
Bag Packing
Packaging Material
Film
Speed
30-150packs/Min
Color
Silver and Blue
Usage
Product Bag Packing
Packet Type
Pillow Shape Bag Packing
Keywords
Packing Machine
Trademark
sanweihe
Transport Package
Wooden Box Packing
Specification
5700*1050*1700mm
Origin
Qingdao China
HS Code
84224000

DETAIL DESCRIPTION

Film Feeding from Below Type Automatic Horizontal Flow Packing Machine

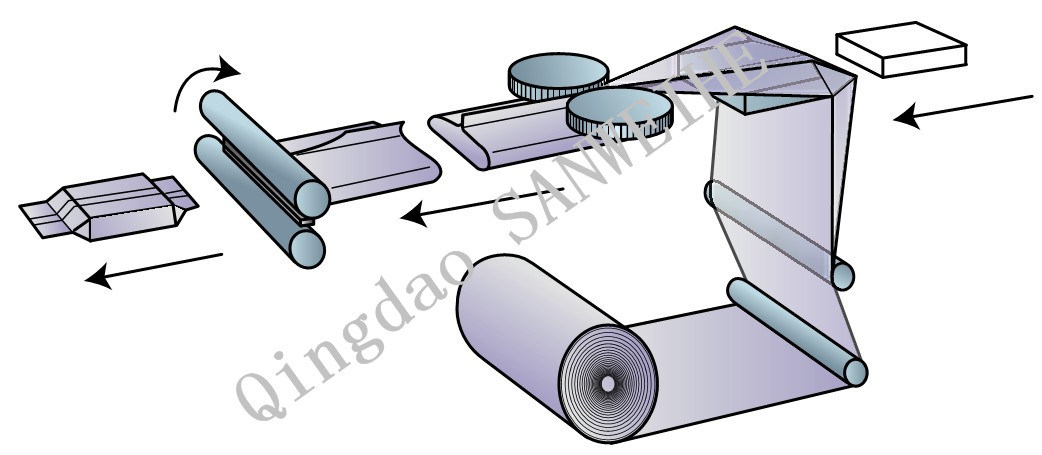

Film enters the former from below the product. This ensures a smooth product transfer and secure product handling of multipack and flexible products, not possible on a typical flow packing machine.



Application of packing machine:

Single Piece product packaging:

Bread, chocolate enrobed cheese bar, popsicles, cookies, waffles, trowels, cotton wool.



Group packaging:

Waffles, meat chops, bakery, soap, sponges, biscuit with tray etc.



Non standard products (customization):

Individual spoon, fork, knives, also suit for packing spoon, fork, knife, napkin, toothpick, etc.



Features of Pillow Type Automatic Packing Machine :

1.       Be controlled by double transducer, flexible cutting and setting of bag length, time and film saveable.
2.       Human-machine operation, convenient and quick parameter setting.
3.       Self diagnosis of failure function, clear failure display.
4.       High sensitivity photoelectric eye tracking color mark and digital input of cut position make the sealing and cutting more accurate.
5.       Separate PID control temperature, suitable for various packing materials.
6.       Stopping the machine in the selected position, no sticking to the knife and no waste packing film.
7.       Simple driving system, reliable working and convenient maintenance.
8.     Stainless steel product contact parts
9.     Easily exchangeable former

We have both the button controlled flow packing machine and the PLC touch screen controlled flow packing machine

China Inverted Type Pillow-Shape Packing Machine
China Inverted Type Pillow-Shape Packing Machine
Parameters of the  Pillow Type Automatic Packing Machine
Max width of film 450mm
Packaging range L:53~300mm, W:20~100mm, H:5~70mm
Packing speed 30-180Bags/min
Category of film Heat-melt-cut sealing film like PAPER/PE, OPP/PE, OPP/AL/PE, CPP/PE
Power of main motor 1.5KW
Power of electrical 2.5KW
Total power 4.6KW single phase 220V
Overall dimension L×W×H 5700×960mm×1480mm
Weight About 1000kg
