ZP-100 packaging samples:
Advantages of automatic packing machine
1.The bag length is automatically detected and set by the equipment without manual setting.
2.Simplified mechanical structure with dual-frequency converter,is easy to maintain,has little vibration,little wear and long life.
3.The main control circuit adopts the single chip microcomputer developed by our own company,displayed by touch screen and controlled by frequency converter.Perfect HMI makes the operation centralized and convenient .
4.Dual frequency converter is adopted to control packaging speed and bag length.Stepless shift and wide adjustable range make the machine match well with the former working procedure.
5.High sensitization electric eyes can follow the object automatically and accurately.

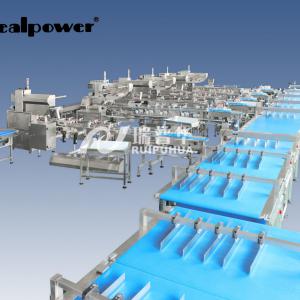

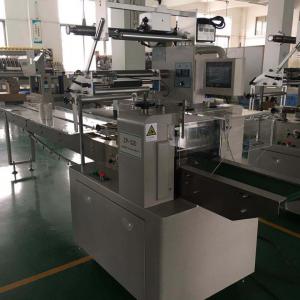

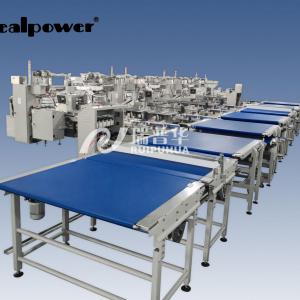

6.Independent temperature control for each sealer makes the appearance beautiful and firm,and suitable for various of flexbile packing material.Packaging machine picture:
Package of the machine:
Technical Parameters:
2.Simplified mechanical structure with dual-frequency converter,is easy to maintain,has little vibration,little wear and long life.
3.The main control circuit adopts the single chip microcomputer developed by our own company,displayed by touch screen and controlled by frequency converter.Perfect HMI makes the operation centralized and convenient .
4.Dual frequency converter is adopted to control packaging speed and bag length.Stepless shift and wide adjustable range make the machine match well with the former working procedure.
5.High sensitization electric eyes can follow the object automatically and accurately.
6.Independent temperature control for each sealer makes the appearance beautiful and firm,and suitable for various of flexbile packing material.Packaging machine picture:
Package of the machine:
Technical Parameters:
| Machine Model | ZP-100 |
| Packing speed | 35-150 bags/min |
| Bag size | L 65-160mm W 35-90mm H 5-35mm |
| Film width | 90-220mm |
| Packing material | OPP/CPP,PT/PE,KOP/CPP,ALU-FOIL |
| Packing Dimension | 4000*920*1600mm |
| Heat power | 2.1kw |
| Motor power | 0.55+0.75kw |
| Total power | 3.4kw |
| Overall weight | 550kg |
