30 Ton Maize Milling Equipment for Kenya

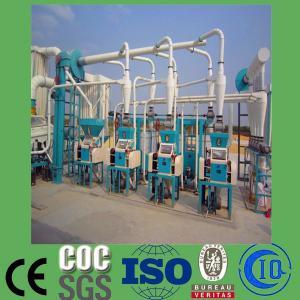

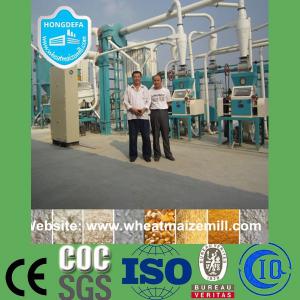

This is installed picture of 30ton maize flour mill, sifted corn flour mill in Nairobi Kenya.
Maize flour milling complete line produces good quality super white maize meal. This is installed picture of 30ton maize flour mill, sifted corn flour mill in Nairobi Kenya.
1-----Product Description of 30t/24h maize milling machine
30T/d maize meal grinding machine is small scale capacity milling machine, which processing maize 20T/24h.
The technical flow fo30T/24h is more advanced, it can use Japan Degerminator or American degerminator according to different useful of the germ.
HDFM30 can make high quality super white maize meal,breakfast meal,roller meal,very good for making Fufu,Ugali,Unga etc Staple Africa food
All Milling Line is PLC Controlling System
Touch screen control/Schneider electric components/high quality switch/standard cable connection
2-----About the 30t per 24h maize mill machine
1. CAPACITY: PROCESSING MAIZE 20T/24H sifted maize flour mill.
2. EXTRACTION RATE
1) Super maize meal: 60-78% maize germ and bran: 22%-40%
2) Special maize meal: 65%-80% maize germ and bran: 20%-35%
3.Workshop: (L×W×H): 30m×8m×6m

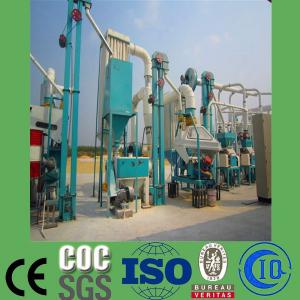

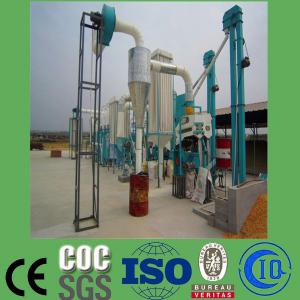

This is installed picture of 50ton maize flour mill, sifted corn flour mill in Lusaka/Zambia.
3-----Maize flour milling machine flow technical design:
1.Maize Cleaning system, maize cleaner and destoner
2.Maize moisture system:maize moisture damper and moisture bin
3.Maize Degerminating system:degerminator and aspirator
4.Maize milling system:roller stands and sifter
5.Packaging machine
6.Touch screen control system
7.Pipe,flange,bolt nuts etc

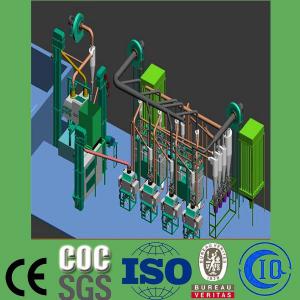

4------Technical Flow pictorial of maize milling machines / maize flour mill:
This is the commercial maize flour milling processing machine,It include four-step : cleaning--maize degerminating--milling--maize meal packing
Cleaning system:when buying the maize,normally the maize is very dirty in Africa countries.So before processing, need to cleaning first.In the maize there is many kind of impurity,like stone,iron,rope,plastic etc. So according this we use maize drum sifter/maize cleaner/maize destoner etc machines to cleaning the maize
Degerminating system:After cleaning the maize, before degerminating,first need the moisture the maize and let the maize sleep in the moisture bin for 2-10 hours according the different request, then go to the maize degerminator, the degerminator can scrub the maize skin from maize kernel and dislodge the germ from its cavity with the minimum reduction in size of broken fragments
Milling system:The process of manufacturing the products involves three fundamental sub-processes. Firstly, physically detaches the three components of the maize kernel from each other with as little dilution or mixing as possible. Secondly, sorts and classifies the detached particles into specific groups and the last, sizes and reduces the particles to the required granularity. The three components are then recombined as necessary depending on the type of finished product required. The aim of the process then, is to detach the bran and germ from the maize kernels with a minimum disintegration of either the endosperm or the bran/ germ casing. The pure endosperm is then gradually reduced in size to form products of different granularity, ranging from the relatively large pieces of samp to the very Fine maize flour.
Packing system: Maize flour packaging machine can packing with different kind of bags,like 1kg/2kg/5kg/10kg/25kg/50kg
30 Ton Maize Milling Equipment for Kenya
5----Contact me
If you need more detail design and list ,official quotation please contact us freely by email ,leave SMS on Whatsapp or call us anytime!
You will gain the quick reply within 12 to 24hours.
Contact person: Tony Yao
Mobile phone: +8618330112982
Nairobi Kenya Running maize flour mill for sale of 20T/24h
Lusaka Zambia Running cprn milling equipment for sale of 30T/24h
Kinshasa RD Congo Running corn flour milling machinery for sale of 24T/24h
Kampala Uganda Running maize flour mill for sale of 30T/24h
