| Model | GH-6030 | SF-6040E |
| Power | 1kw | 18kw |
| Power Supply | AC220V 1/3PH 50/60Hz | AC220/380V 3PH 50/60Hz |
| Max Packing Size L×W×H | 500×300×300mm | 1500×500×300mm |
| Tunnel Size L×W×H | / | 1800×600×400mm |
| Blade Length | 670mm | / |
| Air Temperature | 0-300ºC | 0-300ºC |
| Table Height | 820±50mm | 820±50mm |
| Packing Speed | 5-8m/min. | 0-15m/min |
| External Air Source | 6-8kg/cm2 | / |
| Shrink Film | PE | PE |
| Machine Size L×W×H | 1000×850×1991mm | 2800×1050×1750mm |
| Packaging Size L×W×H | 1050×900×2141mm | 2850×1100×1900mm |
| G./N. Weight | 350/300kgs | 625/565kgs |
- GH-6030 using imported motor makes it more stable during pushing and sealing;
- A specially designed sealing knife makes sure solid sealing line, no cracking and anti-stick;
- Usage of imported electrical components reduces failure during the using process;
- Concealed motor device greatly increases the convenience of operation. Back end pressing device ensures that the light products will not move;
- The front fixing frame can be adjusted, so it can pack different shapes products;
- SF-6040E using imported double air circulation motors, so that the hot air in the oven can spread more evenly to get a good shrink effect;
- Using solid steel rod covered by imported silicone tubes, chain conveying, durable silicone; SF-6040E can add density axis function which specially designed for small volume products;
- The use of frequency inverter controls transmission speed which has the function of infinitive speed;

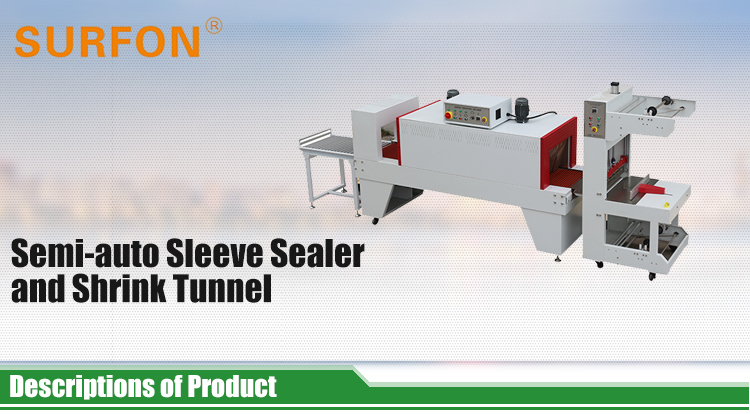

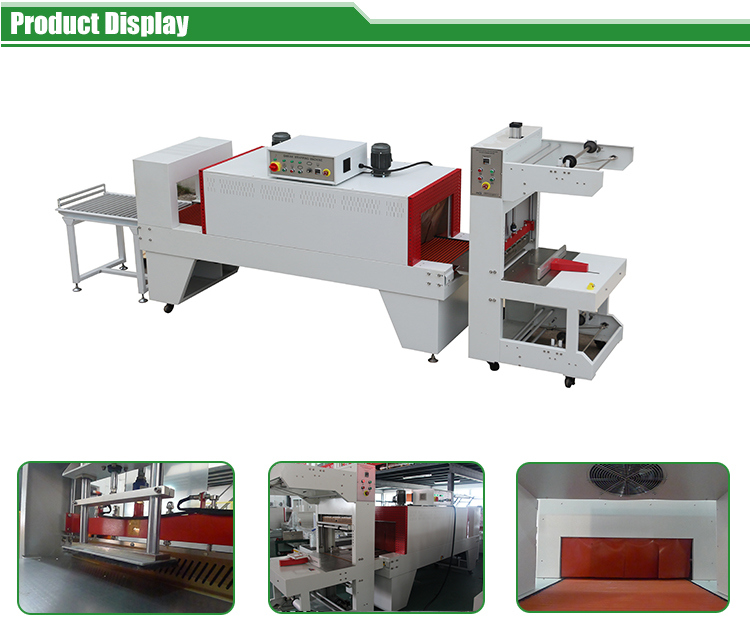

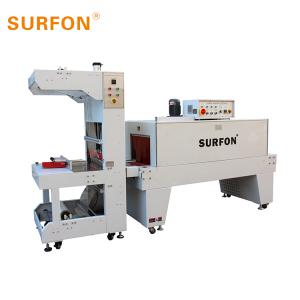

- GH-6030 + SF-6040E is an economical machine in GH Series sleeve shrink packaging machine. The operation is simple. Just pressing the pusher button, the machine automatically seal then the products enter into shrink packaging machine. The machine mainly uses PE shrink film;

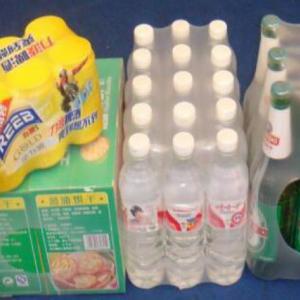

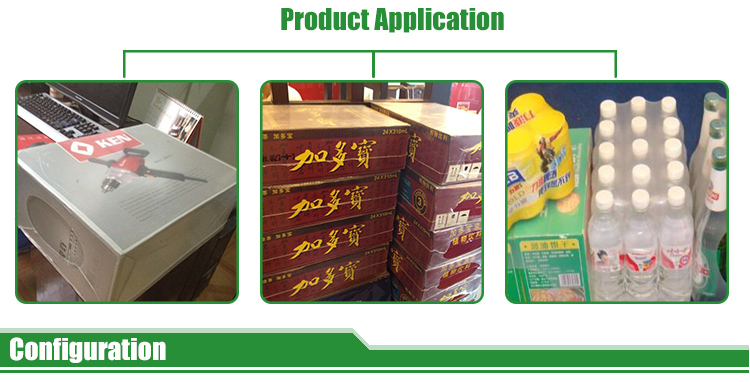

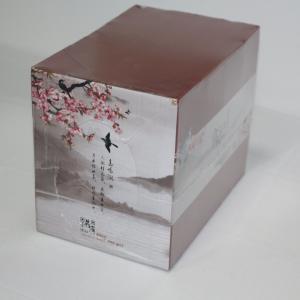

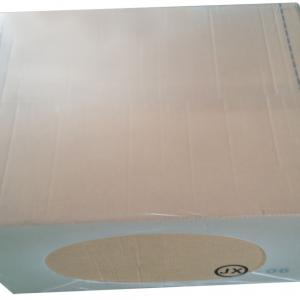

- The machine is widely used in drinks, daily chemical, building materials, food with paper tray or without paper tray etc. And it also can be used for electrical appliances, auto parts, furniture, flooring and other individual or group shrink wrap.
| Sealer Parts | Brand | Country |
| Cylinder | AirTAC | Taiwan |
| Solenoid Valve | AirTAC | Taiwan |
| PLC | Siemens | Germany |
| Intermediate Relay | SIEMENS | Germany |
| Temperature Controller | Autonics | Korea |
| Time Relay | Schneider | France |
| Electrical Breaker | Schneider | France |
| Overload Relay | Schneider | France |
| AC Contactor | Schneider | France |
| Frequency Inverter | Schneider | France |
| Shrink Tunnel | Brand | Country |
| Gear Motor | GPG | Taiwan |
| Circulation Motor | SURFON | Taiwan |
| Intermediate Relay | Siemens | Germany |
| Temperature Controller | Autonics | Korea |
| Electrical Breaker | Schneider | France |
| Overload Relay | Schneider | France |
| AC Contactor | Schneider | France |
| Frequency Inverter | Schneider | France |
| Video Link | Product |
| https://youtu.be/l7EFd_y34yQ | 12 white bottles |
| https://youtu.be/rwQq9SuA0kg | Aerosol can |
| https://youtu.be/Pj6k-fK44DE | Beer |
| https://youtu.be/bqiy8Aj4p7s | Rio cocktail beer |
| https://youtu.be/32byT5l81iM | Big Mineral water bottle |
| https://youtu.be/BsRk0X-uCdQ | Foam boxes |
| https://youtu.be/Fp5X4a6foIY | Detergent |
| https://youtu.be/UyAbWXlia4M | Carton boxes |
| https://youtu.be/ieh85HgMJ80 | Big Carton boxes |
| https://youtu.be/2d-bKQR9dOE | box |
| https://youtu.be/6VZNE2zDY68 | POF Film boxes |
| https://youtu.be/mew9W7S66NI | Four boxes |
| https://youtu.be/CiAlToCypvA | Egg tray |
| https://youtu.be/q3u1iPXgf9E | 5 red wire |
| https://youtu.be/V6YyRdXU0Kk | install the film |
| https://www.youtube.com/watch?v=DhcugXu1TFY | Foam board Demo video |
| https://www.youtube.com/watch?v=0OQvw86eiJg | Black wire ( blue machine) |
